EXOS. jumbo toilet roll holder EXOS670X

EXOS. jumbo toilet roll holder EXOS670X

KWC Group Management AG

Archived

EXOS. jumbo toilet roll holder EXOS670X

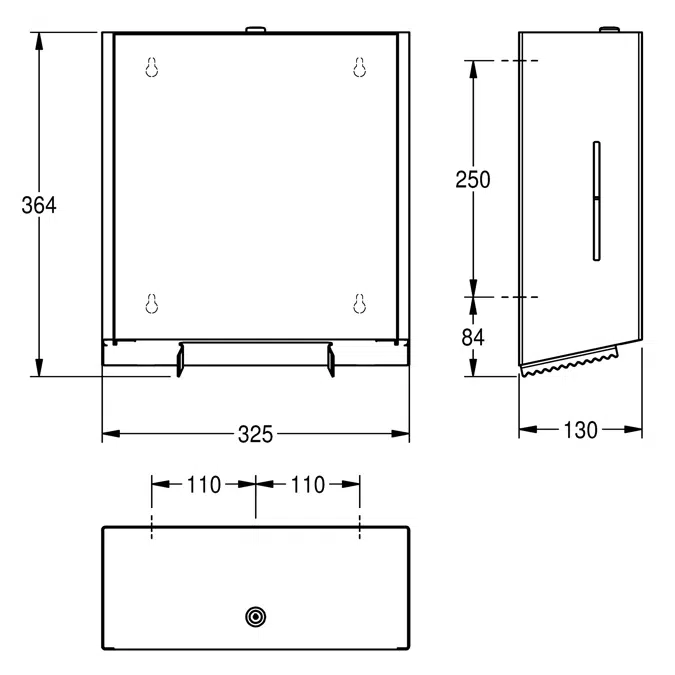

Jumbo toilet roll holder for wall mounting, chromium nickel steel, with satin-finish and InoxPlus surface refinement for the reduction of finger marks making it easier to clean. Material thickness 1.2 mm, closed casing with inspection windows on the side, paper dispensed over two serrated tear-off edges, cylinder lock with Franke standard key, for one jumbo roll with a maximum diameter of 280 mm and a tube measuring 40 mm, includes mounting materials. Dimensions 325 x 364 x 130 mm (W x H x D)

Specification

Lock Key-lock
Material code 1.4301 Chrome Nickel steel V2A
Overall depth 130.00 mm
Overall height 364.00 mm
Overall width 325.00 mm
Type of mounting Wall mounting
Filling quantity 1.00000
Filling quantity uom Rolls
Surface treatment InoxPlus (anti fingerprint)
Maximum depth/diameter of consumable 295.00 mm
Maximum width of consumable 105.00 mm
Spindle Yes

Technical specification

Unique ref.2030028245
Product familyAccessories
Product groupWC-roll holders
TypeObject (single object)
Date of publishing2021-09-07
Edition number1
Height (mm)364
Width (mm)325
Depth (mm)130

Links

Product urlhttps://kwc-professional.com/en/exos670x-jumbo-roll-holder_p2030028245

Related

Material mainStainless steel
Designed inUnited Arab Emirates
Manufactured inUnited Arab Emirates
Weight Net (Kg)4.4

Classification

BIMobject CategorySanitary - Toilet Accessories
Uniclass 2015 CodePr_40_20_76_88
Uniclass 2015 DescriptionToilet roll holders
