CLEANET RIVA Shower toilet rimless, wall-hung, with remote control, with seat and cover
| Unique ref.: | 820691 |
|---|---|
| Brand: | LAUFEN |
| Product family: | CLEANET RIVA |
| Product group: | WCs |
| Width (mm): | 355 |
| Height (mm): | 415 |
| Depth (mm): | 600 |
| Date of publishing: | 2016-07-14 |
| Edition number: | 1 |
| Type: | Object (single object) |
Downloads
-
3ds
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover.3ds
-
ArchiCAD
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover.gsm
-
AutoCAD
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover__2d.dwg
-
AutoCAD
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover.dwg
-
Ifc
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover.ifc
-
Revit
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover.rfa
-
Sketchup
cleanet_riva_shower_toilet_rimless_wall_hung_with_remote_control_with_seat_and_cover.skp
The Cleanet Riva shower toilet features an integrated, high-quality ceramic design and technically sophisticated, user-friendly solutions.

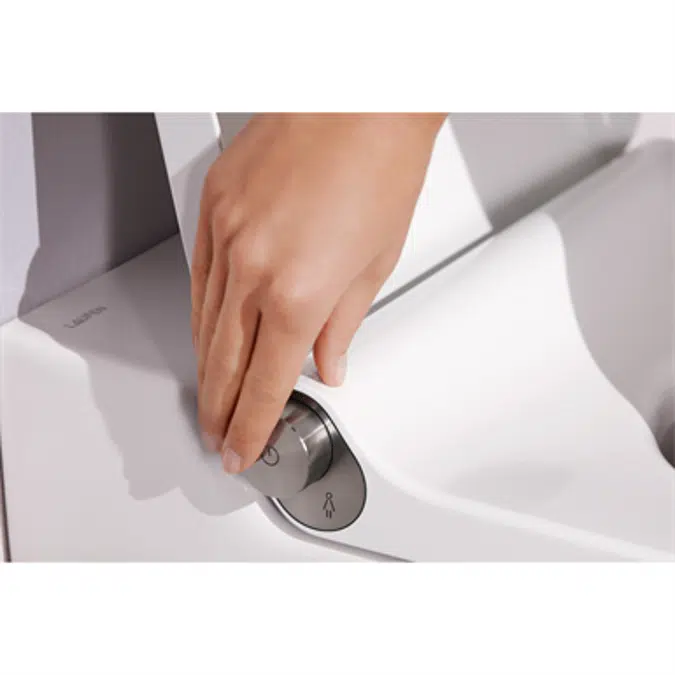

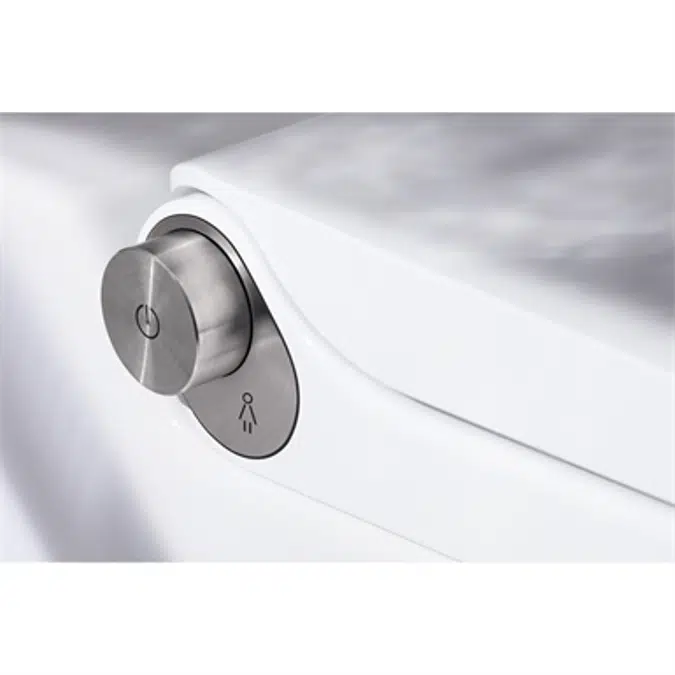

Laufen has successfully integrated all the technology in the closed ceramic body to create a classic aesthetic for beautiful bathroom interiors. The key feature of the premium toilet is its wide range of intuitive shower functions. The Cleanet Riva uses a clever operating concept on two levels: In everyday use, the shower toilet is operated by pushing or twisting the stainless steel rotary button at the side. The user can also select the basic or detailed settings using the touch screen remote control.
The Cleanet Riva is the only shower toilet to feature a multi-stage hygiene concept in which the whole water circulation system is also thermally cleaned at regular intervals. For easy cleaning of the toilet, the design is joint-free and the ceramic has been treated with dirt-repellent LCC. The seat and lid also feature a quick-release function. The Cleanet Riva flushes powerfully for a clean finish, making a flushing rim and tunnel unnecessary.
Laufen has successfully integrated all the technology in the closed ceramic body to create a classic aesthetic for beautiful bathroom interiors. The key feature of the premium toilet is its wide range of intuitive shower functions. The Cleanet Riva uses a clever operating concept on two levels: In everyday use, the shower toilet is operated by pushing or twisting the stainless steel rotary button at the side. The user can also select the basic or detailed settings using the touch screen remote control.
The Cleanet Riva is the only shower toilet to feature a multi-stage hygiene concept in which the whole water circulation system is also thermally cleaned at regular intervals. For easy cleaning of the toilet, the design is joint-free and the ceramic has been treated with dirt-repellent LCC. The seat and lid also feature a quick-release function. The Cleanet Riva flushes powerfully for a clean finish, making a flushing rim and tunnel unnecessary.
Shower Toilet rimless, wall-hung, washdown Laufen CLEANET RIVA
toilet pan sanitary ceramic, with ceramic surface refinement LCC
WC seat and cover Duroplast, removable, with lowering system
CE, IPX4, EN 13077, SVGW, Drinking water standards EN 1717
min. 4.5/3-l-flush, dimensions 395 x 600 x 505 mm, concealed fixation
Special feature: Touch screen remote control, rear shower and lady
shower, with adjustable water pressure, temperature and nozzle position,
oscillating and pulsating cleaning mode, integrated self cleaning nozzle
before and after every use, integrated odour filter, light with signaling
feature, programmable user profiles, water supply and power supply
concealed
toilet pan sanitary ceramic, with ceramic surface refinement LCC
WC seat and cover Duroplast, removable, with lowering system
CE, IPX4, EN 13077, SVGW, Drinking water standards EN 1717
min. 4.5/3-l-flush, dimensions 395 x 600 x 505 mm, concealed fixation
Special feature: Touch screen remote control, rear shower and lady
shower, with adjustable water pressure, temperature and nozzle position,
oscillating and pulsating cleaning mode, integrated self cleaning nozzle
before and after every use, integrated odour filter, light with signaling
feature, programmable user profiles, water supply and power supply
concealed
| Product url: | http://www.laufen.ch/en/products/product-finder/toilets/shower-toilet/clea... |
|---|---|
| Installation instructions: | http://www.laufen.ch/ResourceServlet/resources/getMainResource?idObject={1... |
| COBie Product Data Sheet: | |
| Product certification: | http://www.laufen.ch/en/service/certificates |
| Technical description: | http://www.laufen.ch/ResourceServlet/resources/getZip?idObject={C6BA00B7-6... |
| Instruction video: | https://www.youtube.com/watch?v=rr1lBCPeE70 |
| GTIN code: | 76-12738-36304-8 |
The Qr code includes the static URL below and will bring you back to this page if scanned by a device like iPhone or smartphone
https://www.bimobject.com/en-us/laufen/product/820691
| Material main: | Vitreous china |
|---|---|
| Material secondary: | Electronic & optical components |
| Designed in: | Switzerland |
| Manufactured in: | Switzerland |
| Weight Net (Kg): | 40 |
| BIMobject Category: | Sanitary - Toilets |
|---|---|
| IFC classification: | Sanitary Terminal |
| UNSPSC name: | Toilets |
| UNSPSC code: | 30181505 |
| Uniclass 1.4 Code: | L7216 |
| Uniclass 1.4 Description: | Toilets |
| Uniclass 2.0 Code: | SS-35-65-90-97 |
| Uniclass 2.0 Description: | Wc Systems |
| NBS Reference Code: | 35-65-90-97 |
| NBS Reference Description: | Wc Systems |
