Metal enclosures XL³ 800 - IP 55 - 24 mod/row - 1095x700x225 mm

Metal enclosures XL³ 800 - IP 55 - 24 mod/row - 1095x700x225 mm

Distribution enclosures XL³ 800 - IP 55 with door IK 08 - Metal enclosures RAL 7035,plinths RAL 7004 - Can take devices up to 630 A - Fireproof to 750°C/5 s in accordance with IEC 60695-2-1 - For installation in public buildings - Capacity: 24 and 36 modules per row - Can be joined horizontally - For industrial and urban indoor use - For further information please contact us : https://www.legrand.fr/pro/nous-contacter

Specification

Metal enclosures - Supplied without side panels Width 700 mm - 24 modules per row - Height : 1095 mm - Faceplate height : 1000 mm - Width external : 700 mm - Width usable : 600 mm - Depth : 225 mm

Technical specification

Unique ref.LG-XL3_800-Metal
TypeObject (single object)
Date of publishing2018-04-30
Edition number1
Width (mm)705
Depth (mm)225

Links

Product urlhttps://www.legrand.fr/reference/020451/pro
Installation instructionshttps://www.legrand.fr/sites/default/files/cahieratelierxl3-400_800.pdf
Instruction videohttps://www.youtube.com/watch?v=Fe8XaLjOa1M&t=58s
Product certificationhttp://docdif.fr.grpleg.com/general/MEDIAGRP/CERTIF/LGAOXJZXFK.PDF
Technical descriptionhttp://docdif.fr.grpleg.com/general/MEDIAGRP/NP-FT-GT/F00253EN-00.pdf

Related

Material mainGalvanized steel
Weight Net (Kg)28100

Classification

BIMobject CategoryElectrical - Distribution
IFC classificationElectric Distribution
ETIM CodeEG000011
ETIM NameCabinet enclosures
UNSPSC nameElectrical equipment and components and supplies
UNSPSC code3912
Uniclass 2015 CodePr_60_70_22_11
Uniclass 2015 DescriptionCable distribution cabinets
CSI MasterFormat 2014 Code26 27 16
CSI MasterFormat 2014 TitleElectrical Cabinets and Enclosures
OmniClass Number23-35 31 27
OmniClass TitlePower Distribution Units
CSI UniFormat II CodeD5010
CSI UniFormat II TitleElectrical Service and Distribution

Region availability

Europe
France

Similar products

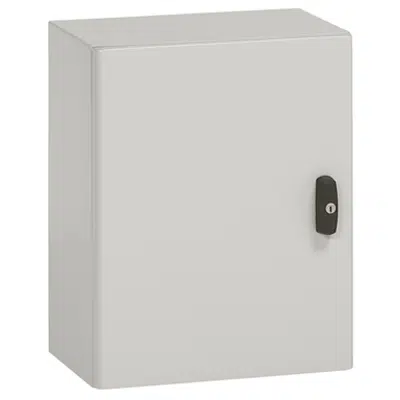

Image for Atlantic IP66 waterproof enclosures - IK10 - RAL 7035 vertical version 300x200x160 mm to 1400x800x400mm
