LVC Model - TM-5100-LF - Emergency Mixing Valve for Dedicated Distribution Supply

Leonard Valve Company

Archived

LVC Model - TM-5100-LF - Emergency Mixing Valve for Dedicated Distribution Supply

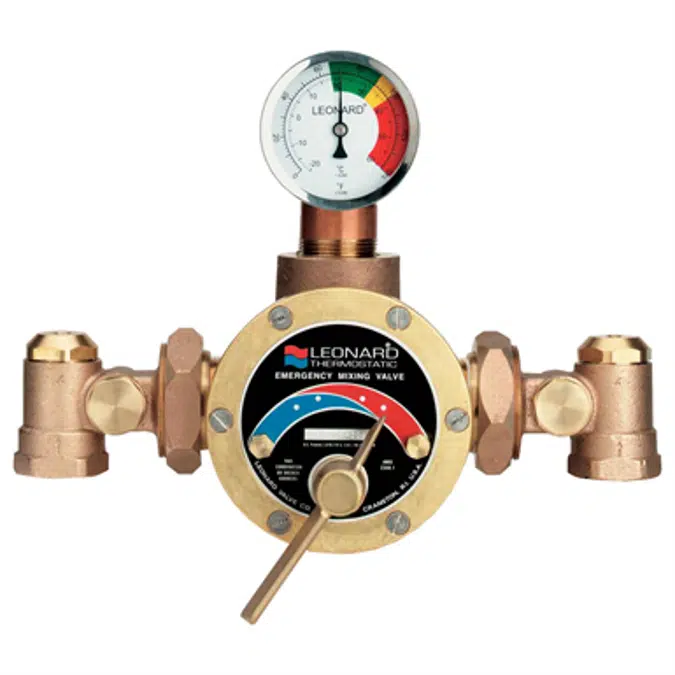

DURA-trol® solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature and pressure fluctuations. DURA trol is highly responsive and cannot be damaged by extremes in temperature. Thermostatic Mixing Valve can be set to the correct temperature for the application. Locking type temperature regulator to prevent accidental movement set for 85ºF (29ºC) Recommended Hot Inlet Temperature 140°F Mixing valve will close down on failure of cold water supply. Mixing Valve with special internal cold water bypass capable of 40 GPM (151 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply. Adjustable high temperature limit stop * set for 90ºF (32ºC), Full 1 ¼” top or bottom inlets and 1 ½” top outlet. Integral wall support, Dial thermometer (range 0 to 140°F, -10 to 60°C), rough bronze finish, union angle checkstops on inlets.

Technical specification

Unique ref.tm-5100-lf
Product familyMixing Valves for Liquid Services
Product groupEmergency Mixing Valves
TypeObject (single object)
Date of publishing2016-02-03
Edition number1

Links

Product urlhttp://leonardvalve.com/products/lines/128/product/4688
Installation instructionshttp://www.leonardvalve.com/products/lines/128/product/4688
Technical descriptionhttp://www.leonardvalve.com/products/lines/128/product/4688

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Valves
