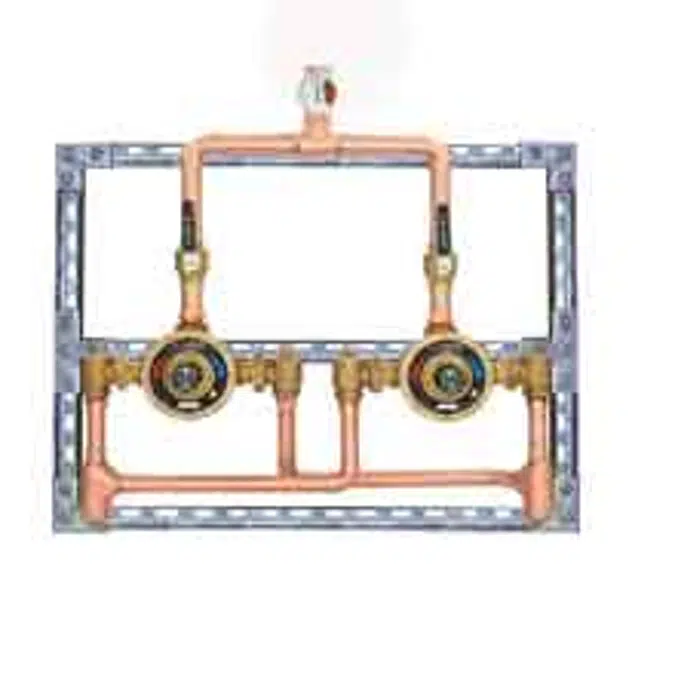

LVC Model XL-200-2PS-LF - XL Series, High Capacity, Master Mixing Valve featuring a Wax Element

Unique ref.: xl-200-2ps-lf
Brand: Leonard Valve Company
Product family: Mixing Valves for Liquid Services
Product group: XL Series, High Capacity Valves
Date of publishing: 2016-02-03
Edition number: 1
Type: Object (single object)
Download (2)
>Minimum Flow = 10 gpm - Maximum Flow = 416 gpm
>Two - XL-200-LF-BDT-RF Thermostatic Mixing Valves
>Pre-Piped into 3" Inlet x 3" Outlet Manifold
>Ball Valve Shut-offs on each XL-200 Valve Outlet
>Dial Thermometer on Common Outlet
>Entire Assembly is Mounted on Strut
>Eco-Mix Certified Lead Free Construction


Material main:
Material secondary:
Designed in: United States
Manufactured in: United States

BIMobject Category: Plumbing - Valves
This product is available in:
North America
  • Canada
  • Mexico
  • United States

BIMobject SEEK Properties

Plumbing - Valves

Name Value
Connection Type Solder

Leonard Valve Company

Properties

Name Value
Weight 250 lbs
Connection Size of Inlets 3"
Connection Size of Outlet 3"
Maximum Flow Rate 416 GPM
Valve and Assembly Dimensions 49"W x 40"H
Minimum Flow Rate 5 GPM
Valve Body Material Cast Bronze
Valve Finish Rough Bronze | Chrome Plated
