Martin

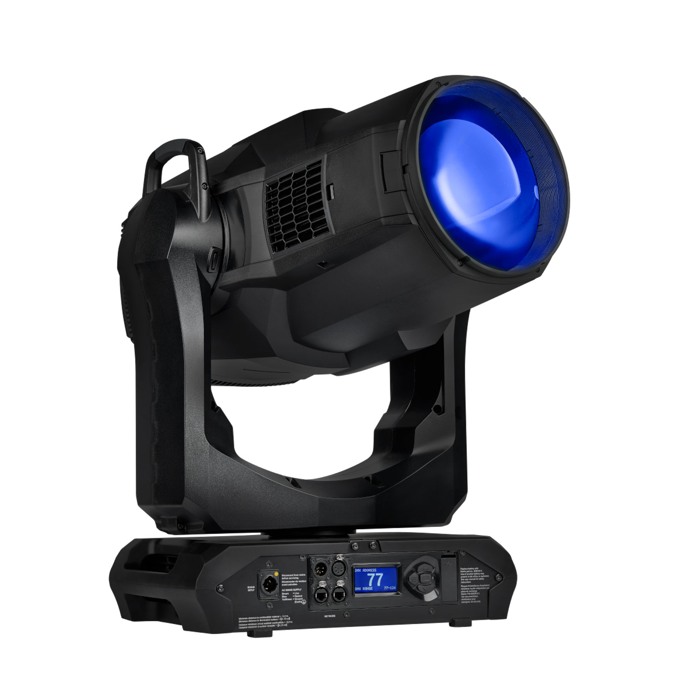

MAC Ultra Wash, 1150 W High Output LED Moving Head Wash

The MAC Ultra Wash is a colossal return to everything that an incredible wash light should be. Pure and simple in concept, it’s a bold, no-nonsense workhorse and the brightest wash we’ve ever developed. Via it’s 1150 W, 6000 K proprietary LED light engine, the MAC Ultra Wash delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features incredibly fast 1:10 zoom range.

Its 50,000+ hour light engine is the latest in a long line of Martin feats of innovation. No matter what the application, you can reliably count on consistent quality of light and output - show after show for many years to come. The MAC Ultra Wash also includes a powerful feature set, including uniform color mixing, variable CTO, additional color and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing.

Ideal for touring, concerts, TV shows and performing arts, the MAC Ultra Wash supports the broader production market all the way up to the most demanding stage lighting events. Martin set the standard for managing the ratio of weight, size, and power and the MAC Ultra Wash surges ahead with even superior performance.

When it comes to delivering drop-dead wash light performance and workhorse reliability, nothing comes remotely close. MAC Ultra Wash exceeds the boundaries of design as an undeniable, class-leading fixture that sets a steep bar on wash light innovation.

Specification
  • FEATURES

    LIGHT SOURCE

    • 1150 W proprietary LED light engine
    • 84 x 20 W white LEDs
    • Minimum LED lifetime: >50,000 hours (see specs for further details)

    PHOTOMETRIC DATA

    • Light Engine Luminous Output: 90,000 lumens
    • Fixture Luminous Output: 63,500 lumens
    • Peak Luminous Intensity: 4,500,000 cd
    • CCT: 6000 K (+/- 250 K)

    OPTICS

    • 220 mm Front Lens
    • 1:10 zoom range - 5° - 47°

    DYNAMIC EFFECTS

    • 0 - 100% continuous dimming and strobe effects
    • Choice of four dimming curves
    • CMY color mixing
    • Color temperature control - 6000-2850 K
    • Color wheel with six interchangeable dichroic filters, including a Spectral Enhancement Filter
    • 1:10 Zoom (hyper zoom); 1:7 Zoom (native zoom)
    • Motorized frost
    • Iris
    • Variable edge control
    • Pan: 540°
    • Tilt: 268°
    • P3 videomapping of fixture color and/or intensity
    • Pre-programmed effects: Two ranges of pre-programmed FX
Technical specification
  • Unique ref.mac-ultra-wash
  • Collection setAutomated Lights
  • CollectionLED
  • TypeObject (single object)
  • Date of publishing2021-09-08
  • Edition number1
Related
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Lighting
  • IFC classificationLight Fixture
  • UNSPSC nameLighting Fixtures and Accessories
  • UNSPSC code3911
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 50 00
  • CSI MasterFormat 2014 TitleLighting
  • OmniClass TitleLighting Fixtures
  • OmniClass Number23-35 47 11
  • CSI UniFormat II CodeD5020
  • CSI UniFormat II TitleLighting & Branch Wiring
