Parking interm. deck trafficable WP system - MasterSeal Traffic 2272

Specification

Specification

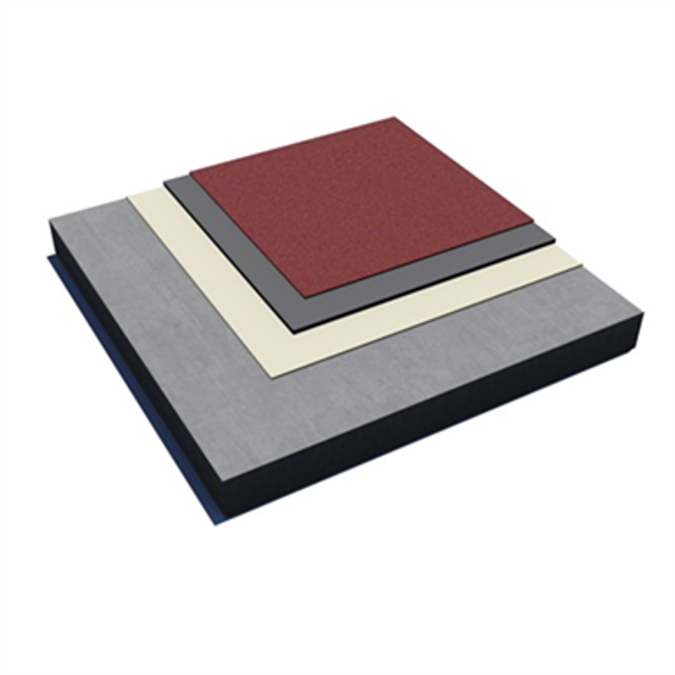

• Application of MasterSeal Traffic 2272 system from Master Builders Solutions [country] (or analogous) including primer, wear coat and topcoat with a minimum thickness of the system of 3,9 mm. Required properties/approvals: Capillary water absorption (EN 1062-3): less than 0.1 kg/m² · h0.5 Permeability to water vapour (EN ISO 7783-1; EN ISO 7783-2): Class III Permeability to carbon dioxide (EN 1062-6): Sd > 50 Abrasion resistance (EN ISO 5470-1): less than 3000 mg Impact resistance (EN ISO 6271-1): ≥ 4 Nm Adhesion by pull-off test (EN 1542): > 2,0 N/mm Reaction to fire (EN 13501-1): Bfl - s1 Skid resistance (EN 13036-4): Class III OS8 according to RILI SIB 2001 CE mark according to EN 1504-2 and EN13813

Technical specification

Technical specification

• Unique ref.MasterSeal_Traffic_2272
• Collection setMasterSeal® - Master Builders Solutions
• CollectionVehicular Traffic Waterproofing Deck Coatings
• TypeObject (single object)
• Date of publishing2018-03-27
• Edition number1

Links

Links

• Product urlhttps://www.master-builders-solutions.com/en-gb/solutions/for-parking-decks
• Installation instructionshttps://www.master-builders-solutions.com
• Instruction videohttps://www.youtube.com/channel/UCmliX4XCw0M_G4GUjNumU3w
• Product certificationhttps://www.master-builders-solutions.com
• Technical descriptionhttps://www.master-builders-solutions.com

Related

Related

• Material main2C Polyurethane

Classification

Classification

• BIMobject CategoryConstruction Materials - Waterproofing & Membranes
• IFC classificationMaterial
• Uniclass 2015 CodePr_35_31_68_64
• Uniclass 2015 DescriptionPolyurethane (PUR) waterproof coatings
• CSI MasterFormat 2014 Code07 14 00
• CSI MasterFormat 2014 TitleFluid-Applied Waterproofing
• OmniClass TitleWaterproof Traffic Coatings
• OmniClass Number23-13 25 17 23
