PME 2050 E CONT

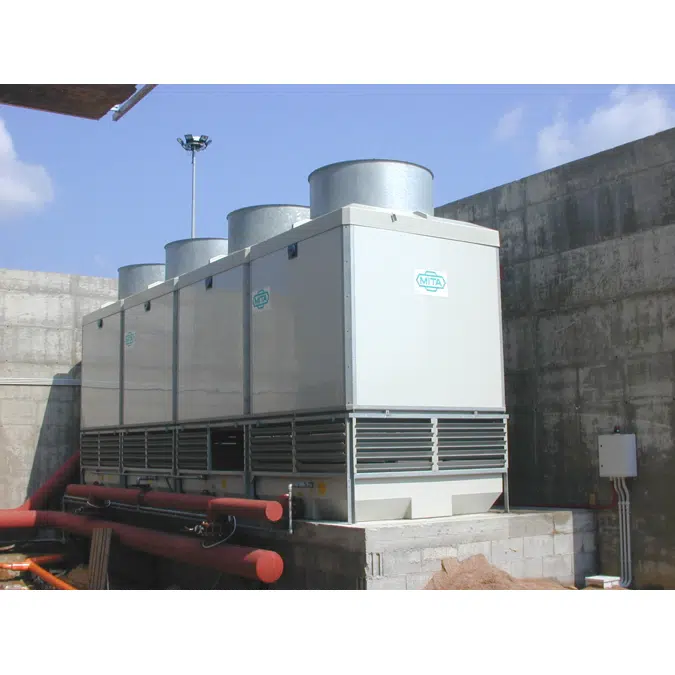

A light and non-corrodible open-circuit evaporative cooling tower: • Dimensions suitable for container transport. • Easy accessibility. thanks to completely removable walls. • Certificated perfomances with K12 version, primarily for the HVAC industry. • Limited noise levels. Sound reducing solutions on customer request. • Efficiency, optimal consumption and quick payback thanks to a pre-selection performed together with the client, based on their project requirement. • Industry 4.0. Possibility of control, monitoring and data collection on company management system.

Specification

- Dimensions suitable for container transport.
- Axial motor-fan with direct coupling, low installed power, low noise levels.
- Support structure in hot dip galvanized steel after fabrication.
- Distribution system in PVC or PP equipped with wide non-clogging PP spray nozzles.
- Fill pack with different kinds of air/water channels, suitable for the use with different water types.
- Certified PP drift eliminators (entrainment 0.01%).
- Tank with sloping base entirely made of fibreglass.
- Capacity: from 860 kW to 2.6MW (indicative capacity referring to a machine, thermal gradient 5°C).
