Art Storage 4-Post Shelving

4-Post Art Storage Rack

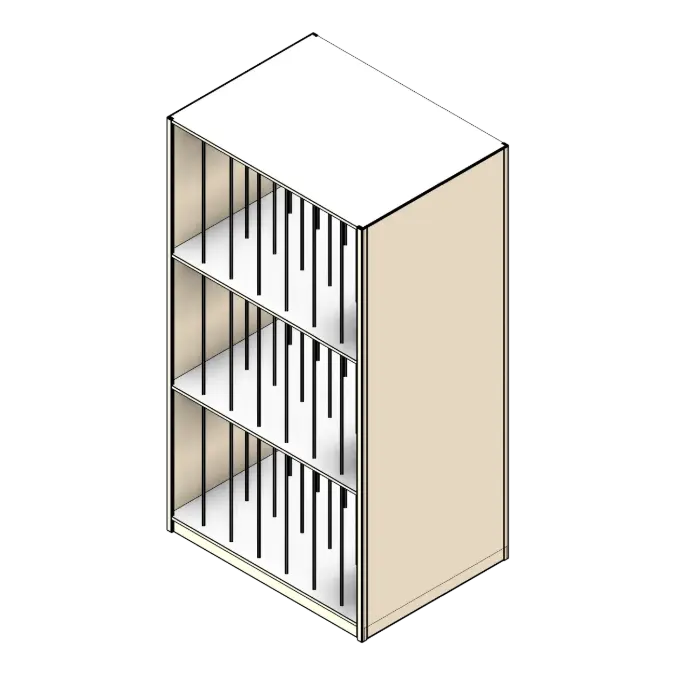

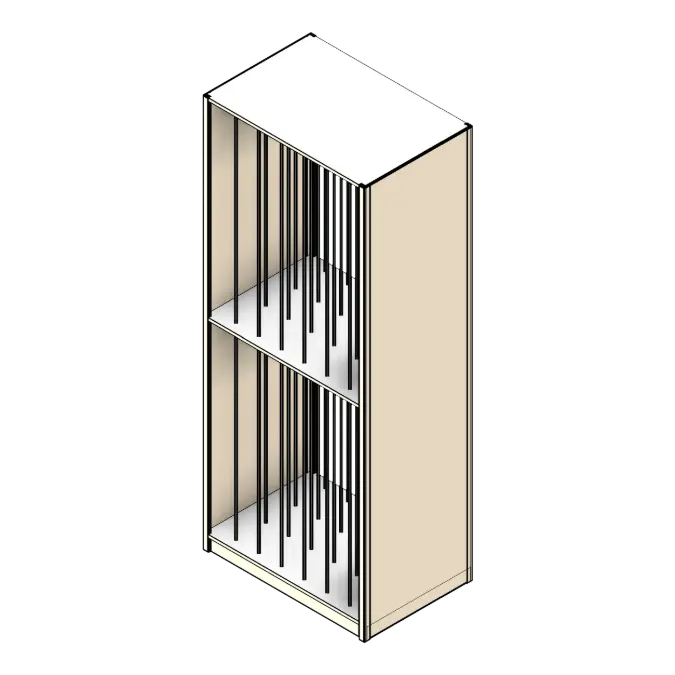

Closed 4-post shelving unit with vertical rods art/frame support rods.

Standard sizes
Widths: 30", 36", 42", 48"
Depths: 24", 30", 36"
Heights: 76", 88", 97", 121"

Ideal for storing art or other flat media

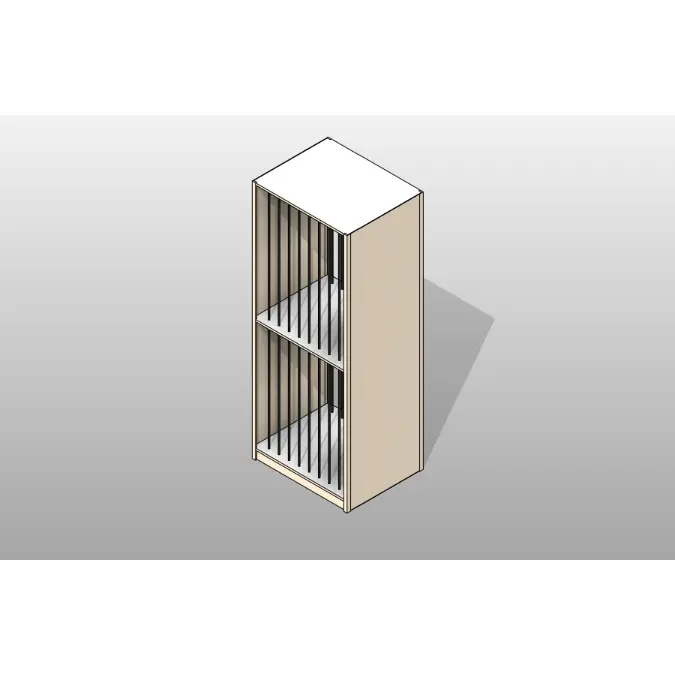

Includes two shelves

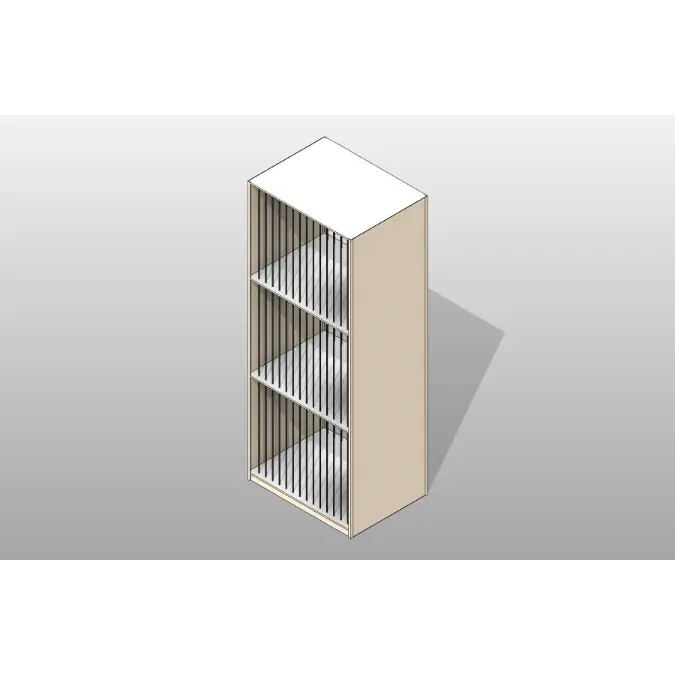

121" tall units include 3 equally-spaced shelves
Additional shelves available to order
Holds up to 550 pounds per shelf

This 4-Post unit has been specially configured for storing art or other flat media. Use the rods in groups of 4 to safely and efficiently store picture frames up to 550 pounds per shelf (actual capacity varies based on selected width and depth). Ideal for use in museums, educational, and corporate settings, this art rack will be sure your precious works are protected. Use ENTER_Width and ENTER_Depth to select overall dimensions. The number of rods will automatically adjust to the necessary number and spacing based on dimensions. All units contain two shelves except for 121" tall racks which come with 3 equally-spaced shelves - additional shelves available on order.

Specification

UprightsFormed from steel sheet to formed angles for end supports. Uprights have keyhole slots on inner wall only. Provide with sheet steel panels full height and depth of end uprights. Shelves and SupportsFormed from sheet steel with flanges on all sides and return hem on front and back flanges. Ends are formed to clear inside of upright offset panels. Shelves are independently adjustable. Shelf supports are formed from heavy gauge steel sheet with four solid steel shoulder rivets, two per ear, that interlock with inner wall of uprights.Nominal Shelf Dimensions
- Shelf Edge Vertical Profile: 3/4 inch (19MM) maximum
- Vertical Adjustment Increment: 1-1/2 inches (38MM)
- Width Of Intermediate Uprights: 2 inches (51MM)
- Clearance Between Uprights: Nominal shelf section width minus 2 inches (51MM)
- Levelness of Completed Shelf Units: Maximum 1/8 inch (3.2MM) between bottom shelf and canopy top, measured along the edge of any upright in any direction
Accessories
- Threaded support rods, used in groups of 4 to support art frames.
FinishesPaint finish.

Technical specification

Unique ref.SSG_Shelving_4-Post_Art_PCS
Product familyPublic Safety
Product groupWeapon Storage, Lockers, Workstations, Mobile Shelving and Detention
TypeObject (single object)
Date of publishing2021-07-10
Edition number1

Links

Product urlhttps://fetchbim.com/product/415/ssg-shelving-4-post-art-pcs
Technical descriptionhttps://app.fetchbim.com/Family/56dc9aab-a8eb-46ca-b954-4f91be315aca/File/PDF-SpecManual

Material mainPowder coated steel

Classification

BIMobject CategoryFurniture - Shelving & Storage
IFC classificationFurniture
CSI MasterFormat 2014 Code10 56 13
CSI MasterFormat 2014 TitleMetal Storage Shelving
OmniClass Number23-21 11 11 11
OmniClass TitleCommercial Storage Shelves
CSI UniFormat II CodeE20
CSI UniFormat II TitleFURNISHINGS
