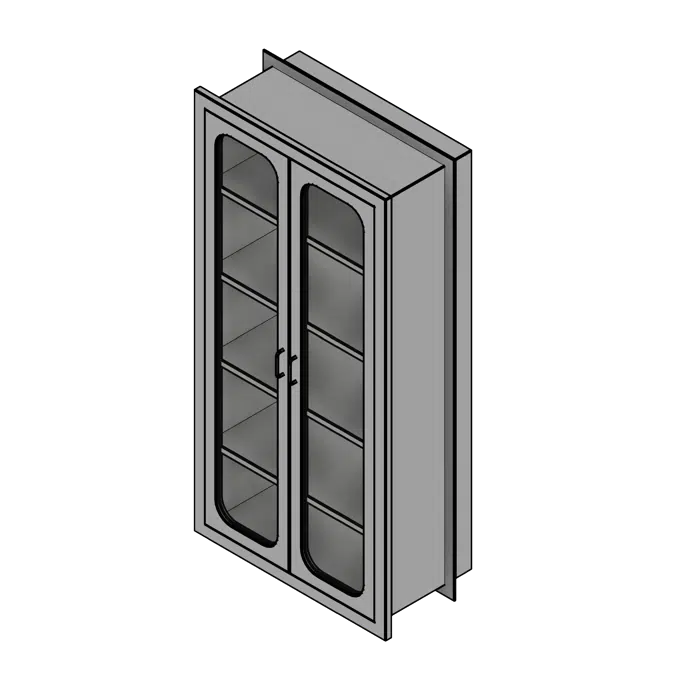

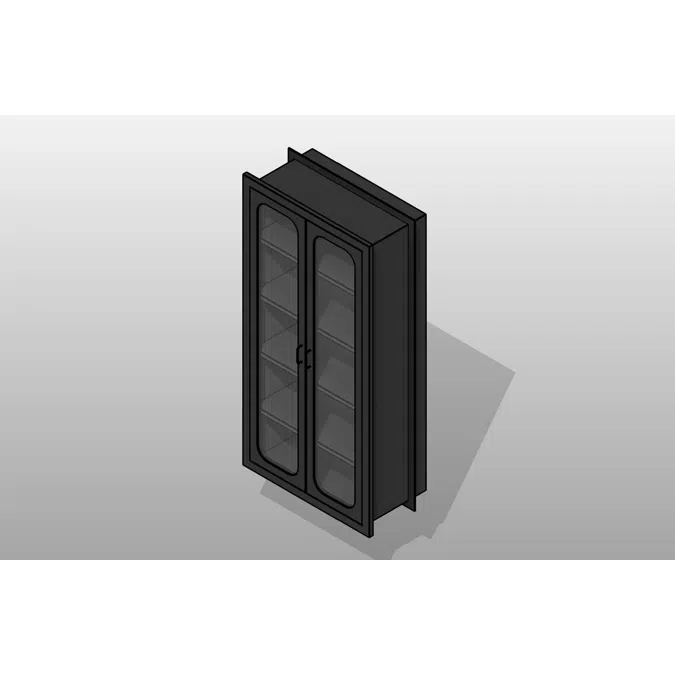

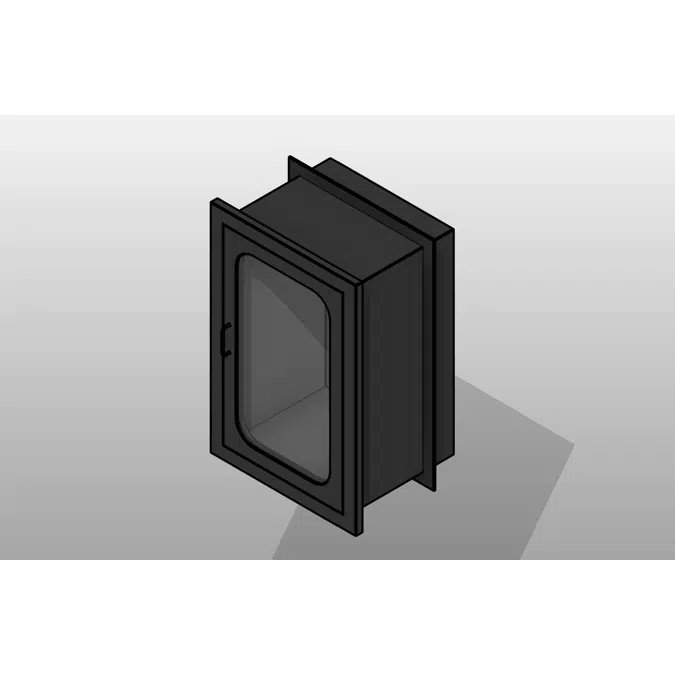

Pass-Through Surgical Storage Cabinets

Surgical Pass-Through Cabinet

Surgical Pass-Through cabinets are essential to any surgical theater to facilitate the flow of sterile items storage. Glass doors provide a clear view of the supplies inside. A variety of sizes and shelf configurations are included. This Revit family is constructed of stainless steel for durability and sterilization.

Standard sizes
Widths: 18", 24", 30", 36", 42", 48"
Depths: 18", 24"
Heights: 24", 36", 48", 60", 72", 80"

Used in medical and surgical settings for sterile item storage and discrete restocking
Stainless Steel construction is anti-microbial, non-absorbant, and easy to sterilize
Model automatically shifts between single door and double door configurations
Adjustable rear flange can be used to conceal wall connection

Stainless Steel Surgical cabinets are designed for surgical theaters, labs, and other medical-focused spaces. Your choice of surface, recessed or pass-through options give maximum flexibility in even the smallest rooms. Medical grade stainless is inert, nonabsorbent, and easily cleaned and sterilized. Simply place your desired installation method, input your desired dimensions, and select options that fit your needs. Models include sloped tops, optional locks, and varied kick plate heights. A variety of customization options for interior configuration are also included in the model such as number of shelves, and integrated lighting.

Specification

Construction
- Type 304 Stainless Steel
- Fully welded and modular assembly - all weld ground and polished
- #4 stainless finish
- Anchor holes provided
Doors and Drawers
- Full height stainless, self lubricating piano hinges
- Door glass is tempered, double strength safety glass. 1/4" thick
- Drawer slides full extension will ball bearing action. 250 lbs. capacity
- Locks included at additional cost
- Locks are keyed alike by default
Shelves
- Height adjustable on 1/2" increments
- Adjustments on flush, built in ladders
- Reinforced on all four sides
Integrated Lamp
- Lamp included on SDC models
- 115 Volt, 60 Hz, 1.5 AMP operation

Technical specification

Unique ref.SSG_Cabinet_Surgical_Pass_Through_SST
Product familyHealthcare
Product groupSurgical, Storage, Pharmacy/ Lab Casework and Exam Room
TypeObject (single object)
Date of publishing2021-10-09
Edition number1

Links

Product urlhttps://fetchbim.com/product/905/ssg-cabinet-surgical-pass-through-sst
Technical descriptionhttps://app.fetchbim.com/Family/a55a4f69-6d37-4ddb-9545-a45567e7f728/File/PDF-SpecManual

Classification

BIMobject CategoryFurniture - Shelving & Storage
IFC classificationFurniture
CSI MasterFormat 2014 Code12 31 00
CSI MasterFormat 2014 TitleManufactured Metal Casework
