Southwest Solutions Group

Tiered Club Wood Locker

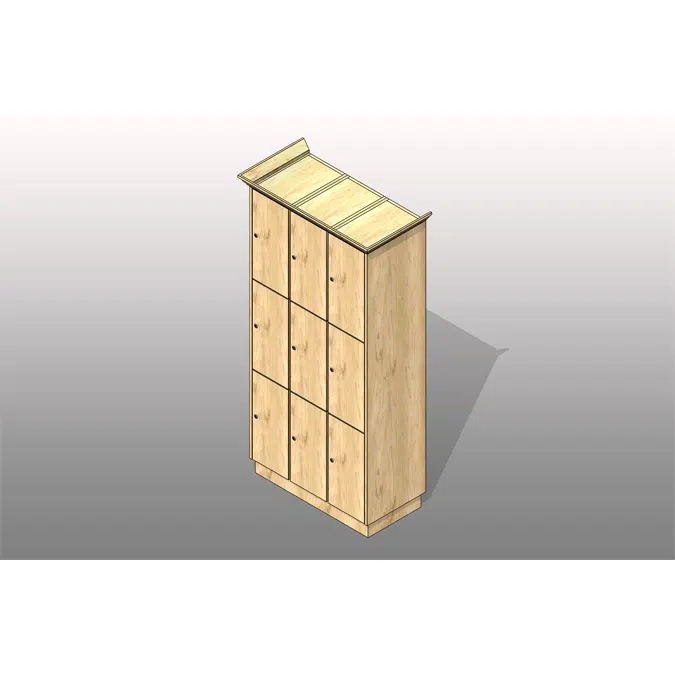

Wood Tiered Club Locker

Tiered wood lockers are an attractive and secure storage solution for country clubs, spas, and gyms.

Standard sizes
Widths: 12", 15", 36", 45"
Depths: 18"
Heights: 72"

Red oak plywood construction makes this locker attractive enough to use in country clubs, health spas, and gyms
Tiered lockers are a simple and secure solution for locker storage

To use this family, insert it into your project by clicking on the picture in the Fetch app and clicking to place the model in your project. This easy-to-use family works by editing the number of columns and tiers using the parameters in the construction category of the properties browser. Additional parameters to adjust the opening width, cabinet height, and overall depth can be found in the dimensions category. Additionally, the CUSTOM_Dimensions parameter will allow users to enter any dimension, column, or tier number to create custom locker solutions.

Specification

Construction

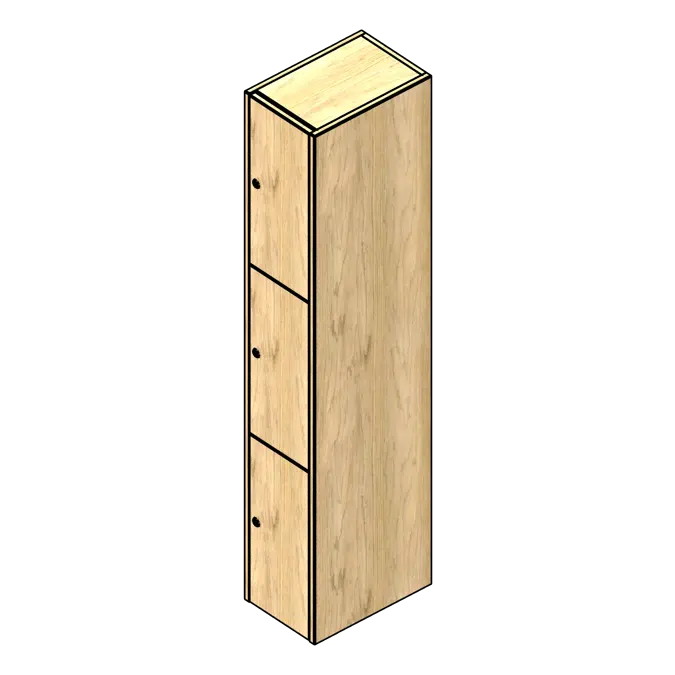

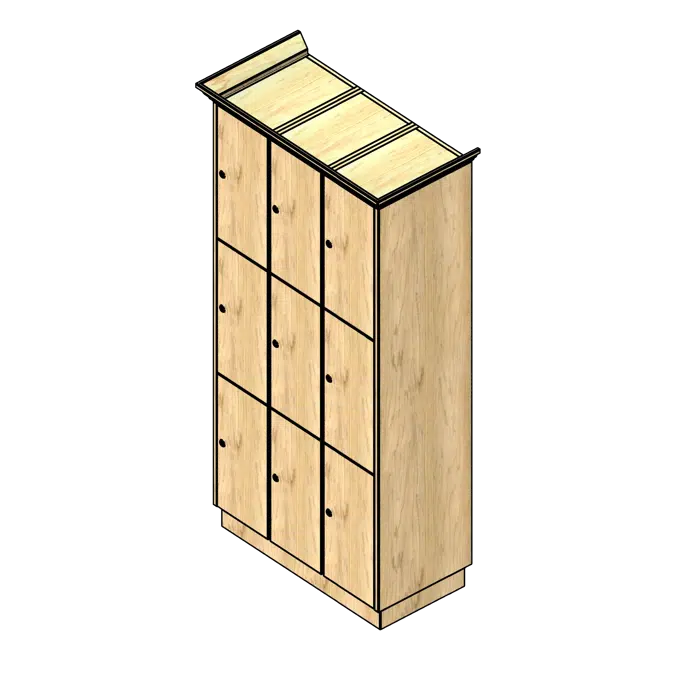

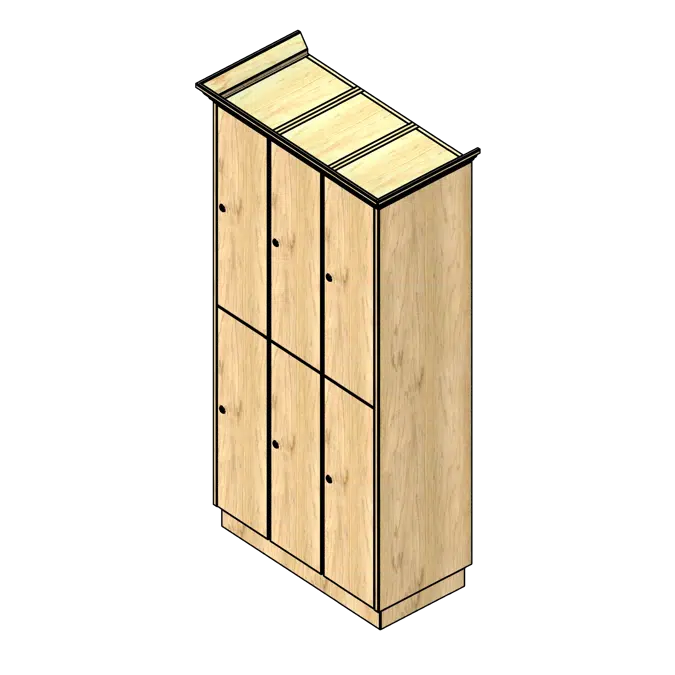

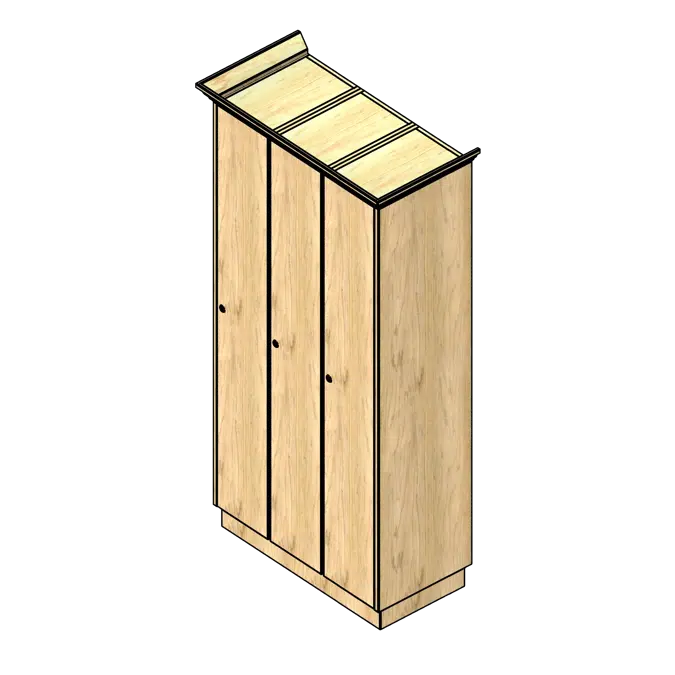

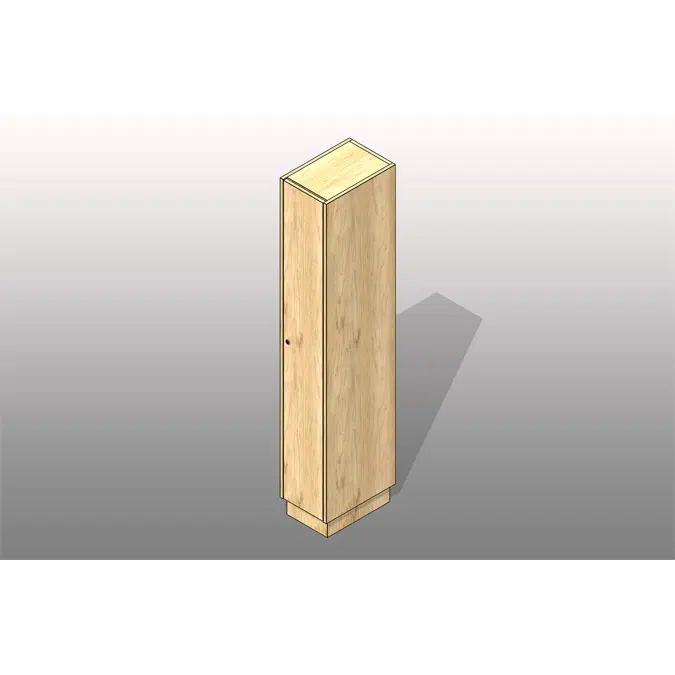

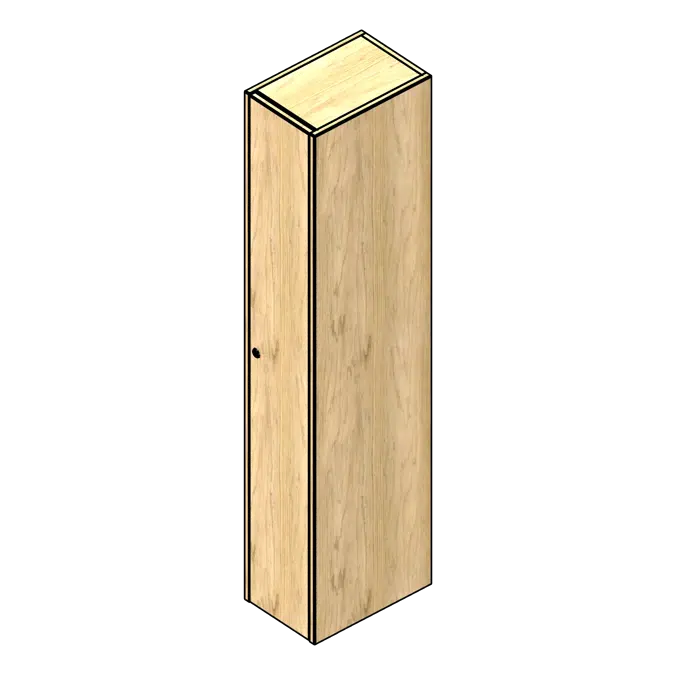

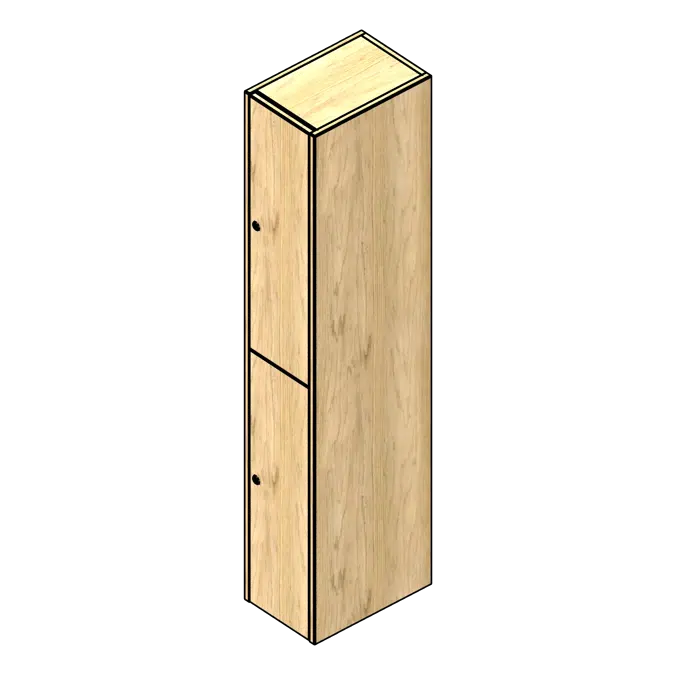

- Standard lockers may be one or three columns and one, two, or three tiers
- All locker panels are made of furniture grade 3/4" red oak plywood
- Wood is finished with two coats of formaldehyde-free varnish
- Locker doors are finished with a red oak vaneer
- Locker door is always right-side hinged and uses concealed European style cabinet hinges
- Single-tier lockers use three hinges, while double and triple-tier lockers use two
- Single-tier lockers include a hat shelf, coat rod, and two hooks
- Double-tier lockers include one coat rod and two hooks
- Triple-tier lockers include one double-prong ceiling hook
- Cylinder cam locks are master keyed to one system
Sustainability
- Up to 75% pre and post-consumer recycled content
- Greenguard Gold Certified for non-emissive materials and finishes

Technical specification

Unique ref.SSG_Locker_Tiered_Club_PLY
TypeObject (single object)
Date of publishing2024-06-15
Edition number1
Height (inches)72
Depth (inches)18

Links

Product urlhttps://fetchbim.com/product/1243/ssg-locker-tiered-club-ply
Technical descriptionhttps://app.fetchbim.com/Family/68c5be00-f424-4f74-9748-df941510cf0a/File/PDF-SpecManual

Material mainPowder coated steel

Classification

BIMobject CategoryFurniture - Shelving & Storage
IFC classificationFurniture
CSI MasterFormat 2014 Code10 51 16
CSI MasterFormat 2014 TitleWood Lockers
OmniClass Number23-19 13 00
OmniClass TitleLockers
CSI UniFormat II CodeE20
CSI UniFormat II TitleFURNISHINGS
