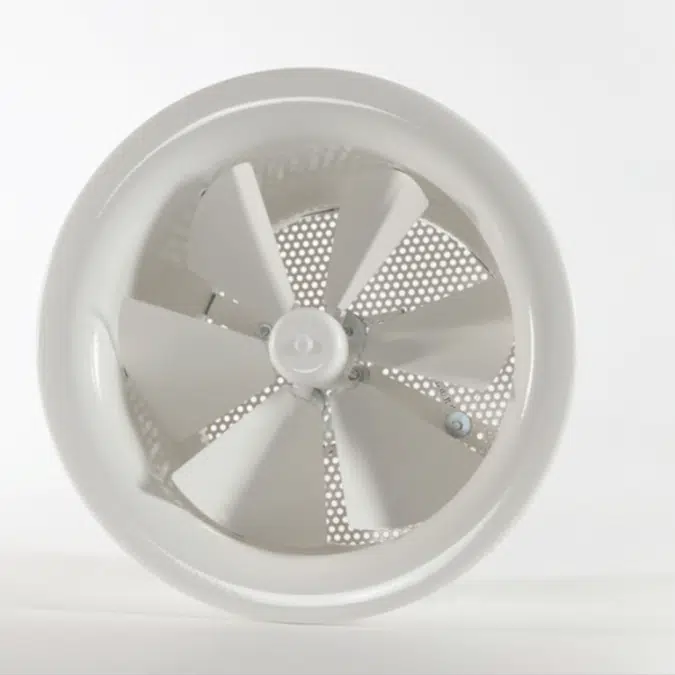

DSRS Variable geometry diffuser

Variable geometry diffuser developed for rooms with high ceilings where a long throw and a high induction ratio are required. Made up of a housing in which individually or simultaneously adjustable deflectors are fitted (if required) in order to change the direction of the air jet in relation to the thermal conditions required. – DSR: Manual blades adjustment – DSRS: Simultaneously blades adjustment

Specification

SPECIFICATIONS – HOUSING MATERIAL: aluminium – DEFLECTOR MATERIAL: steel – SURFACE FINISH: epoxy powder coating resistant to impact and abrasion – COLOUR: RAL white 9010 glossy, 9016 glossy, 9003 mat. On request, coating in nonstandard RAL colours – FASTENING: by means of screws positioned on the diffuser neck – INSTALLATION HEIGHT: up to 16 m – USE: room cooling and heating

Technical specification

Unique ref.DSRS-DSR
Product familyDiffusion
Product groupDSRS
TypeObject (single object)
Date of publishing2026-10-12
Edition number1

Links

Product urlhttps://tecnicasrl.it/en/shop/diffusion/variable-geometry-circular-diffusers/dsr-dsrs-dsrs-therm/
Technical descriptionhttps://tecnicasrl.it/wp-content/uploads/013-DSR-DSRS.eng_-3.pdf

Classification

BIMobject CategoryHVAC - Air Diffusers
