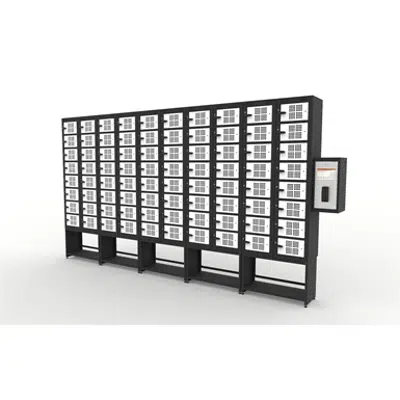

Touch Tablet Locker - 30 way

Traka’s intelligent asset management lockers are ideal for controlling access to portable devices, such as tablets. Our unique RFID technology ensures that you have full visibility of your assets at all times. You can control, manage and audit the use of all of your devices. Charging facilities can be built in to the system to make sure assets are fully charged before distributing to personnel. Whether you are looking to secure and manage pool devices or personal items, Traka intelligent lockers are the ideal solution for asset management.

Specification

• Extension unit: up to 100 doors with one control pod • User interface by 7" Touch screen (plus ID cards, prox tokens, wristbands etc, or biometrics) • Locker system management by Traka Web (or can be standalone) • Physical specifications: 631 x 385 x 1646mm (WxDxH) – all models (includes sloping top) • Compartment size: 260 x 290 x 35mm (WxDxH). This is sufficient for most current tablets including all iPads. If your tablets have very large cases, please call to discuss • Weight: approx. 120kg • Power supply: Input: 100-240V AC, Output: 15V DC • Battery backup: DC12V 7Ah • Power consumption: 350W max • Operating temp: Ambient, for indoor use only (-5°C to +50°C at 95% non-condensing relative humidity) • Max number of users: up to 25,000 users within each Traka Touch locker system. Effectively unlimited number of locker users within the Traka Web software • Reader interface: Clock/data, Wiegand, Serial (RS232/ TTL) PIN only • Certifications: CE, FCC, CSA, ROHS • Colour options: standard colours are white or orange. Other cost options available upon request • Standard functionality: User groups, Curfews, Reports, Alarms • Optional functionality: FIFO. Reason/Fault logging and reporting • Integration options: Postbox for scheduled updates of user details; Integration engine for bi-directional data integration with external software (physical access control systems, personnel systems, or Student/ Library management systems. • Available with micro USB, classic Apple 30-pin, Apple Lightning or 3-way multi-connector. • Temporary deposit option available, enabling a user to bring their own device and securely store it within the locker.

Technical specification

Unique ref.touch-tablet-locker-30-way
Product familyLockers
Product groupTablet lockers
TypeObject (single object)
Date of publishing2017-06-21
Edition number1
Height (mm)1646
Width (mm)618
Depth (mm)385

Links

Material mainSteel
Weight Net (Kg)120

Classification

BIMobject CategoryFurniture - Shelving & Storage
IFC classificationFurnishing Element
UNSPSC nameKey cabinets or organizers
UNSPSC code46171509
