FR_VMBSO_Membrane roofing_Maxon EPDM

Maxon is a non-reinforced EPDM membrane. It is part of the standard product range.

This is a roofing waterproofing solution for flat roofs, lightweight and easy to handle. It can be installed in both cold and warm roof systems. Installation is flame-free, eliminating any fire hazard.

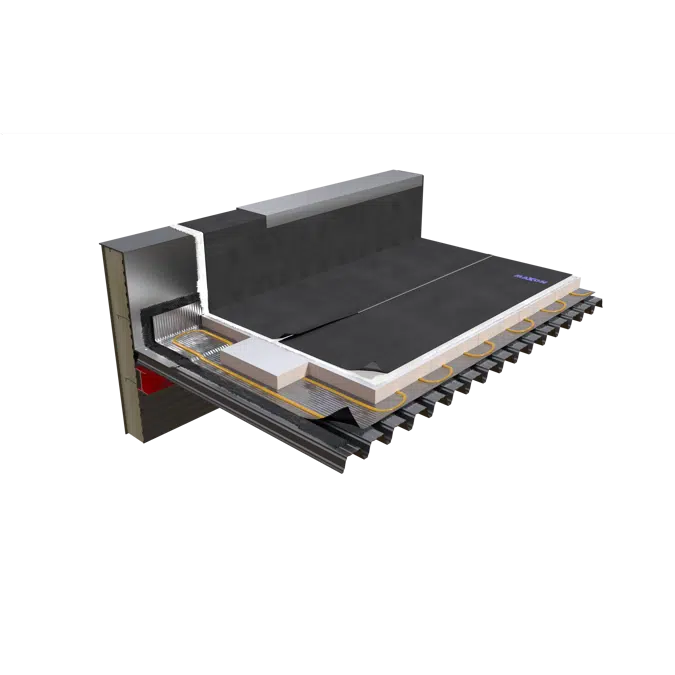

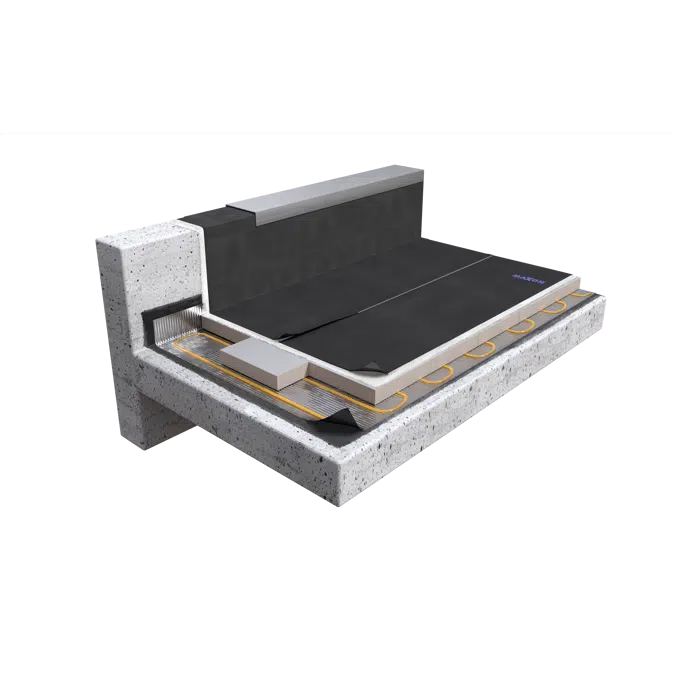

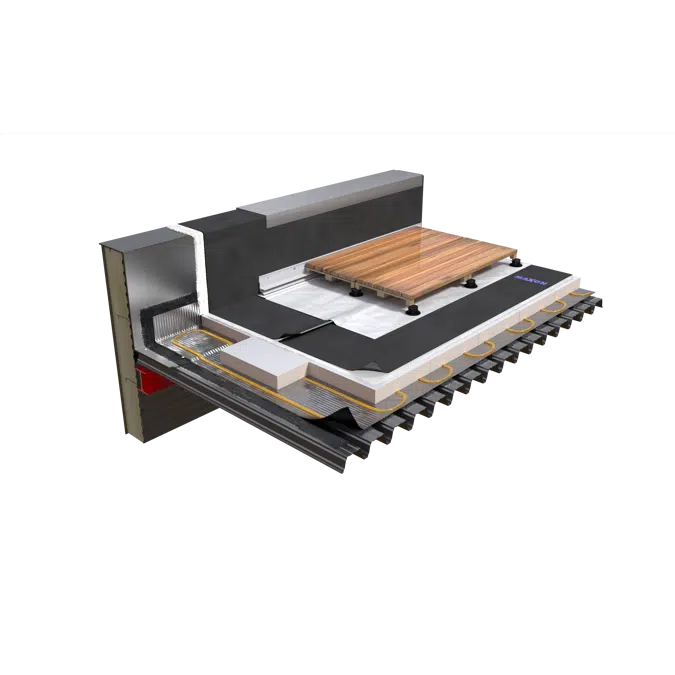

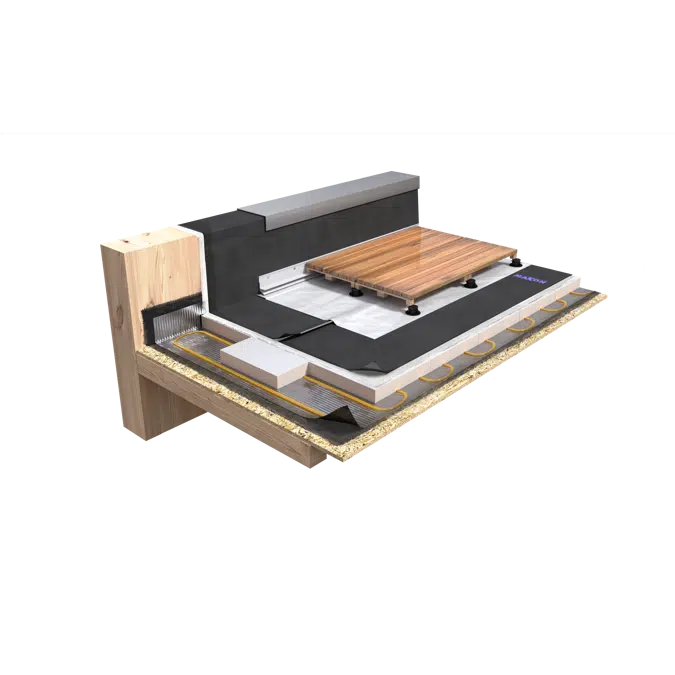

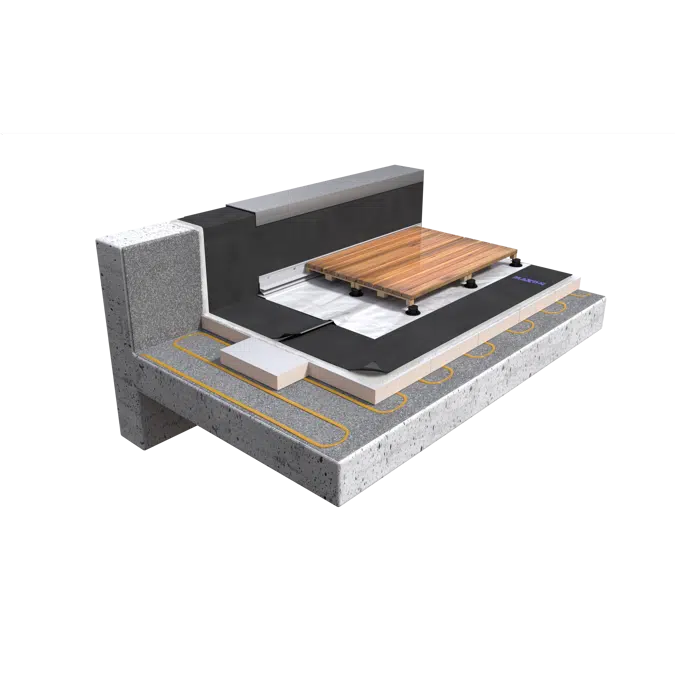

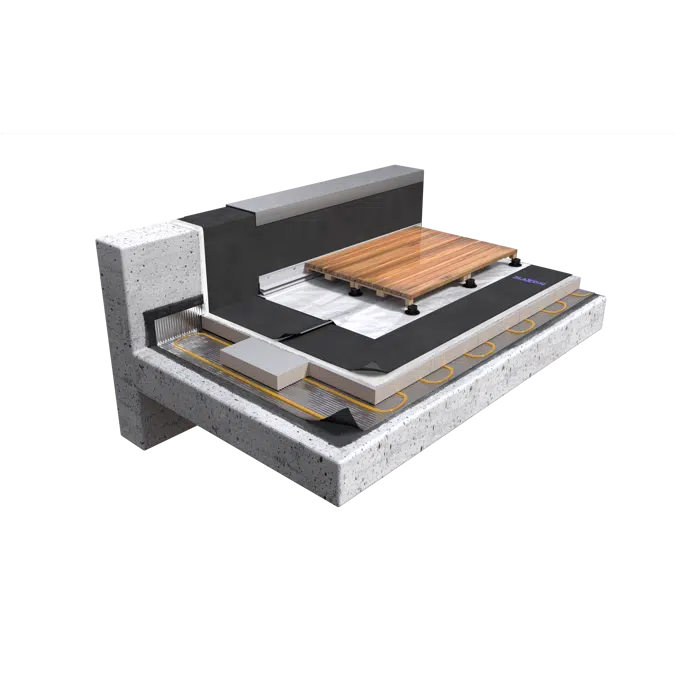

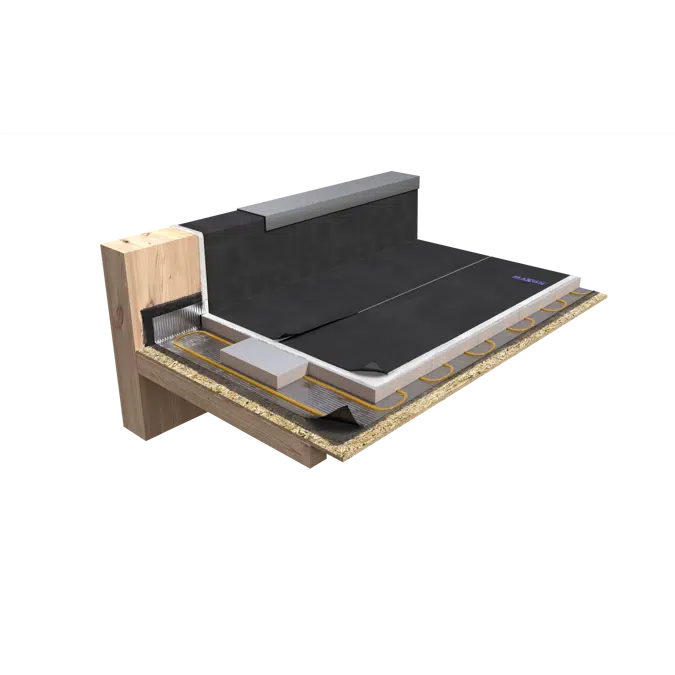

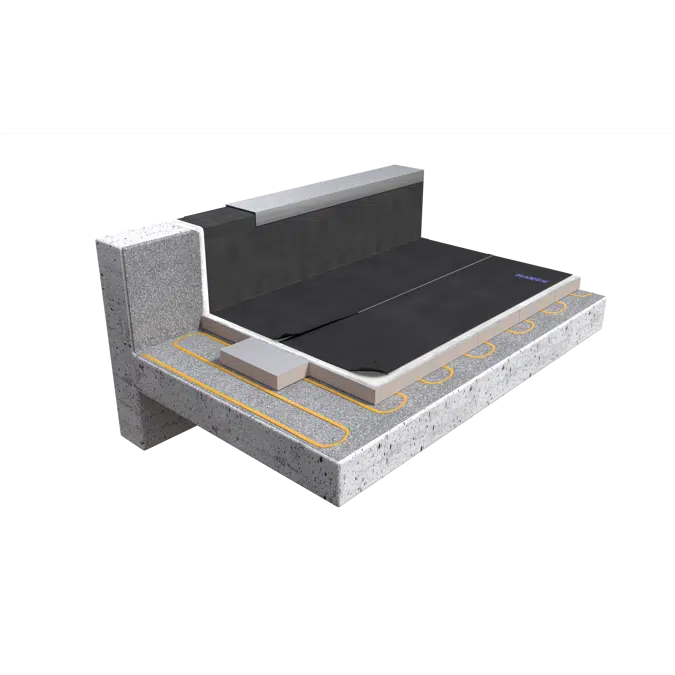

Fully adhered - Partially adhered - Loose-laid under ballast - Joints are cold-bonded

Specification

Thickness: 1,2 / 1,5 mm and 2,0 mm
Widths: 1,4m / 2,8m & 3,5m and other options
Lengths: 20m / 30m & 25m and other options
Weight: 1,47 kg/m² (1,2mm) - 1,84 kg/m² (1,5mm) - 2,46 kg/m² (2,0mm)
Types of roofs
New & renovation, Accessible, technical or non-accessible roof
Document of reference: DTA n°5.2/17-2578_V2, DTU de la série 43
ATG 07/2247
Professional guidelines for the design and construction of green roofs and roof terraces (2nd edition – November 2007)
Support:
Masonry, Autoclaved aerated concrete (AAC), Timber and timber-based products, Insulation (weldable mineral wool, weldable expanded perlite, cellular glass, PIR, PUR, polystyrene…), Existing bituminous membranes

Technical specification

Unique ref.FR_MEMBRANE_MAXON_EPDM
Product familyROOF INSULATION
Product groupEPDM Collection
TypeAssembly (multiple objects)
Date of publishing2026-10-01
Edition number1
Height (mm)30500
Width (mm)3050
Depth (mm)1.5

Links

Related

Designed inFrance
Manufactured inUnited States

Classification

BIMobject CategoryConstruction Materials - Waterproofing & Membranes
IFC classificationRoof
UNSPSC nameRoofing membranes
UNSPSC code30151505
Uniclass 2015 CodePr_25_57_51_27
Uniclass 2015 DescriptionEthylene propylene diene monomer (EPDM) geomembranes
CSI MasterFormat 2014 Code07 50 00
CSI MasterFormat 2014 TitleMembrane Roofing
OmniClass Number23-13 39 31
OmniClass TitleRoof Membranes
CSI UniFormat II CodeB3010
CSI UniFormat II TitleRoof Coverings

Region availability

Europe
France
