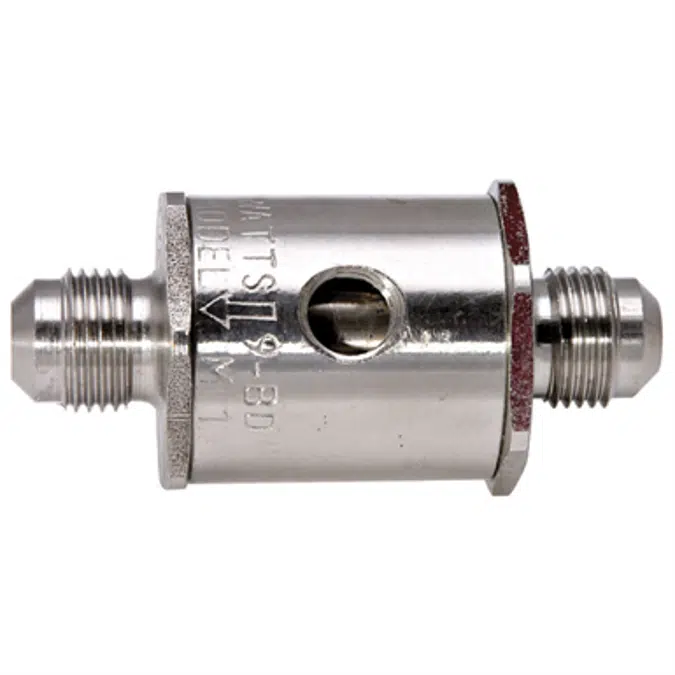

Dual Check Vacuum Breakers for Vending Machine Water Supply Lines - 9BD

Dual Check Vacuum Breakers for Vending Machine Water Supply Lines - 9BD

Dual Check Vacuum Breakers for Vending Machine Water Supply Lines - 9BD

Series 9BD Dual Check Vacuum Breakers for Vending Machine Water Supply Lines prevent the reverse flow of contaminates, such as carbon dioxide gas and carbonated water, from entering the potable water supply. It consists of a stainless steel body construction, rubber parts, dual check valves, ball check valve, and an atmospheric vent. Series 9BD is designed for continuous pressure applications and complies with FDA food additive regulations. Maximum Working Pressure: 150psi (10.3 bar)

Specification

Body Material: Stainless Steel
Connection Size: 1/4 and 3/8" (6 and 10mm)
Connection Type: Flare or NPTM end connections
Industry Standards: Designed to meet the requirements of New York City Health
Working Pressure: 150psi (10.34 bar
Maximum Working Temperature: 140°F (60°C)Keywords: backflow, carbonbev, pex, pex couplings, pex fittings, pex test plugs, preventer, stainless , steel, triplecheck, vented, waterpex

Technical specification

Unique ref.885
Product familyBackflow Prevention
Product groupNon-Return Valves for Liquid Services
TypeObject (single object)
Date of publishing2009-09-16
Edition number1

Links

Product urlhttp://www.watts.com/pages/_products_details.asp?pid=885
Product certificationhttp://www.watts.com/pages/_products_details.asp?pid=885#approvals

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Valves

Region availability

North America
Canada
United States
