Mineral Wool Insulated Panel Module 4-Pflaum® FI

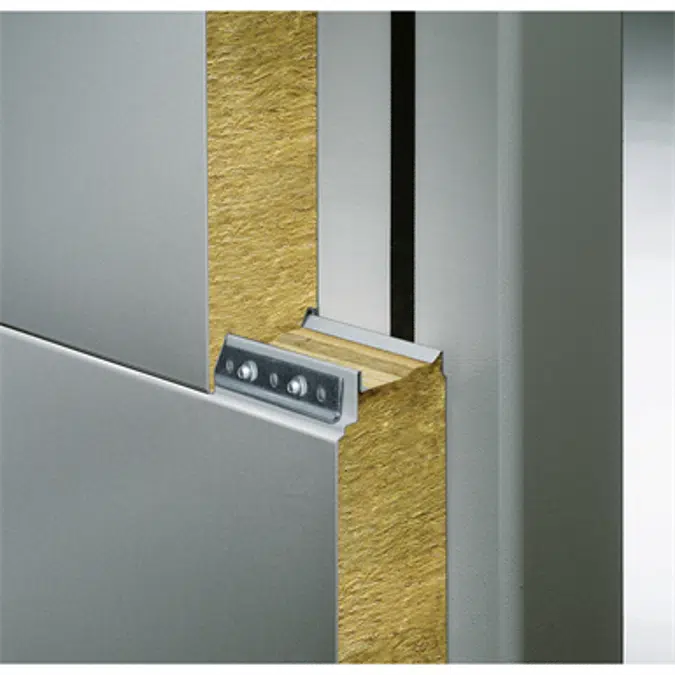

Pflaum® FI is a wall cladding Insulated composite architectural panel made of mineral wool core between prepainted steel , Module 4 is the same panel with bended edges.
Secret fixing giving optimal aestetic
Several finishings such as ribbed : Liss (FI-0), Microline (FI-010), or Micro-ve (FI-LD2 or FI-MD or FI-VD)
Thicknesses from 80 mm up to 200 mm according to requested thermal performances
Standard width 1000 mm, on request 600 mm, 915 mm, 1100 mm width
Density 140 kg/m³ or 100 kg/m³
Colors and materials to be choosen in Colorissime® and material guide according to the environment
Suitable for horizontal or vertical installation with span up to 7 ml

Technical specification
  • Unique ref.pflaum-fi
  • Product familySandwich panel/ Panneau sandwich
  • Product groupFlamstyl® S
  • TypeObject (single object)
  • Date of publishing2017-02-13
  • Edition number4
Related
  • Material mainSteel
  • Material secondaryMineral wool
Classification
  • BIMobject CategoryWalls - Sandwich Panels
  • IFC classificationBuilding Element
  • UNSPSC nameWall finishing materials
  • UNSPSC code301615
  • Uniclass 2015 CodeSs_20_10_60_84
  • Uniclass 2015 DescriptionStructural insulated panel systems
  • CSI MasterFormat 2014 Code07 42 13.19
  • CSI MasterFormat 2014 TitleInsulated Metal Wall Panels
  • OmniClass Number23-13 35 21 19
  • OmniClass TitleStructural Panels
  • CSI UniFormat II CodeB2010
  • CSI UniFormat II TitleExterior Walls
