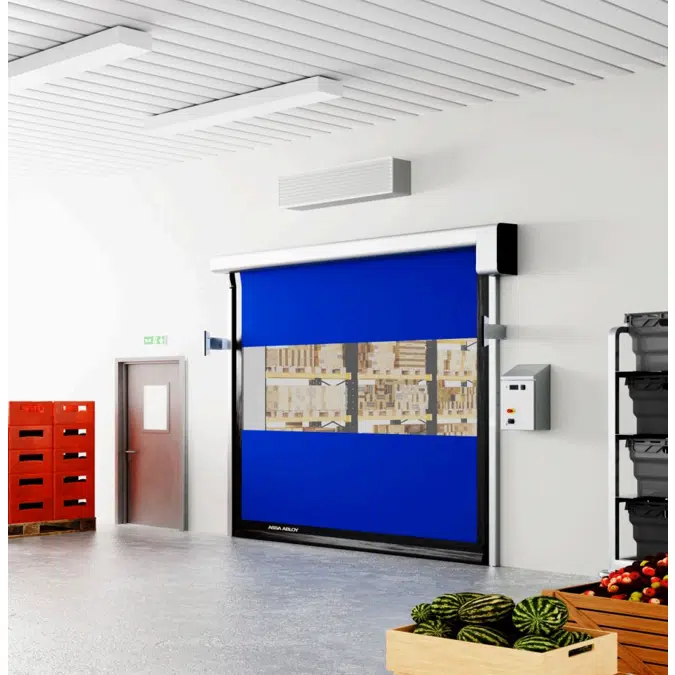

ASSA ABLOY HS9120GHY High Speed Hygiene Door

Features

• Area of use: Inside
• Structure: Stainless steel AISI 304
• Max size (W x H): 4000 mm x 4000 mm
• Colours: 11 standard colours - white, yellow, green, orange, red, grey, traffic grey B, anthracite, black, blue, gentian blue
• Safety:
  • Light curtain 1800 mm in side columns
  • Photocells in side columns and soft bottom beam including wireless detection device for DH < 2100 mm (available as alternative on all dimensions)
• Options:
  • Different vision and insect screen options are available
  • Colour of drum cover, side column cover, motor cover

Performance

• Operating speed: Opening: up to 1,2 m/s (optional 2,0 m/s); Closing: 0,5 m/s
• Wind load resistance: Class 1 (300 Pa (N/m²))
• Water penetration: Class 2 (50 Pa (N/m²))*
• Air permeability: Class 1 (24 m³/m²/h at 50 Pa)*
• Thermal transmittance: 6,02 W/(m²K)
• Performance Test: 1.000.000 cycles
• Temperature working range: 5 °C to +40 °C

* Not applicable for insect screens
