AXORFollow

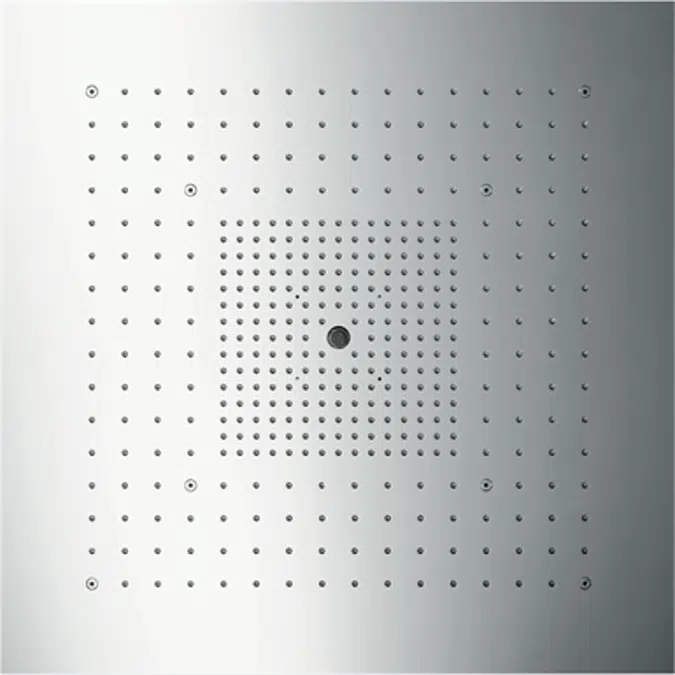

AXOR ShowerHeaven Starck 720x720mm w/o li.

Specification

Specification

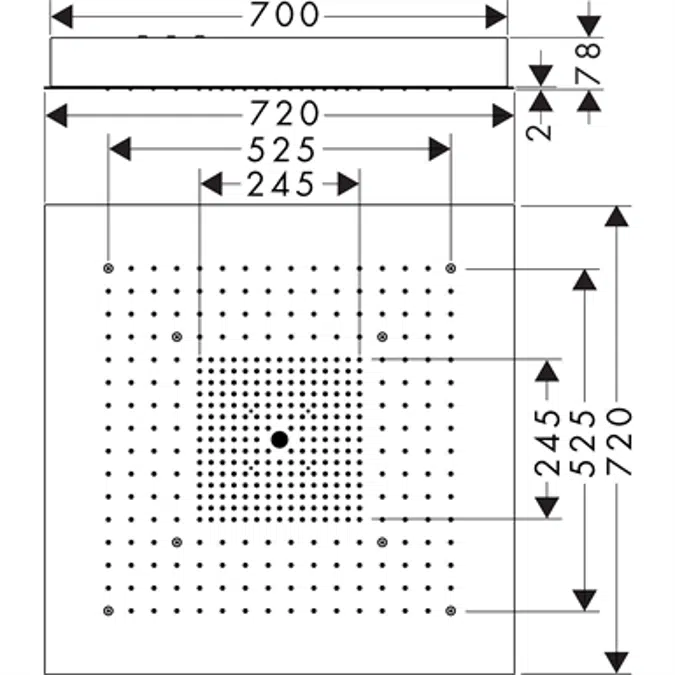

• Surfaces: - 10625800 Stainless Steel Optic Specification: • shower head size: 720 x 720 mm • spray type: RainAir, Rain, Mono • frame: brushed stainless steel • material spray disc: metal • spray disc surface: polished stainless steel • maximum flow rate at 3 bar: 36,8 l/min • flow rate Rain spray (at 3 bar): 36,8 l/min • flow rate RainAir spray (at 3 bar): 20,5 l/min • flow rate Mono spray (at 3 bar): 15,9 l/min • minimum flow pressure: 2,5 bar • the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets, can be activated individually or in combination • spray zones: Bodyzone - outer overhead shower zone, Rainzone - inner overhead shower zone with AirPower function, Mono spray at Ø 17 mm • installation: ceiling • connection dimension: DN20 • not suitable for continuous flow water heaters • TÜV certified

Technical specification

Technical specification

• Unique ref.10625800
• Product familyAXOR ShowerSolutions
• Product groupOverhead showers
• TypeObject (single object)
• Date of publishing2022-09-28
• Edition number1
• Height (mm)59
• Width (mm)280
• Depth (mm)280

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--10625800
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--10625800.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)14

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
