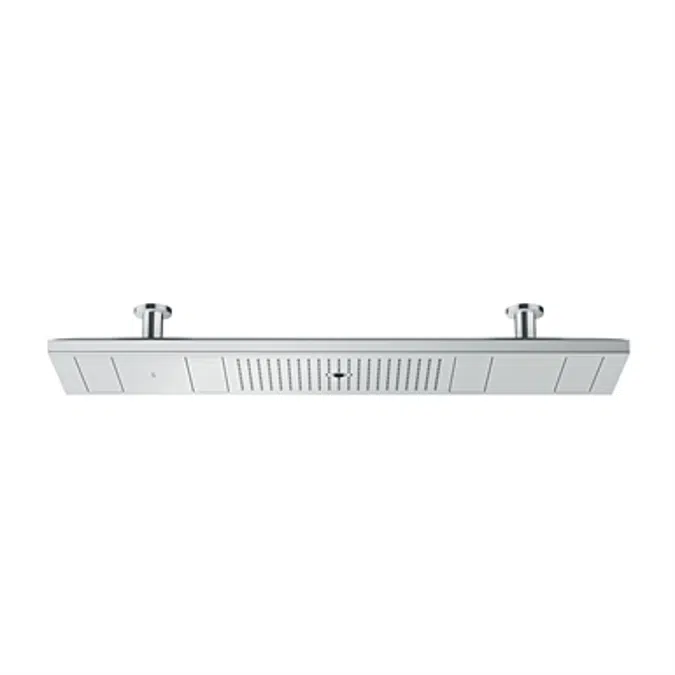

AXOR ShowerHeaven 1200 4jet w/o light

Specification

Specification

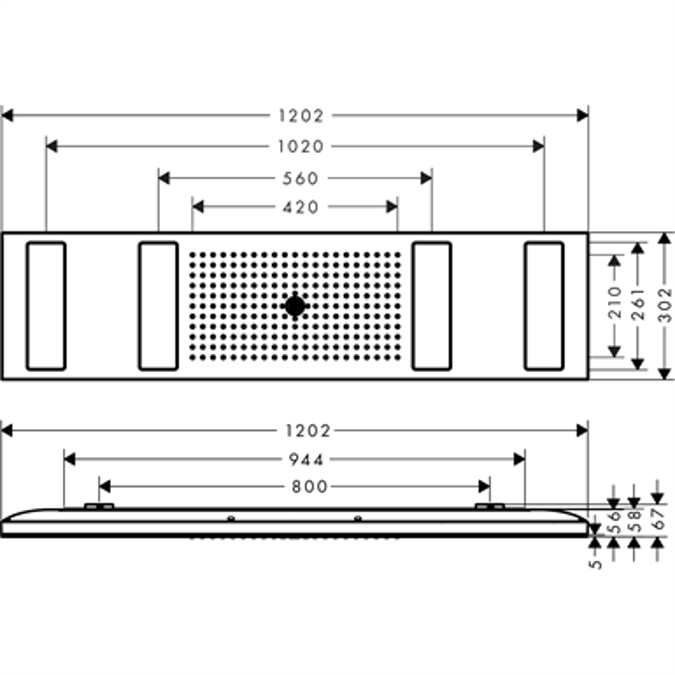

• Surfaces: - 10637000 Chrome - 10637020 Polished Chrome - 10637130 Polished Bronze - 10637140 Brushed Bronze - 10637250 Brushed Gold Optic - 10637260 Brushed Chrome - 10637300 Polished Red Gold - 10637310 Brushed Red Gold - 10637330 Polished Black Chrome - 10637340 Brushed Black Chrome - 10637800 Stainless Steel Optic - 10637820 Brushed Nickel - 10637830 Polished Nickel - 10637930 Polished Brass - 10637950 Brushed Brass - 10637990 Polished Gold Optic Specification: • shower head size: 1200 x 300 mm • spray type: PowderRain, Rain, Mono • Select button on thermostat • material spray disc: metal • brass ceilling connector • ceiling connection length: 100 mm • maximum flow rate at 3 bar: 30 l/min • flow rate Rain spray (at 3 bar): 16 l/min • flow rate Mono spray (at 3 bar): 14 l/min • minimum flow pressure: 3 bar • can be activated individually or in combination • overhead shower removable for cleaning • extendable flaps can be opened manually • installation: ceiling, extendable claps can be pre-set to the user size • connection dimension: DN15 • not suitable for continuous flow water heaters • TÜV certified • not included: basic set

Technical specification

Technical specification

• Unique ref.10637000
• Product familyAXOR ShowerSolutions
• Product groupOverhead showers
• TypeObject (single object)
• Date of publishing2017-11-01
• Edition number1
• Height (mm)163
• Width (mm)1200
• Depth (mm)302

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--10637000
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--10637000.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)21.5

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
