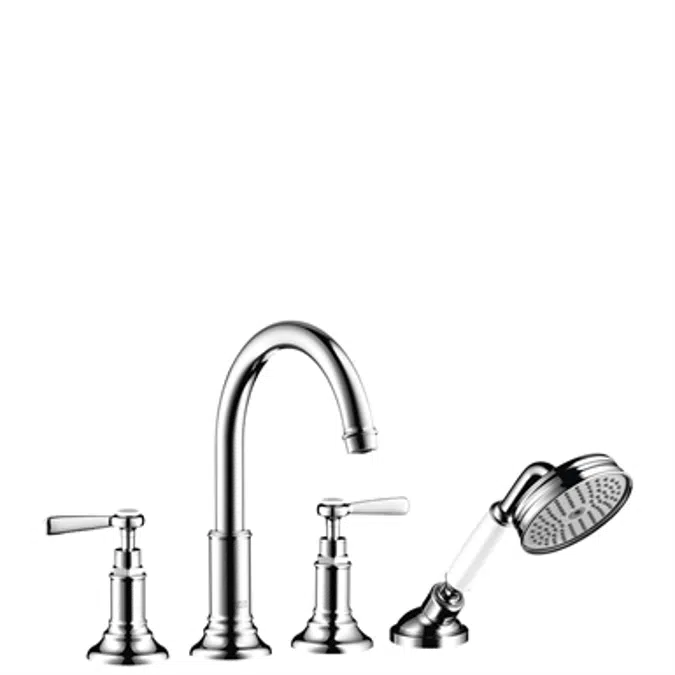

AXOR Montreux 4-h.f-set rim lever h.chrome

Specification

Specification

• Surfaces: - 16550000 Chrome - 16550020 Polished Chrome - 16550130 Polished Bronze - 16550140 Brushed Bronze - 16550250 Brushed Gold Optic - 16550260 Brushed Chrome - 16550300 Polished Red Gold - 16550310 Brushed Red Gold - 16550330 Polished Black Chrome - 16550340 Brushed Black Chrome - 16550800 Stainless Steel Optic - 16550820 Brushed Nickel - 16550830 Polished Nickel - 16550930 Polished Brass - 16550950 Brushed Brass - 16550990 Polished Gold Optic Specification: • consists of: 4-hole rim mounted bath mixer, hand shower, shower hose, shower holder • 2 functions • projection: 196 mm • spray type mixer: normal spray • spray type hand shower: RainAir • maximum pull-out length of hand shower: 1.10 m • maximum flow rate at 3 bar: 20,5 l/min • flow rate for bath spout at 3 bar: 20,5 l/min • flow rate of hand shower at 3 bar: 15 l/min • ceramic valves hot/ cold 90° • non-return valve • connection dimension: DN15 • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

Technical specification

Technical specification

• Unique ref.16550000
• Product familyAXOR Montreux
• Product groupBath mixers
• TypeObject (single object)
• Date of publishing2017-03-14
• Edition number1

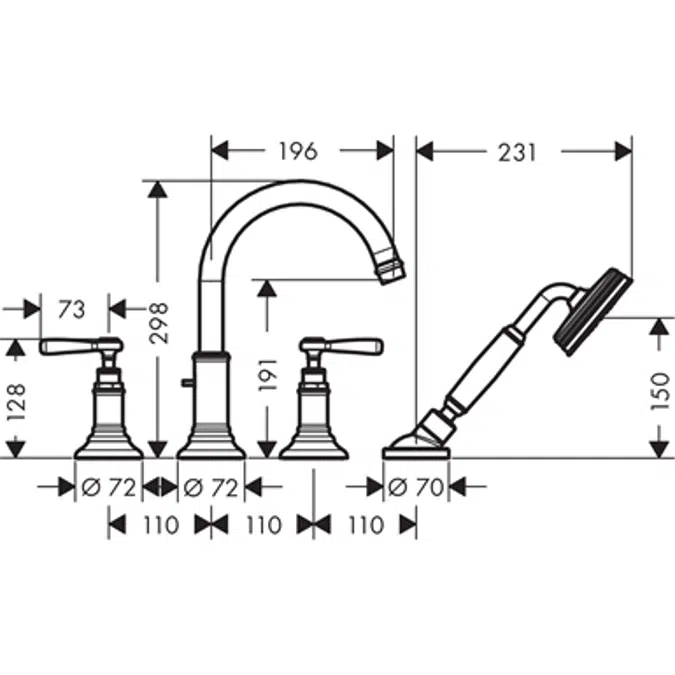

• Height (mm)298
• Width (mm)461
• Depth (mm)261

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--16550000
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--16550000.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)4.1

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationValve
• ETIM CodeEC010862
• ETIM NameBath mixing tap
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_76
• Uniclass 2015 DescriptionSanitary accessories
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
