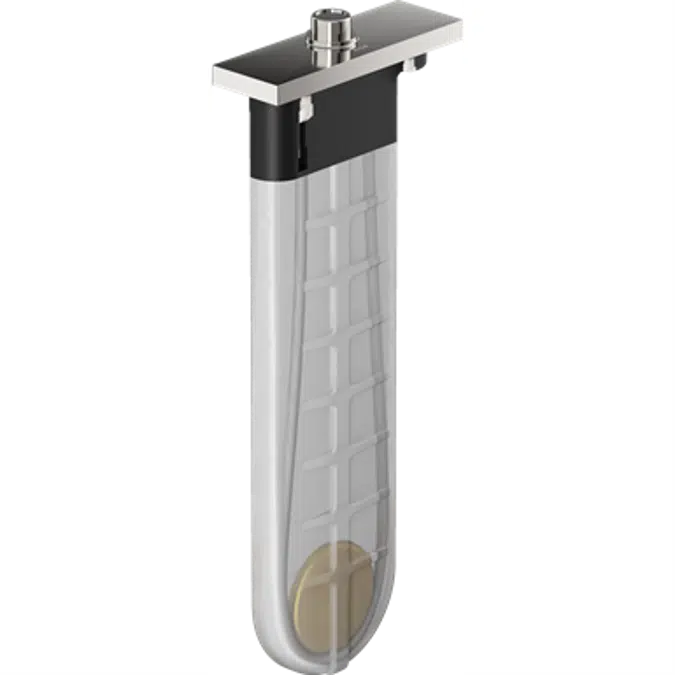

AXOR sBox f-set Square rim mounted chrome

Specification

Specification

• Surfaces: - 28012000 Chrome - 28012130 Polished Bronze - 28012140 Brushed Bronze - 28012250 Brushed Gold Optic - 28012300 Polished Red Gold - 28012310 Brushed Red Gold - 28012330 Polished Black Chrome - 28012340 Brushed Black Chrome - 28012800 Stainless Steel Optic - 28012820 Brushed Nickel - 28012950 Brushed Brass - 28012990 Polished Gold Optic Specification: • consists of: hose box, shower hose, escutcheon • suitable for rim or tile mounted installation • 1 function • sBox for quiet, smooth and protected hose guidance • connection dimension: DN15 • no additional maintenance opening required • bath rim width at least 100 mm • clamping range: 0 - 30 mm • maximum pull-out length of hand shower 1.45 m • removable for service at any time • protected against backflow, according to DIN EN 1717 • maximum flow rate at 3 bar: 9,5 l/min

Technical specification

Technical specification

• Unique ref.28012000
• Product familyAXOR sBox
• Product groupConcealed Basic set bath/shower mixers
• TypeObject (single object)
• Date of publishing2019-03-25
• Edition number1

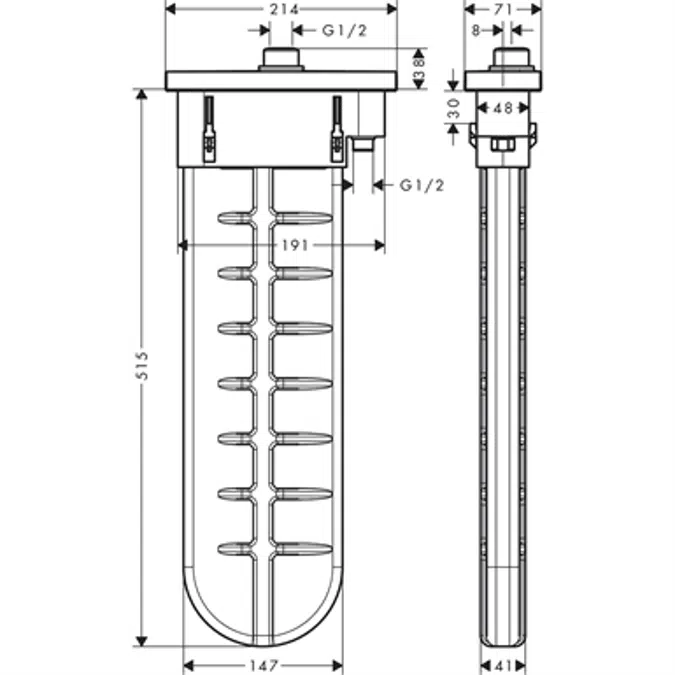

• Height (mm)555
• Width (mm)214
• Depth (mm)71

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--28012000
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--28012000.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)2.8

Classification

Classification

• BIMobject CategorySanitary - Installation Systems
• IFC classificationSanitary Terminal
• ETIM CodeEG017640
• ETIM NameSanitary showers
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_76
• Uniclass 2015 DescriptionSanitary accessories
• CSI MasterFormat 2014 Code01 52 19
• CSI MasterFormat 2014 TitleSanitary Facilities
• OmniClass Number23-27 31 29 11
• OmniClass TitleManual Mixing Valves
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
