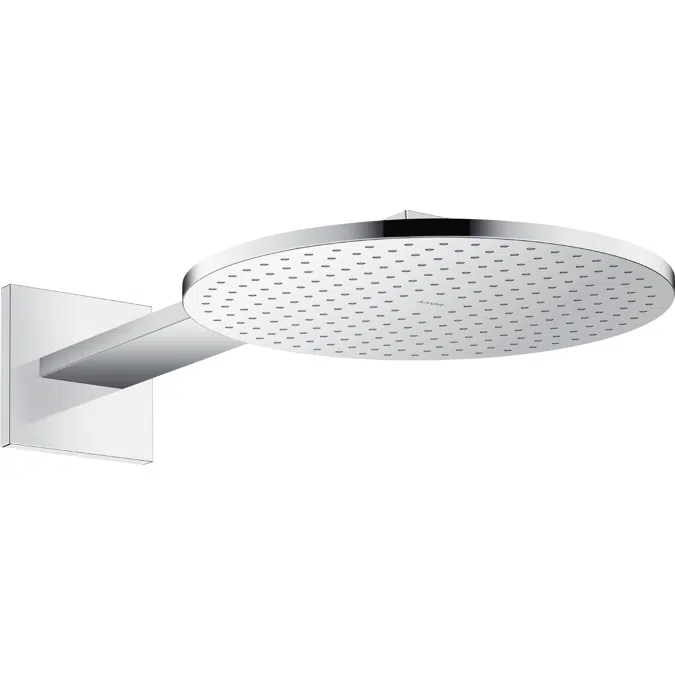

AXOR ShowerSolutions Overhead shower 300 2jet with shower arm

AXOR ShowerSolutions Overhead shower 300 2jet with shower arm

AXOR ShowerSolutions Overhead shower 300 2jet with shower arm

AXOR ShowerSolutions Overhead shower 300 2jet with shower arm

Specification

Surfaces: - 35303677 Matt Black - 35303007 Chrome - 35303137 Polished Bronze - 35303147 Brushed Bronze - 35303257 Brushed Gold Optic - 35303307 Polished Red Gold - 35303317 Brushed Red Gold - 35303337 Polished Black Chrome - 35303347 Brushed Black Chrome - 35303807 Stainless Steel Optic - 35303997 Polished Gold Optic - 35303827 Brushed Nickel - 35303957 Brushed Brass Specification: • consists of: overhead shower, shower arm • shower head size: 300 mm • spray type: PowderRain, Intense PowderRain • Select button on thermostat • dynamic spray nozzles move out while using • material spray disc: metal • shower arm length 450 mm • maximum flow rate at 3 bar: 12 l/min • flow rate PowderRain spray (at 3 bar): 12 l/min • overhead shower removable for cleaning • ServiceCard with sieve can be removed without tools for cleaning porpose • installation: wall • connection thread G ½ • connection dimension: DN15

Technical specification

Unique ref.35303CHN
Product familyAXOR ShowerSolutions
Product groupOverhead showers
TypeObject (single object)
Date of publishing2022-09-28
Edition number1

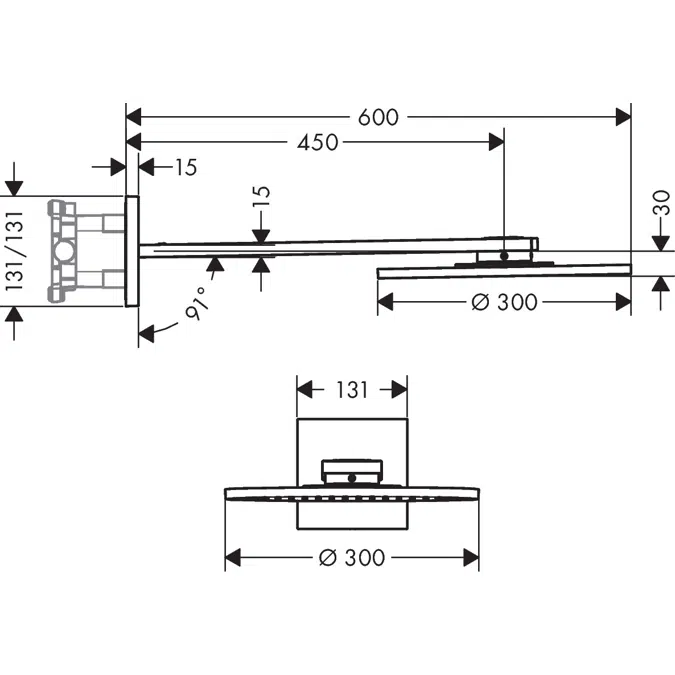

Height (mm)131
Width (mm)300
Depth (mm)600

Links

Product urlhttps://www.axor-design.com/articledetail--35303677

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)9.8

Classification

BIMobject CategorySanitary - Showers
IFC classificationSanitary Terminal
ETIM CodeEC011383
ETIM NameShower head
UNSPSC nameShowers
UNSPSC code30181503
Uniclass 2015 CodePr_40_20_87_76
Uniclass 2015 DescriptionShower heads
CSI MasterFormat 2014 Code22 41 23
CSI MasterFormat 2014 TitleResidential Showers
OmniClass Number23-31 17 00
OmniClass TitleShowers
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

Asia
China
