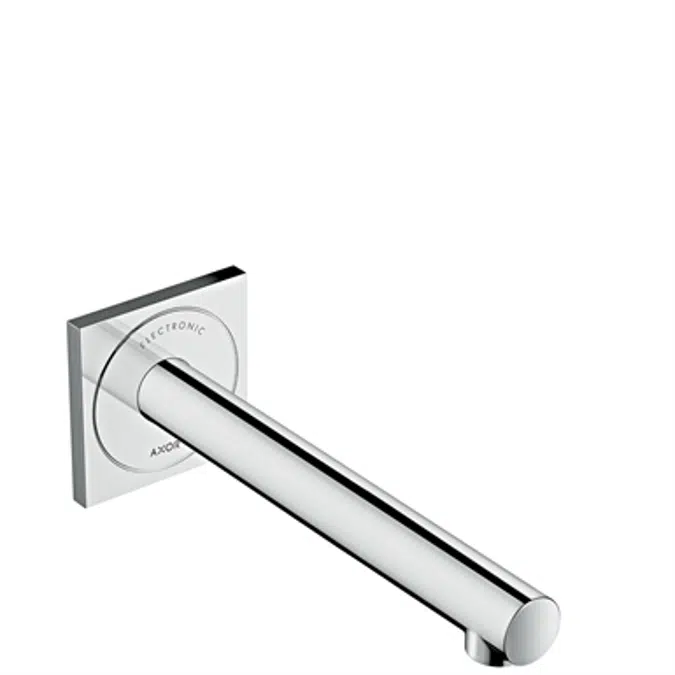

AXOR Uno basin mixer electr.wall m.long

Specification

Specification

• Surfaces: - 45111000 Chrome - 45111020 Polished Chrome - 45111130 Polished Bronze - 45111140 Brushed Bronze - 45111250 Brushed Gold Optic - 45111260 Brushed Chrome - 45111300 Polished Red Gold - 45111310 Brushed Red Gold - 45111330 Polished Black Chrome - 45111340 Brushed Black Chrome - 45111800 Stainless Steel Optic - 45111820 Brushed Nickel - 45111830 Polished Nickel - 45111930 Polished Brass - 45111950 Brushed Brass - 45111990 Polished Gold Optic Specification: • projection 221 mm • spray type: laminar spray • maximum flow rate at 3 bar: 5 l/min • temperature adjustable via iBox • infrared sensor technology • automatic environmental adjustment of infrared sensor • adjustable optical range of infrared sensor (5 settings) • 230 V / 50 Hz mains connection • hygiene rinse activatable (automatic water flow) • frequency of hygiene rinse: 24 h • flushing time hygiene rinse: 10 s • permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection) • cleaning mode: manual water stop for washbasin cleaning • TÜV certified • dirt filters in the connection hoses • for ideal function please note a minimum distance of 140 mm from the aerators center to the back rim of the wash basin

Technical specification

Technical specification

• Unique ref.45111000
• Product familyAXOR Uno
• Product groupElectronic mixers
• TypeObject (single object)
• Date of publishing2017-03-14
• Edition number1

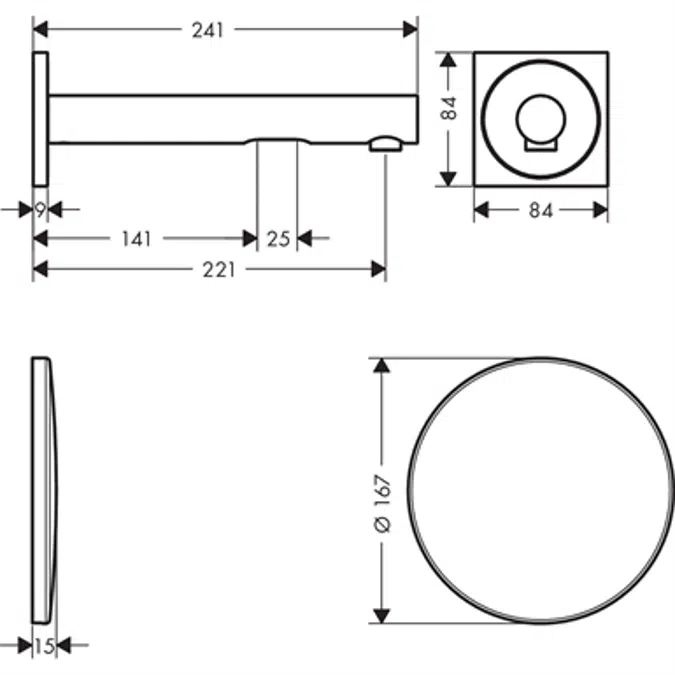

• Height (mm)84
• Width (mm)84
• Depth (mm)241

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--45111000
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--45111000.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)3.2

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationValve
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_87
• Uniclass 2015 DescriptionTaps and water supply outlet fittings
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
