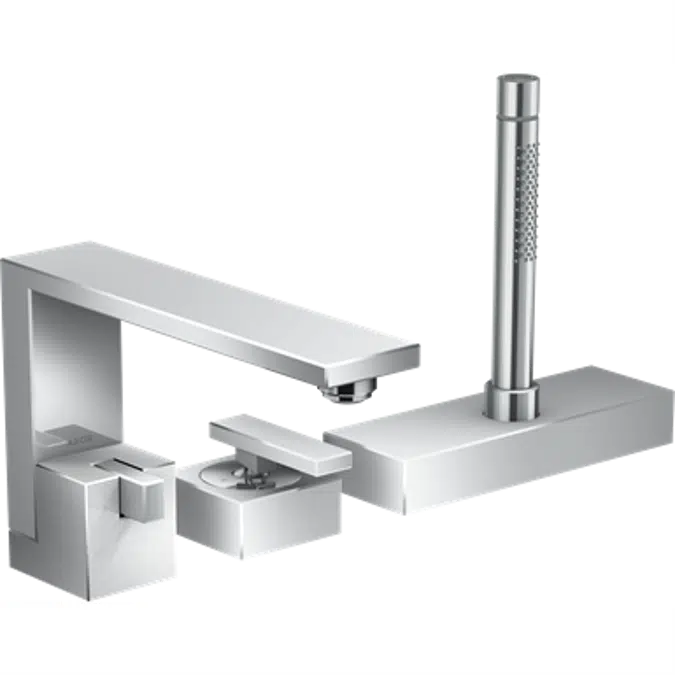

AXOR Edge3h rim m bm struc USA chr

Specification

Specification

• Surfaces: - 46431001 Chrome - 46431131 Polished Bronze - 46431301 Polished Red Gold - 46431331 Polished Black Chrome - 46431991 Polished Gold Optic Specification: • 2 functions • projection: 210 mm • spray type mixer: normal spray • spray type hand shower: Stream, IntenseRain • maximum pull-out length of hand shower: 1.45 m • sBox for quiet, smooth and protected hose guidance • maximum flow rate at 3 bar: 19 l/min • ceramic cartridge • temperature limitation adjustable • non-return valve • suitable for continous flow water heaters • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

Technical specification

Technical specification

• Unique ref.46431001
• Product familyAXOR Edge
• Product groupBath mixers
• TypeObject (single object)
• Date of publishing2022-11-29
• Edition number1
• Height (mm)230
• Width (mm)444
• Depth (mm)266

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--46431001
• Technical descriptionhttps://www.axor-design.com/en-us/articledetail--46431001.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)8.3

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationValve
• ETIM CodeEC010862
• ETIM NameBath mixing tap
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_76
• Uniclass 2015 DescriptionSanitary accessories
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
