AXOR Edge rim bath set w/ sBox HS chrome

Specification

Specification

• Surfaces: - 46470000 Chrome - 46470130 Polished Bronze - 46470300 Polished Red Gold - 46470330 Polished Black Chrome - 46470990 Polished Gold Optic Specification: • consists of: baton hand shower, escutcheon, hose box, shower hose • suitable for suitable for installation on bath rim • sBox for quiet, smooth and protected hose guidance • connection thread G ½ • connection dimension: DN15 • no additional maintenance opening required • maximum pull-out length of hand shower 1.45 m • removable for service at any time • maximum flow rate at 3 bar: 10 l/min

Technical specification

Technical specification

• Unique ref.46470000
• Product familyAXOR Edge
• Product groupConcealed Basic set bath/shower mixers
• TypeObject (single object)
• Date of publishing2019-04-01
• Edition number1

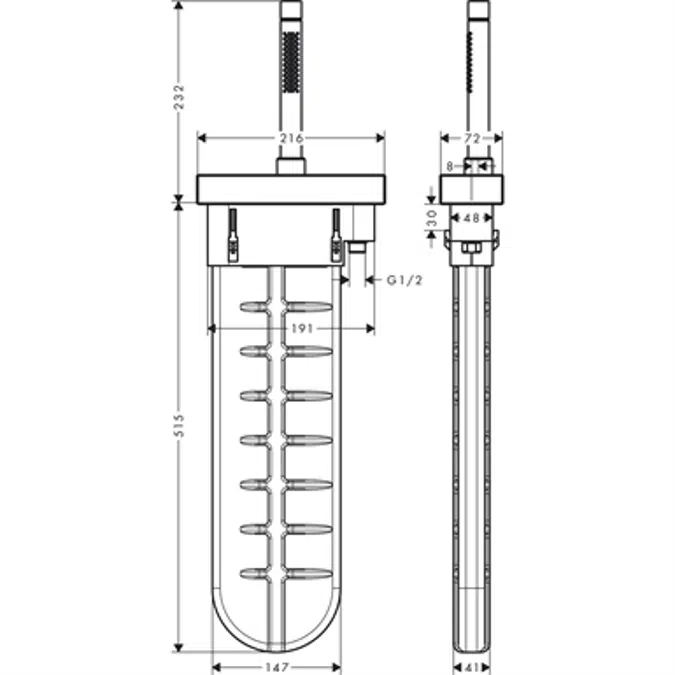

• Height (mm)232
• Width (mm)216
• Depth (mm)72

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--46470000
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--46470000.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)3.9

Classification

Classification

• BIMobject CategorySanitary - Installation Systems
• IFC classificationSanitary Terminal
• ETIM CodeEG017640
• ETIM NameSanitary showers
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_76
• Uniclass 2015 DescriptionSanitary accessories
• CSI MasterFormat 2014 Code01 52 19
• CSI MasterFormat 2014 TitleSanitary Facilities
• OmniClass Number23-27 31 29 11
• OmniClass TitleManual Mixing Valves
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
