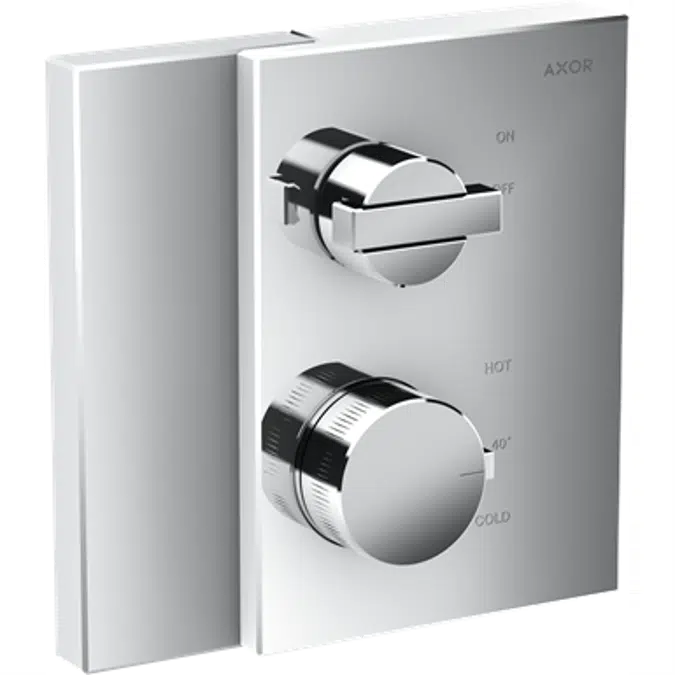

AXOR Edge TH conc. w/shut-off v.chrome

Specification

Specification

• Surfaces: - 46750020 Polished Chrome - 46750830 Polished Nickel - 46750930 Polished Brass - 46750000 Chrome - 46750130 Polished Bronze - 46750300 Polished Red Gold - 46750330 Polished Black Chrome - 46750990 Polished Gold Optic Specification: • 1 function • maximum flow rate at 3 bar: 26 l/min • thermostat cartridge, ceramic valves 90° • safety lock at 40 °C • temperature limitation adjustable • non-return valve • with silencer • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

Technical specification

Technical specification

• Unique ref.46750000
• Product familyAXOR Edge
• Product groupShower thermostat
• TypeObject (single object)
• Date of publishing2019-04-01
• Edition number1

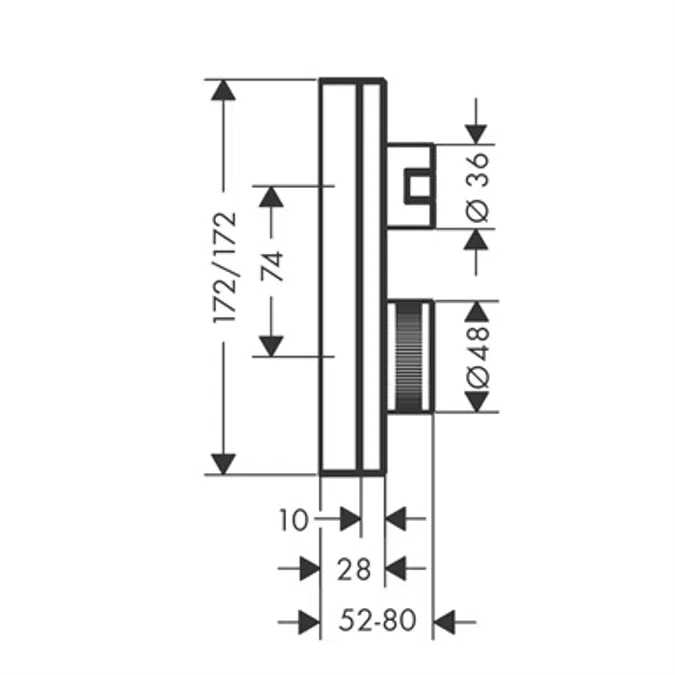

• Height (mm)172
• Width (mm)172
• Depth (mm)52

Links

Links

• Product urlhttps://www.axor-design.com/articledetail--46750020
• Technical descriptionhttps://www.axor-design.com/de-de/articledetail--46750000.html

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)3.9

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011329
• ETIM NameShower mixing tap
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
