48000XXX AXOR One Single lever basin mixer 70 with lever handle and pop-up waste set

48000XXX AXOR One Single lever basin mixer 70 with lever handle and pop-up waste set

48000XXX AXOR One Single lever basin mixer 70 with lever handle and pop-up waste set

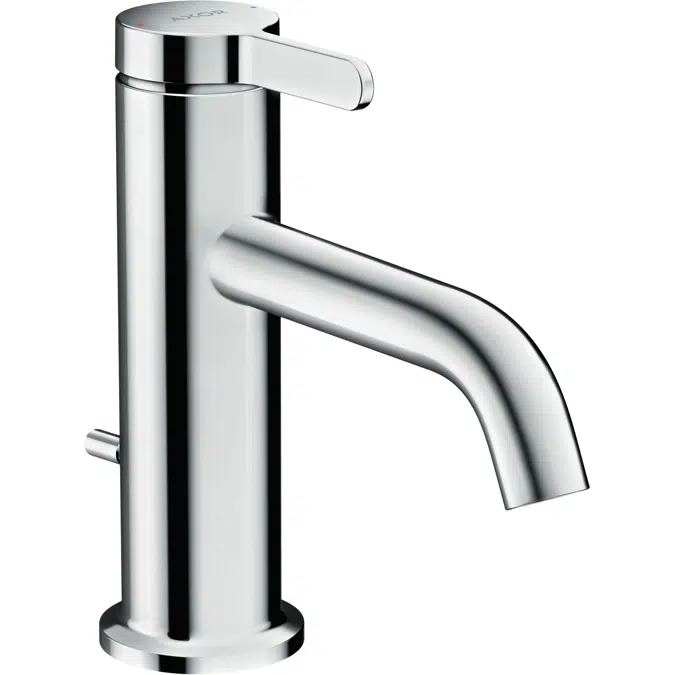

AXOR One Single lever basin mixer 70 with lever handle and pop-up waste set

Specification

Surfaces:
- 48000700 Matt White
- 48000000 Chrome
- 48000670 Matt Black
- 48000340 Brushed Black Chrome
- 48000950 Brushed Brass
- 48000990 Polished Gold Optic
- 48000250 Brushed Gold Optic
- 48000140 Brushed Bronze
- 48000300 Polished Red Gold
- 48000310 Brushed Red Gold
- 48000820 Brushed Nickel
- 48000800 Stainless Steel Optic
- 48000330 Polished Black Chrome
- 48000020 Polished Chrome
- 48000260 Brushed Chrome
- 48000830 Polished Nickel
- 48000130 Polished Bronze
- 48000930 Polished Brass
Specification:
• consists of: single lever basin mixer, waste set
• ComfortZone 70

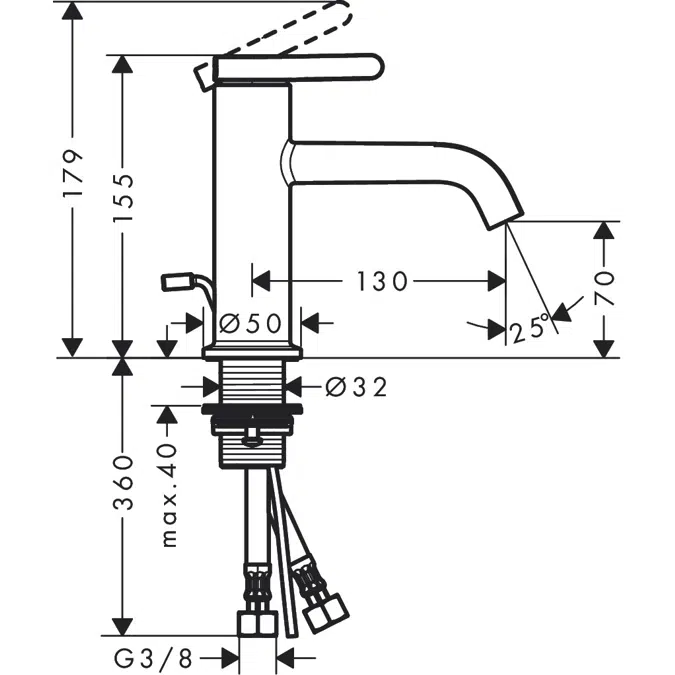

• projection: 130 mm
• spout height: 70 mm
• spray type: normal spray
• maximum flow rate at 3 bar: 5 l/min
• ceramic cartridge
• temperature limitation adjustable
• suitable for continuous flow water heaters
• pop-up waste set G 1¼
• material waste set: metal
• connection type: G ⅜ connections
• connection dimension: DN15
- EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Technical specification

Unique ref.48000XXX
Product familyAXOR One
Product groupBasin mixers
TypeObject (single object)
Date of publishing2022-09-28
Edition number1
Height (mm)155
Width (mm)50
Depth (mm)155

Links

Product urlhttps://www.axor-design.com/articledetail--48000700

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.4

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC010862
ETIM NameBath mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures
