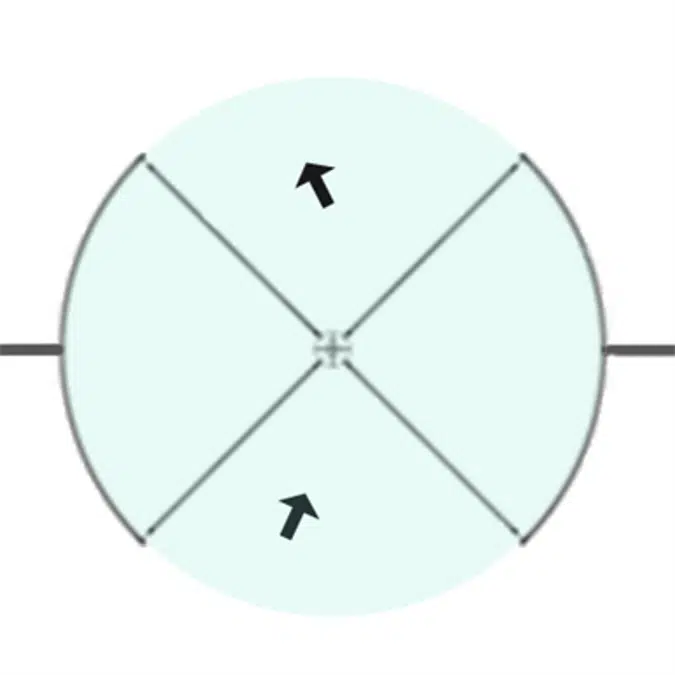

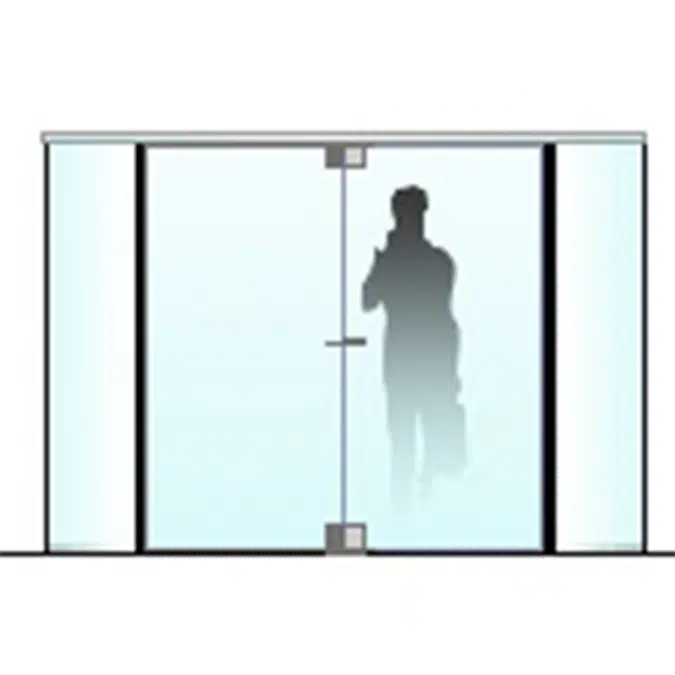

Glass 4-wing revolving door 1.8 to 3.0 m ∅
| Unique ref.: | RD4-300 |
|---|---|
| Brand: | Besam-EMEA |
| Product family: | Automatic Revolving Doors |
| Product group: | ASSA ABLOY RD3T and RD4T |
| Date of publishing: | 2014-12-12 |
| Edition number: | 1 |
| Type: | Object (single object) |
With the Besam RD300 4-wing revolving door your indoor climate will be safeguarded against unwanted air infiltration, enabling you to take control of your energy consumption without compromising with a welcoming, luxurious entrance.
We take aesthetics seriously. The new touchscreen mode selector with its clean and user-friendly interface and the integrated LED-lights in the ceiling are just as good as they look. From design to installation and operation – our all glass revolving doors incorporate beauty inside out.
The all glass revolvers are available in a variety of diameters, ensuring optimal convenience for staff, customers and guests accompanied by goods or luggage. And staying true to our reputation – market leading in safety, naturally.
We take aesthetics seriously. The new touchscreen mode selector with its clean and user-friendly interface and the integrated LED-lights in the ceiling are just as good as they look. From design to installation and operation – our all glass revolving doors incorporate beauty inside out.
The all glass revolvers are available in a variety of diameters, ensuring optimal convenience for staff, customers and guests accompanied by goods or luggage. And staying true to our reputation – market leading in safety, naturally.
Models:
Besam RD-4-300 STRUCTURAL GLASS Automatic Revolving Door System, with four door leaves, curved glazed fixed side screens, glass ceiling / canopy, complete with IP 65 rated in-floor mounted operator and CDC control. System including normal installation to comply with BS7036-0-2014 / BS-EN16005.
Dimensions:
Internal diameter: 1800 / 2100 / 2400 / 2700 / 3000mm
Overall diameter: XXXXmm (Int. Diameter + 52mm Std. or + 154mm for Night Closing Doors)
Opening Width (TW): 1237 / 1449 / 1661 / 1873 / 2085mm.
Internal Height: XXXXmm (Maximum 3000mm)
Glass Ceiling Trim Height: 45mm. Overall Height XXXXmm
(By others: - Prepared opening).
Standard equipment:
System: IN-FLOOR MOUNTED operator and controls, complete with IP 65 rated containment.
Trim finish: Besam powdercoat finish RAL ref: TBC or Premium Stainless Steel cladding: FINISH TBA
STRUCTURAL BOLTED GLASS Door Leaves: Rigid turnstile.
Glass type – Door Leaves: 12mm/15mm Clear toughened glass (Int. Hgt. >2600mm? then 15mm).
Door Seal: Slender aluminium profile perimeter trim and replaceable horse hair brush to three edges.
STRUCTURAL GLASS Outer Walls: Silicone bonded, with slender aluminium profiles to trim and joints.
Glass type – Outer Walls: 16.76MM 1B1 Clear laminated.
STRUCTURAL GLASS Ceiling / Canopy: Silicone bonded, with slender aluminium profiles to trim and joints.
Glass type - Ceiling / Canopy: 16.76MM 1B1 Clear laminated
Lighting: Imbedded LED glass ceiling 24V, 20 – 60W - OPTIONAL or NONE
Glass Ceiling Console: Concealed Sensor Housing or Standard 45mm Trim.
Control Console; Flush Mount full height Control Post to inner leading mullion or NONE.
Four Position Programme Selector: Standard SURFACE or FLUSH mounted (Optional Control Post).
Ground Ring; Circular Stainless steel 30 x 30 section formed to suit internal diameter.
Activation and control system:
CDC control unit with plug-in connections and switched mode power supply 100 – 230V.
Activation: PIR Motion Sensor Surface Mounted to the ceiling perimeter trim or within Concealed Sensor Housing.
Safety device(s):
PSPE Active soft rubber safety edges to: Outer wall leading mullion and door leaf bottom rail.
ESPE Presence Sensors to: each door leaf leading face
Additional ESPE Presence Sensors for Vulnerable Users to: Outer wall leading mullion or NONE.
Emergency Stop, on the inner leading mullion: Standard SURFACE or FLUSH mounted (Optional Control Post).
Disabled Slow Speed Switches: Standard SURFACE or FLUSH mounted (Optional Control Post) or NONE.
Locking mechanism:
Face fixed dead lock to one leaf or Face fixed dead locks to two leaves or Electro-Mechanical lock to the turnstile or Night Closing Doors with face fixed dead locks.
Maintenance:
Warranty with bi annual service visits for optimum performance and longevity
1 YEAR / 2 YEAR / 3 YEAR / 4 YEAR / 5 YEAR / 10 YEAR
Please consult ASSA ABLOY Entrance Systems Limited technical literature for further details and the quotation for project specific notes.
Besam RD-4-300 STRUCTURAL GLASS Automatic Revolving Door System, with four door leaves, curved glazed fixed side screens, glass ceiling / canopy, complete with IP 65 rated in-floor mounted operator and CDC control. System including normal installation to comply with BS7036-0-2014 / BS-EN16005.
Dimensions:
Internal diameter: 1800 / 2100 / 2400 / 2700 / 3000mm
Overall diameter: XXXXmm (Int. Diameter + 52mm Std. or + 154mm for Night Closing Doors)
Opening Width (TW): 1237 / 1449 / 1661 / 1873 / 2085mm.
Internal Height: XXXXmm (Maximum 3000mm)
Glass Ceiling Trim Height: 45mm. Overall Height XXXXmm
(By others: - Prepared opening).
Standard equipment:
System: IN-FLOOR MOUNTED operator and controls, complete with IP 65 rated containment.
Trim finish: Besam powdercoat finish RAL ref: TBC or Premium Stainless Steel cladding: FINISH TBA
STRUCTURAL BOLTED GLASS Door Leaves: Rigid turnstile.
Glass type – Door Leaves: 12mm/15mm Clear toughened glass (Int. Hgt. >2600mm? then 15mm).
Door Seal: Slender aluminium profile perimeter trim and replaceable horse hair brush to three edges.
STRUCTURAL GLASS Outer Walls: Silicone bonded, with slender aluminium profiles to trim and joints.
Glass type – Outer Walls: 16.76MM 1B1 Clear laminated.
STRUCTURAL GLASS Ceiling / Canopy: Silicone bonded, with slender aluminium profiles to trim and joints.
Glass type - Ceiling / Canopy: 16.76MM 1B1 Clear laminated
Lighting: Imbedded LED glass ceiling 24V, 20 – 60W - OPTIONAL or NONE
Glass Ceiling Console: Concealed Sensor Housing or Standard 45mm Trim.
Control Console; Flush Mount full height Control Post to inner leading mullion or NONE.
Four Position Programme Selector: Standard SURFACE or FLUSH mounted (Optional Control Post).
Ground Ring; Circular Stainless steel 30 x 30 section formed to suit internal diameter.
Activation and control system:
CDC control unit with plug-in connections and switched mode power supply 100 – 230V.
Activation: PIR Motion Sensor Surface Mounted to the ceiling perimeter trim or within Concealed Sensor Housing.
Safety device(s):
PSPE Active soft rubber safety edges to: Outer wall leading mullion and door leaf bottom rail.
ESPE Presence Sensors to: each door leaf leading face
Additional ESPE Presence Sensors for Vulnerable Users to: Outer wall leading mullion or NONE.
Emergency Stop, on the inner leading mullion: Standard SURFACE or FLUSH mounted (Optional Control Post).
Disabled Slow Speed Switches: Standard SURFACE or FLUSH mounted (Optional Control Post) or NONE.
Locking mechanism:
Face fixed dead lock to one leaf or Face fixed dead locks to two leaves or Electro-Mechanical lock to the turnstile or Night Closing Doors with face fixed dead locks.
Maintenance:
Warranty with bi annual service visits for optimum performance and longevity
1 YEAR / 2 YEAR / 3 YEAR / 4 YEAR / 5 YEAR / 10 YEAR
Please consult ASSA ABLOY Entrance Systems Limited technical literature for further details and the quotation for project specific notes.
| Product url: | http://www.assaabloyentrance.co.uk/en/aaes/assaabloyentrancecouk/products/... |
|---|---|
| Installation instructions: | http://www.assaabloyentrance.co.uk/en/aaes/assaabloyentrancecouk/products/... |
| COBie Product Data Sheet: | |
| Product certification: | http://www.assaabloyentrance.com/en/aaes/aaes/about-us/sustainability/envi... |
| Technical description: | http://www.assaabloyentrance.co.uk/en/aaes/assaabloyentrancecouk/products/... |
| Instruction video: | https://www.youtube.com/user/ASSAABLOYEntrance |
| EAN code: |
The Qr code includes the static URL below and will bring you back to this page if scanned by a device like iPhone or smartphone
https://www.bimobject.com/en/besam/product/rd4-300
| Material main: | Aluminium |
|---|---|
| Material secondary: | Glass |
| Designed in: | Sweden |
| Manufactured in: | Czech Republic |
| BIMobject Category: | Doors - Revolving |
|---|---|
| IFC classification: | Door |
| UNSPSC name: | Doors |
| UNSPSC code: | 301715 |
| Uniclass 1.4 Code: | L411 |
| Uniclass 1.4 Description: | Doors |
| Uniclass 2.0 Code: | SS-25-30-20-70 |
| Uniclass 2.0 Description: | Revolving Doorset Systems |
| NBS Reference Code: | 25-30-20-70 |
| NBS Reference Description: | Revolving Doorset Systems |
| CSI MasterFormat 2014 Code: | 08 42 33 |
| CSI MasterFormat 2014 Title: | Revolving Door Entrances |
