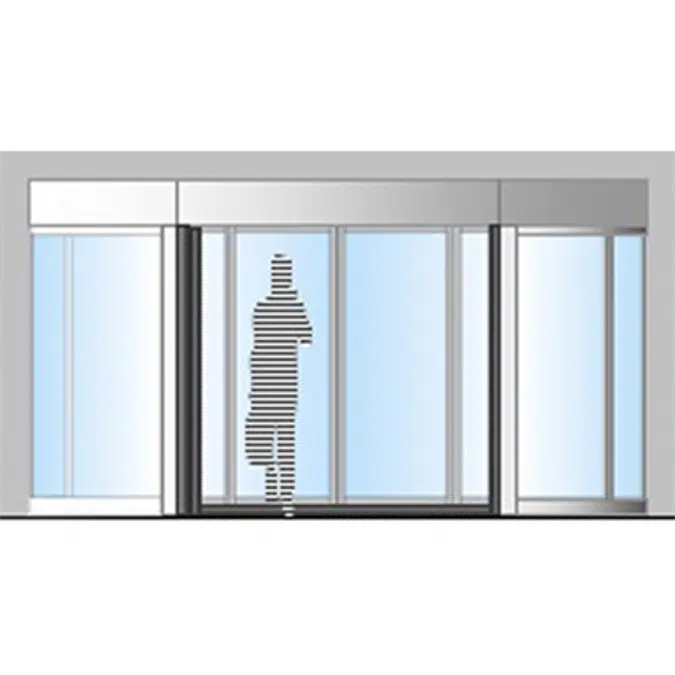

Large 2-wing revolving door 3.6 to 5.4 m ∅

Unique ref.: UniTurn
Brand: Besam-EMEA
Product family: Automatic Revolving Doors
Product group: ASSA ABLOY Large 2-wing UniTurn
Date of publishing: 2014-03-28
Edition number: 2
Type: Object (single object)

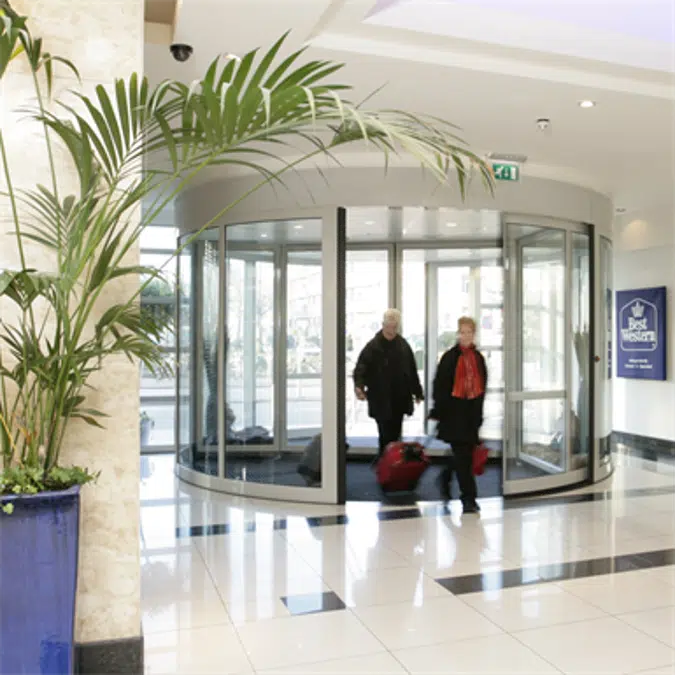

The 2-wing Besam UniTurn is a spacious revolving door for high-traffic entrances. It provides excellent separation of the interior and exterior environments, reducing heating and/or cooling losses. It also features two enclosed display cases within the rotating door leaves that can be used for informational promotions or advertising.
  • High-traffic capacity
  • Built-in display cases
  • Optimal safety
  • Reduces heating and/or cooling losses

Models:

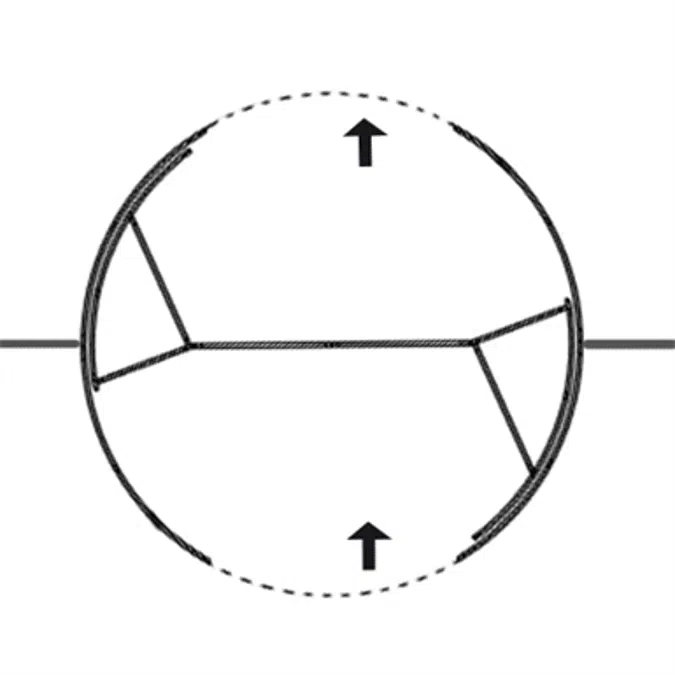

Besam UniTurn Automatic High Capacity Revolving Door, with two centre passage pivoted break out doors. Glazed outer walls and canopy enclose a whole rotating radially segmented ceiling, fixed dustcovers and load bearing peripheral drive with CDC control. Including normal installation to comply with EN16005.

Dims:
Internal diam: 3600/4200/4800/5400mm
Overall diam: XXmm (Int. Diam + 90mm Std.)
Opening Width (TW): 1800/2100/2400/2700mm.
Opening Width between folded leaves: 2000/2300/2600/2900mm
Internal Height: XXmm (Max 2600mm)
Fascia Height: 340mm or 341 – 1250mm Max. Overall Height XXXXmm
(By others: - Prepared opening).

Std equipment:
System: CANOPY MOUNTED drive, brake and controls.
Frame finish: SAA or Bronze Anodised or Besam powdercoat RAL ref: TBC or Premium / Value Stainless Steel cladding: FINISH TBC
FRAME Door Leaves: Std Breakout leaves, ElectroMechanical release, manual release force 150N Max.
Glass type – Door Leaves: Std 6.4mm 2B2 or 9.14mm P2A Clear laminated glass.
Door Seal: Replaceable horse hair brush.
Rotating Showcases: Comprising fixed glazed screens and glazed door with deadlock.
Frame Outer Walls: Curved glazed side screens.
Glass type – Outer Walls: Standard Std 8.76MM 1B1 or 9.14mm P2A or 10.28mm P4A or 13mm P5A Clear laminated.
Eight Position Programme Selector: Std FLUSH or REMOTE mounted.
Ceiling finish: White Melamine or Formica Colour XX
Dustcover finish: White Melamine or Formica Colour XX
Lighting: Twelve No. 12VAC/DC LED spotlights
Climate Control: Electric or water heated air curtain with radial outlet plenum WITHIN the standard overall canopy diameter or None.
Canopy / Roof Construction: Std dust cover.
Canopy Cover; 180 or 360 Degree Weather resistant cover draining to water spouts or NONE
Ground Ring; Circular Stainless steel 40 x 40 section formed to suit internal diameter, supplied with height and level adjustable fixing brackets.

Activation and control system:
CDC control unit with plug-in connections and switched mode power supply 100 – 230V.
Activation: Standard two Direction Sensing Radars, concealed behind each canopy fascia.
Park Control: Std Parking Brake, secures the door between each activation.
Entrapment Control: Standard Re-impulse button within the closed compartment.

Safety device(s):
PSPE Active soft rubber safety edges to;
ESPE Presence Sensors:
Passive soft rubber buffers to Outer wall mullions.
Emergency Stop, on the inner leading mullion: Std FLUSH mounted.
Disabled Slow Speed Switches: Std FLUSH mounted.

Locking mechanism:
Standard Electro-Mechanical locking of the rotating showcase.

Maintenance:
Warranty with two service visits per annum for optimum performance and longevity
1YEAR/2YEAR/3YEAR/4YEAR /5YEAR/10YEAR
Please consult ASSA ABLOY Entrance Systems technical literature for further details and the quotation for project specific notes.


Material main: Aluminium
Material secondary: Glass
Designed in: Sweden
Manufactured in: Czech Republic

BIMobject Category: Doors - Revolving
IFC classification: Door
UNSPSC name: Doors
UNSPSC code: 301715
Uniclass 1.4 Code: L411
Uniclass 1.4 Description: Doors
Uniclass 2.0 Code: SS-25-30-20-70
Uniclass 2.0 Description: Revolving Doorset Systems
NBS Reference Code: 25-30-20-70
NBS Reference Description: Revolving Doorset Systems
CSI MasterFormat 2014 Code: 08 42 33
CSI MasterFormat 2014 Title: Revolving Door Entrances
This product is available in:
Asia
  • Armenia
  • Azerbaijan
  • Bangladesh
  • Bhutan
  • British Indian Ocean Territory
  • Brunei
  • Cambodia
  • China
  • Christmas Island
  • Cocos (Keeling) Islands
  • Georgia
  • Hong Kong
  • India
  • Indonesia
  • Japan
  • Kazakhstan
  • Kyrgyzstan
  • Laos
  • Macau
  • Malaysia
  • Maldives
  • Mongolia
  • Myanmar (Burma)
  • Nepal
  • North Korea
  • Pakistan
  • Philippines
  • Singapore
  • South Korea
  • Sri Lanka
  • Taiwan
  • Tajikistan
  • Thailand
  • Turkmenistan
  • Uzbekistan
  • Vietnam
Europe
  • Albania
  • Andorra
  • Austria
  • Belarus
  • Belgium
  • Bosnia and Herzegovina
  • Bulgaria
  • Croatia
  • Cyprus
  • Czech Republic
  • Denmark
  • Estonia
  • Faroe Islands
  • Finland
  • France
  • Germany
  • Gibraltar
  • Greece
  • Guernsey
  • Hungary
  • Iceland
  • Ireland
  • Isle of Man
  • Italy
  • Jersey
  • Latvia
  • Liechtenstein
  • Lithuania
  • Luxembourg
  • Macedonia (FYROM)
  • Malta
  • Moldova
  • Monaco
  • Montenegro
  • Netherlands
  • Norway
  • Poland
  • Portugal
  • Romania
  • Russia
  • San Marino
  • Serbia
  • Slovakia
  • Slovenia
  • Spain
  • Svalbard and Jan Mayen
  • Sweden
  • Switzerland
  • Ukraine
  • United Kingdom
  • Vatican City
  • Åland Islands
Middle East
  • Afghanistan
  • Bahrain
  • Egypt
  • Iran
  • Iraq
  • Israel
  • Jordan
  • Kuwait
  • Lebanon
  • Oman
  • Palestine
  • Qatar
  • Saudi Arabia
  • Syria
  • Turkey
  • United Arab Emirates
  • Yemen

ARCOM The Specification experts

Arcom Product Master Spec properties

Arcom Product Master Spec properties

Specifications for the Construction industry AIA Masterformat

Name Value
Link to Product MasterSpec http://www.productmasterspec.com/documents/69143/084233_FL_REVOLVING DOOR ENTRANCES.DORMA America.BoD.doc

COBie UK

UK.COBie.Type

UK.COBie.Type

This property set allows objects to be COBie UK BIM Level 2 classified

Name Value
COBie.Type.AccessibilityPerformance Pedestrian access
COBie.Type.AssetType Fixed
COBie.Type.Category Pr_30_59_24_04
COBie.Type.CodePerformance P21
COBie.Type.Color RAL powder coating
COBie.Type.Constituents Diameter, internal height, surface treatment, lock
COBie.Type.CreatedBy info.uk.aaes@assaabloy.com
COBie.Type.CreatedOn 2002-05-21T8:00:00
COBie.Type.Description Automatic revolving door system
COBie.Type.DurationUnit Year
COBie.Type.Features Pedestrian automatic revolving doors are installations that serve to automatically regulate the flow of people in residential and non-residential buildings while providing high thermal performance.
COBie.Type.Finish Aluminum & glass
COBie.Type.Grade N/A
COBie.Type.Manufacturer info.uk.aaes@assaabloy.com
COBie.Type.Material Glass 41% and Aluminum 22%.
COBie.Type.ModelNumber 264975, 264976
COBie.Type.ModelReference Besam UniTurn
COBie.Type.Name Besam UniTurn
COBie.Type.NominalHeight 4800
COBie.Type.NominalLength 0
COBie.Type.NominalWidth 2540
COBie.Type.ReplacementCost 2
COBie.Type.Shape Cylinder
COBie.Type.Size Diameter 3,6-5,4m internal height 2-2,6m, external height 3,9m
COBie.Type.SustainabilityPerformance N/A
COBie.Type.WarrantyDescription Supplier Warranty
COBie.Type.WarrantyDurationLabor 0
COBie.Type.WarrantyDurationParts 0
COBie.Type.WarrantyDurationUnit Year
COBie.Type.WarrantyGuarantorLabor info.uk.aaes@assaabloy.com
COBie.Type.WarrantyGuarantorParts info.uk.aaes@assaabloy.com
