Entrematic

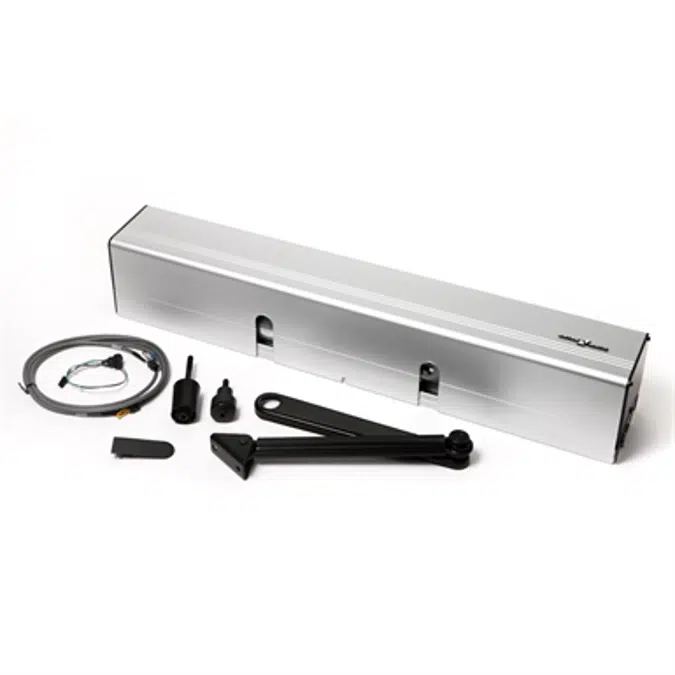

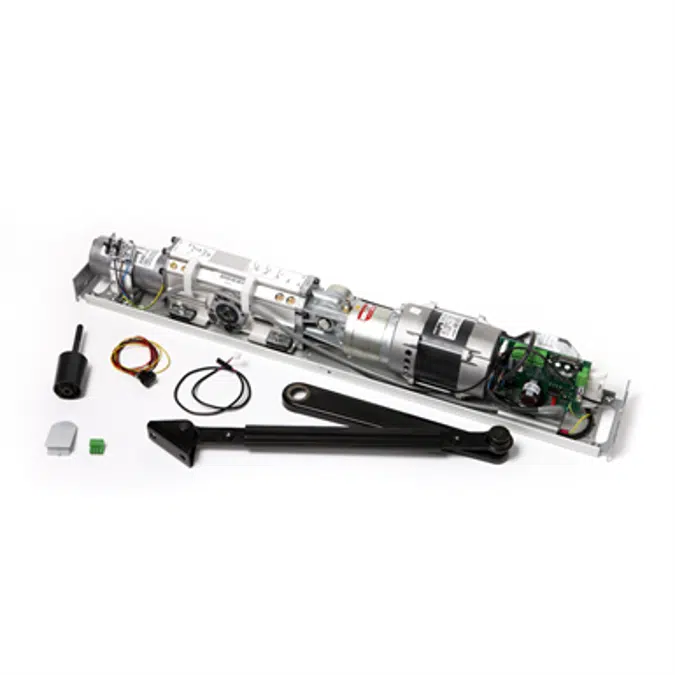

Entrematic EM EMSW Swing Door Operator

The Entrematic EMSW Swing Door Operator is an electro-hydraulic operator suitable for a wide range of applications: From handicapped-access in private homes to retail operations, hospitals or public buildings with large and heavy doors and high-traffic environments. The operator is fire approved and appropriate for both interior and exterior use. Robust and durable, the EMSW from Entrematic can be mounted on either side of the door for pull or push action and is available for single or double doors. The Entrematic EMSW can be combined with the full range of EM Entrematic safety and activation units, including sensors, electromechanical locks and access-control devices.
Specification
  • Entrematic EMSW Swing Door Operator

    The Entrematic EMSW Swing Door Operator is an electro-Hydraulic swing door operator suitable for internal and external doors in a wide variety of applications such as retail, hotel, office, airports, stations, hospitals, Schools, industrial and commercial applications. The operator is fully approved for all possible installation environments such as escape routes or fire doors. It can be installed universally in push, pull, sliding-push usage as well as synchronized for double doors with mechanical coordination unit available.

    Product reference: Entrematic EMSW Swing Door Operator
    Product properties
    • Door type: Single or double door
    • Finish: Clear anodized
    • Color options: silver or back (arm system and end plates)
    • Power: low energy or full power operation options (according to EN160005)
    • Operator size: 110 mm height x 110 mm depth x 716 mm width
    • Safety features: Emergency opening, in the event of power failure or fire alarm the door can be used manually (like a door closer). Optional finger safety guards and safety sensor to prevent contact with moving door leaves.
    Standard
    • Separate units for push or pull operation with fitting arm systems
    • Automated swing-in or swing-out operator. Face mounted.
    • Opens with power, closes hydraulic
    • Built in program selector 3-way switch located on side of operator; 4-way key switch with exit mode optional
    Operation
    • Electro-hydraulic operation
    • Learn function
    • Wind load regulation, Max force Push: opening=95 Nm, closing= 165 Nm, Pull: opening= 55 Nm, closing 108 Nm
    • Push & Go function
    • Servo assist
    • In the event of power failure, door is closed in a controlled by the spring and stands as a door closer.
    • Hold open time 0- 30 Seconds
    • Max. drive power consumption 230 W
    • Max. opening angle 110 degrees
    • Door panel weight: Max 250 kg´s
    • Power requirements: Max 10A fuse
    Options
    • Dry contact for transmission of data to building’s central control system.
    • Connection possibilities for electric locks/locking mechanism.
    • Possibility to remote control.
    • Contactless detection sensor.
    • Double door synchronisation with cable and mechanical coordinator (for fire doors), full length cover optional.
    • The EMSW complies with
    - EN 1154 size 3-6 (controlled door closing)
    - EN 1158 (coordination unit for rebated doors)
    - EN 16005
    - UL 325
    - ANSI / BHMA A156.10, A156.19
    - DIN 18263-4 AU size 3-6
    - SITAC 0710/97, 0166/99 (fire door)
Technical specification
  • Unique ref.entrematic-emsw-swing-door-operator
  • Collection setAutomatic Doors
  • CollectionSwing Automatic Doors
  • TypeObject (single object)
  • Date of publishing2017-05-01
  • Edition number1
  • Height (mm)110
  • Width (mm)716
  • Depth (mm)110
Related
  • Material mainAluminium
  • Material secondaryAluminium
  • Designed inSweden
  • Manufactured inCzech Republic
  • Weight Net (Kg)13.6
Classification
  • BIMobject CategoryDoors - Openers
  • IFC classificationDoor
  • UNSPSC nameDoor openers
  • UNSPSC code30171512
  • Uniclass 1.4 CodeL41811
  • Uniclass 1.4 DescriptionDoor openers
  • Uniclass 2.0 CodePR-25-26-xx
  • Uniclass 2.0 DescriptionDoor Access Controllers
  • Uniclass 2015 CodePr_75_30_23_09
  • Uniclass 2015 DescriptionAutomatic swing-door operators
  • NBS Reference Code25-26-xx
  • NBS Reference DescriptionDoor Access Controllers
  • CSI MasterFormat 2014 Code08 71 13
  • CSI MasterFormat 2014 TitleAutomatic Door Operators
  • OmniClass Number23-17 19 11
