ARS-62 HO 2-hojas ventana + fijo inf

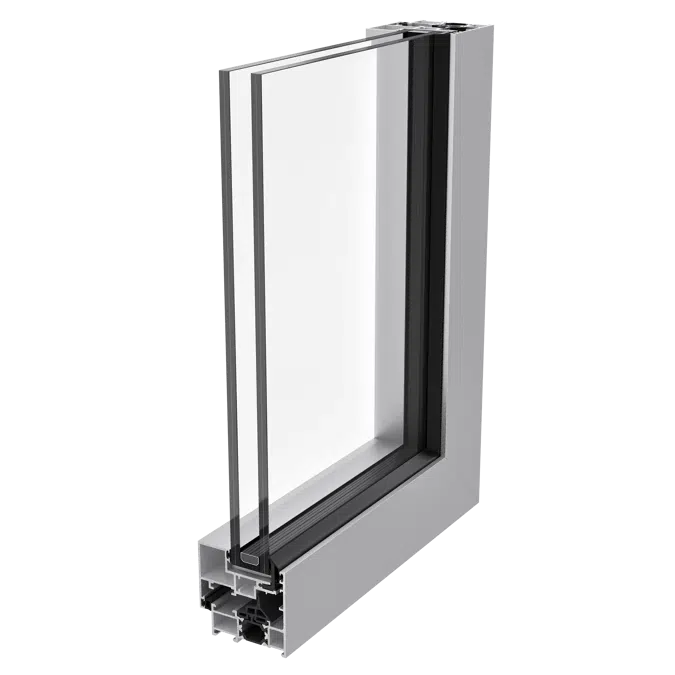

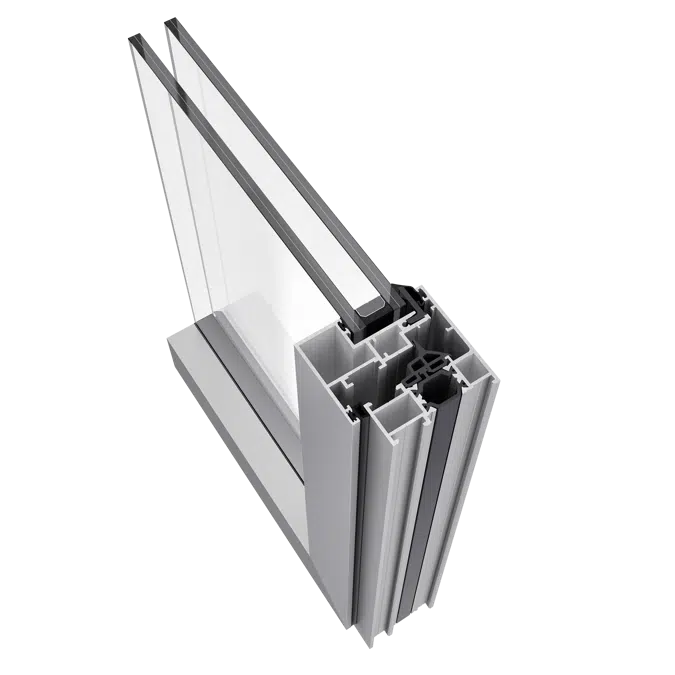

The ARS-62 HO hiden sash system stands out for its minimalist and discreet style, in line with the contemporary architecture demands. Its reduced frame with a visible section of 65 mm makes glass the main element, enhancing the opening to the outside of any room and allowing the maximum use of natural light at the same time. Thanks to its excellent features the system achieves remarkable results in terms of AEV performance, acoustic attenuation, and thermal insulation. Thus, the ARS-62 HO system is the perfect option for building projects seeking minimalist aesthetics and the best quality-design-price relation.

Specification

• Frames of 62,5 mm with RPT • Compatible with CRS-77 eLite sliding door • European Channel fittings • Triple gasket, interior, central and exterior water tightness • Glazing up to 32 mm • Up to 120 kg per sash • Maximun sash height: 2300 mm • Type III ecolabel, Enviromental Product Declaration (EPD) with cradle to grave range

Technical specification

Unique ref.EXL_ARS-62HO_w_2p_casement-tilt_and_turn_and_fixed
Product familyHinged Series
Product groupEXLABESA ARS-62 HO
TypeObject (single object)
Date of publishing2022-01-24
Edition number1
Height (mm)1500
Width (mm)1200
Depth (mm)62

Links

Product urlhttps://exlabesa.com/es/ars-62-ho
Product certificationhttps://exlabesa.com/DAP_CONS.pdf
Technical descriptionhttps://exlabesa.com/es/ars-62-ho

Related

Material mainAluminium
Material secondaryGlass
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryWindows - Single Hung Windows
IFC classificationWindow
UNSPSC nameWindows
UNSPSC code301716
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 51 13
CSI MasterFormat 2014 TitleAluminum Windows
OmniClass Number23-17 13 00
OmniClass TitleWindows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows
