Tronic Shower Mixer outlet up

Tronic Shower Mixer outlet up

Archived

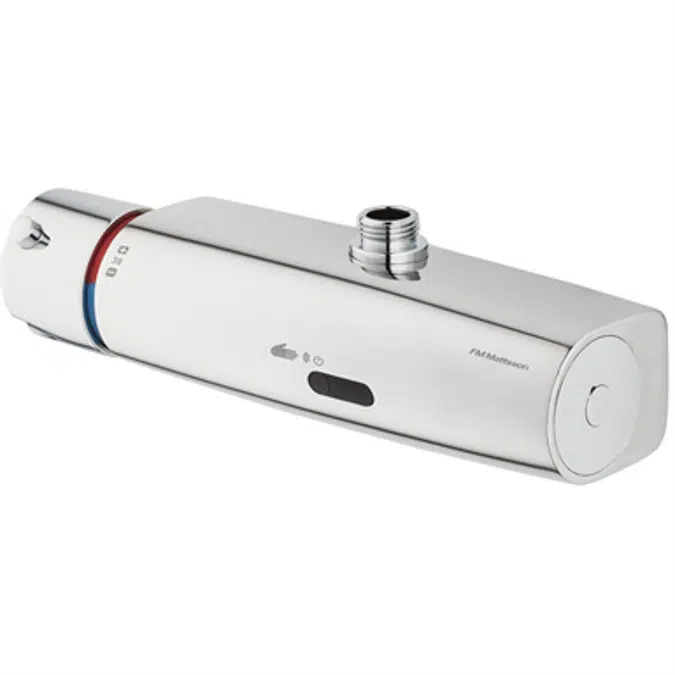

Tronic Shower Mixer outlet up

A new generation of sensor operated mixers. Perfect for public shower areas, camping sites etc. All technical parts integrated in the mixer body for easy maintenance. Programmable functions such as hygiene flush, rinsing times and cleaning mode. Chrome. 160 c/c. RSK 8359097 16811500 150 c/c RSK 8359103 NRF 4301839 VVS 704366304

Specification

With thermostatic valve (for stabile termpature). 1/2" outlet up Vandal safe, solid brass mixer. Battery operation (incl. battery) possible to convert to mains operation. Safety stop at 38° C and adjustable max temperature, preset to 42° C . Flush time-out to prevent flooding. 3 min rinse time via sensor. Cleaning mode via magnetic plate. IP Class 67 on sensor.

Technical specification

Unique ref.16810000
Product familyElectronic mixers
Product groupFM Mattsson Tronic
TypeObject (single object)
Date of publishing2017-05-05
Edition number1
Height (mm)57
Width (mm)234
Depth (mm)60

Links

Related

Material mainBrass
Material secondaryZinc
Designed inSweden
Manufactured inSweden
Weight Net (Kg)3.5

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationFurnishing Element
UNSPSC namePlumbing fixtures
UNSPSC code3018
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures
