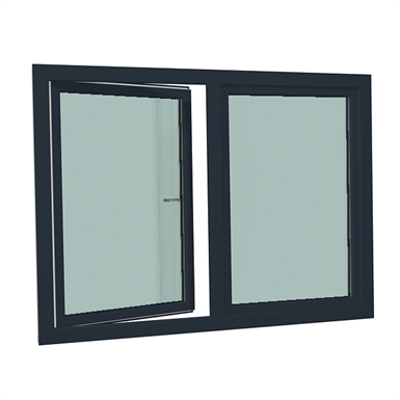

S9000 Double-vent window with Sash bars (variable number of Sash bars)

S9000 Double-vent window with Sash bars (variable number of Sash bars)

The S 9000 is a versatile, state-of-the-art system for windows, doors, and lift-slide doors (sliding doors) with a choice of two or three sealing levels.

Are you looking for a tool that allows you to generate high-quality window and door BIM-models for Revit and ArchiCAD in just a few minutes?
Then use our Plug-In for Revit and Add-On for ArchiCAD. Here you have the option of selecting the right model for your project from preset windows and doors. Can't find the right window or door model? No problem. Then you can use the function "free construction" to design your desired window or door yourself. Architects and planners can use the tool for free.

Benefits of the Revit Plug-In and ArchiCAD Add-On:
- Easy BIM-model creation of windows and doors
- High quality BIM-models with 2D section drawings
- Different levels of detail (LOD) for 2D and 3D views
- Display of window sills, handles and opening lines
- Alphanumeric data for BIM-models
- Automatic calculation of the U-value for windows and doors
- Small data size of the BIM-models
- Various reveal parameters to optimally install the window and door elements in the wall
- Project function with project exchange
- Automatic creation of the specifications of performace characteristics

Possible BIM-models for windows and doors:
Window BIM-models: Standard window, tilt and turn window, corner window, pointed window, inclined window, round arch window, triangular window, round window and much more

Door BIM-models: Front door, balcony door, patio door, lift and slide door, sliding door, french door with treshold and many more

More information on our BIM-Website:
www.gealan.de/en/architects-designers/bim

You are welcome to contact us: bim@gealan.de

Specification
  • • Thermal Insulation (in W/m2K): up to Uw = 0,72 (standard size)

    • Sound reduction window: up to Rw = 48 dB

    • Burglar-inhibiting window: RC1, RC2, RC2N

    • Construction depth: 82.5 mm

    • Iron mounting: concealed or visible

    • Maximum outer frame size:

    Width: 1550 mm

    Height: 2500 mm

    Please notice: width and height of the element are depending on the construction type!

    Optional available with:

    • IKD® (intensive core insulation)

    • STV® (static dry glazing)

    • Acrylcolor

    • Foiled (uni-colours and wood decor)

    • Aluminium shell

    • Overlap gasket

    Realizable are:

    • Passive house windows

    • KfW-55 windows

    • KfW-70 windows

    • Fixed windows

    System complementary elements for windows and doors are available.

    Window elements: Standard window, Tilt and turn window, Corner window, Pointed window, inclined window, Round arch window, triangular window, round window and much more

    Door elements: Front door, Balcony door, Lift and slide door and much more

Technical specification
  • Unique ref.s9000_Double-vent_window_6016_6003_6012_with_sashbars
  • Collection setPVC Window
  • CollectionS9000 Windows
  • TypeObject (single object)
  • Date of publishing2022-03-10
  • Edition number1
  • Height (mm)2500
  • Width (mm)1550
  • Depth (mm)82.5
Related
  • Material mainPVC
  • Material secondaryGlass
Classification
  • BIMobject CategoryWindows - Single Hung Windows
  • IFC classificationWindow
  • UNSPSC nameWindows
  • UNSPSC code301716
  • Uniclass 2015 CodeEF_25_30
  • Uniclass 2015 DescriptionDoors and windows
  • CSI MasterFormat 2014 Code08 50 00
  • CSI MasterFormat 2014 TitleWindows
  • OmniClass TitleWindows
  • OmniClass Number23-17 13 00
  • CSI UniFormat II CodeB2020
  • CSI UniFormat II TitleExterior Windows
