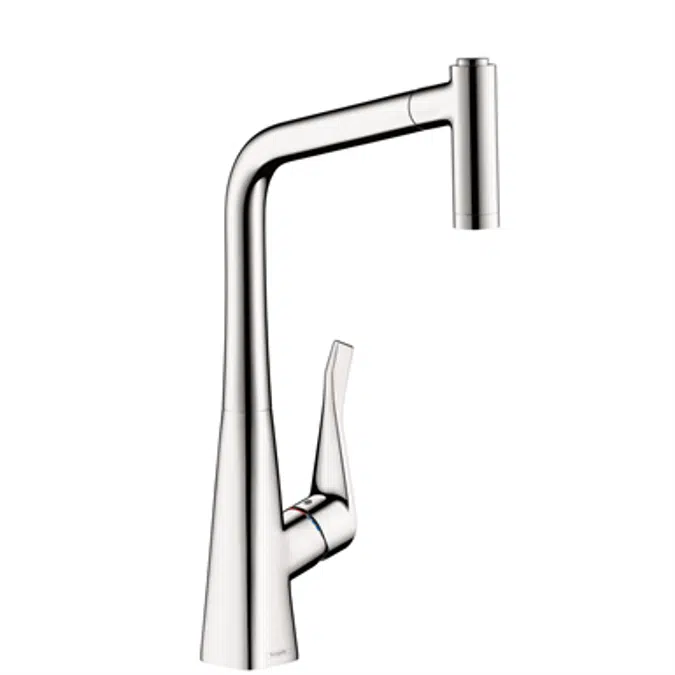

Metris Single lever kitchen mixer 320 with pull-out spray

Specification

Specification

• Surfaces: - 14820001 Chrome - 14820801 Stainless Steel Optic Specification: • ComfortZone 320 • swivel range adjustable in 2 steps to 110° or 150° • laminar spray, shower spray • lockable shower spray, spray returns automatically through handle closing • MagFit magnetic shower support • quick connect hose • maximum flow rate at 3 bar: 6,6 l/min • ceramic cartridge • connection type: G ⅜ connections • temperature limitation adjustable • integrated non-return valve • suitable for continuous flow water heaters • extension length up to 50 cm

Technical specification

Technical specification

• Unique ref.14820001
• Product familyKitchen mixers
• Product groupMetris
• TypeObject (single object)
• Date of publishing2018-01-15
• Edition number1
• Height (mm)431
• Width (mm)138
• Depth (mm)279

Links

Links

• Product urlhttps://www.hansgrohe-usa.com/articledetail--14820001

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)3.1

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationValve
• ETIM CodeEC011431
• ETIM NameKitchen mixing tap
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_87_84
• Uniclass 2015 DescriptionSink taps
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
