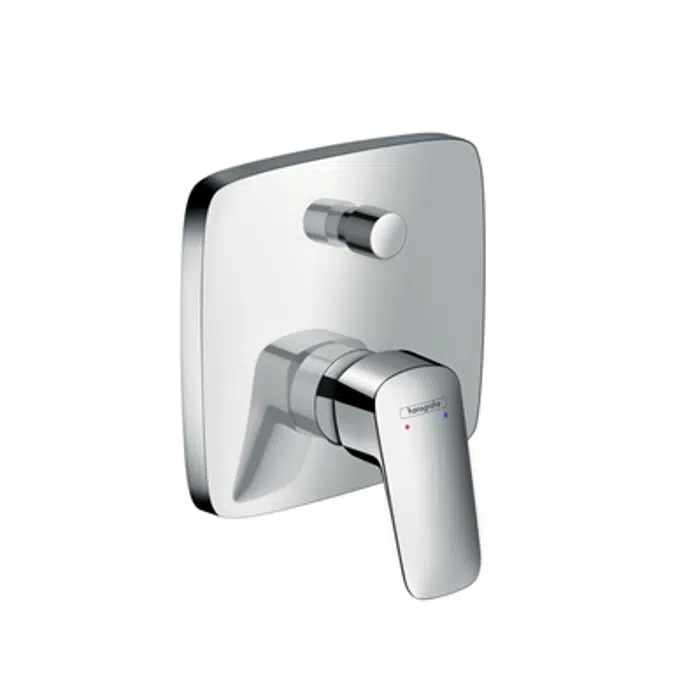

Logis Single lever bath mixer for concealed installation

Logis Single lever bath mixer for concealed installation

Logis Single lever bath mixer for concealed installation

Logis Single lever bath mixer for concealed installation for iBox universal

Specification

Surfaces: - 71405003 Chrome Specification: • 2 functions • flow rate upper outlet: 21 l/min • flow rate lower outlet: 29 l/min • ceramic cartridge • temperature limitation adjustable • diverter with automatic resetting • connection type: basic set

Technical specification

Unique ref.71405003
Product familyBath mixers
Product groupLogis
TypeObject (single object)
Date of publishing2018-01-25
Edition number1

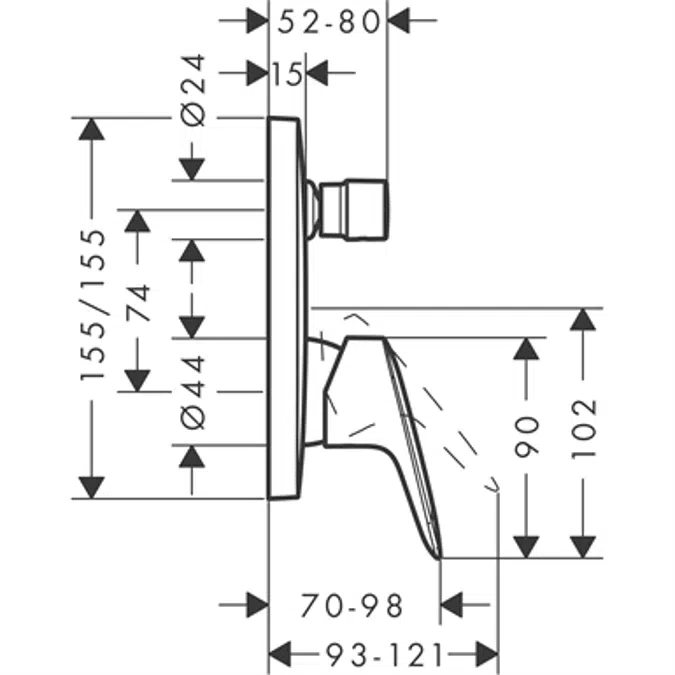

Height (mm)179
Width (mm)155
Depth (mm)81

Links

Product urlhttps://www.hansgrohe.com.au/articledetail--71405003

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)0.5

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC010862
ETIM NameBath mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

Oceania
Australia
