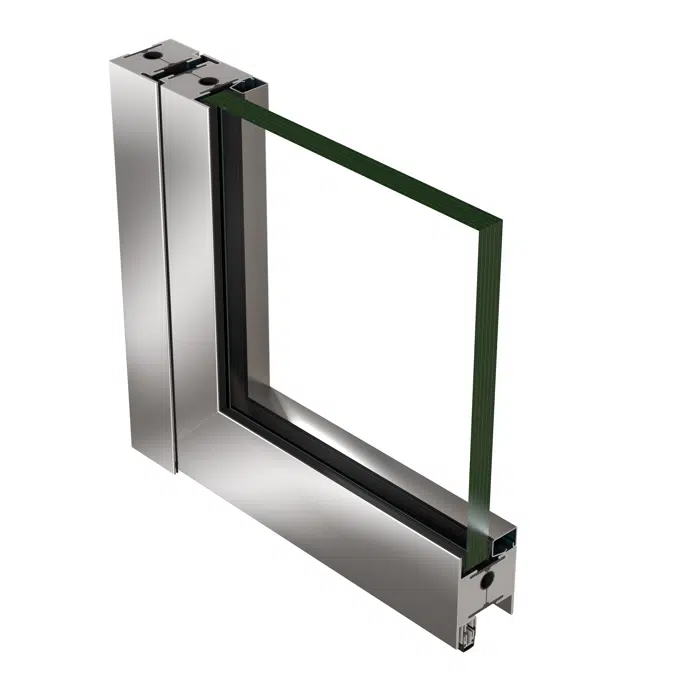

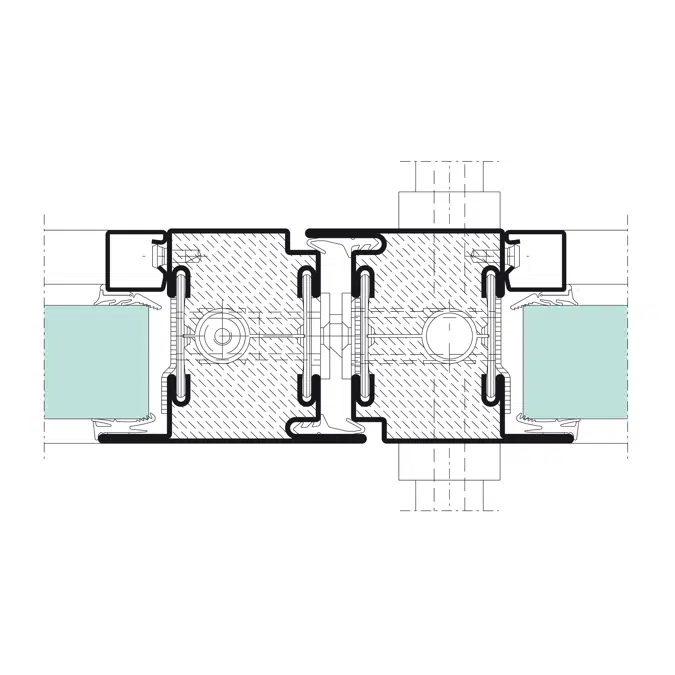

Door Janisol C4 EI60/EI90, single leaf - outward opening

Door Janisol C4 EI60/EI90, single leaf - outward opening

Jansen has put the advantages of ceramic to good use. The result is fire protection doors that optimally combine strength with the highest fire protection characteristics. Thanks to the innovative fire protection infill, it is possible to achieve fire resistance classes of up to EI90 with an element thickness of just 70 mm. Fittings, locks and accessories can easily be integrated in the profiles.

Specification

Material / surface finish
- Uncoated steel or strip-galvanised steel, up to EI90 suitable for powder coating or stove-enamelling
- Stainless steel 1.4301, uncoated or polished
Element types
- Single and double doors, with or without side panels and transom windows
- Partition walls
Equipment
- Steel and stainless steel hinges for welding or screw-fit
- Integrated door closers for EI60
- Multipoint locks (motorised also available)
- Designer glazing beads
- Emergency locks and panic push-bars
Special technical features
- Connection to solid wall or lightweight partition wall
- Central glazed panel
- Dry glazing and glazing with putty
- Door heights up to 2.50 m with single-latch lock
Test certificates
- Fire resistance classes EI60 and EI90 tested in accordance with EN 1634-1 and DIN 4102-5
- Fire wall – special design EI120
- Smoke control in accordance with DIN 18095
- Smoke control tested in accordance with EN 1634-3
- Durability (C5) tested in accordance with EN 1191
- Emergency exit door in accordance with EN 1125 / EN 179
- Burglar resistance RC (WK) 1 to 3

Technical specification

Unique ref.janisol_c4_ei_60_single-leaf_outward_opening
Collection setSteel doors - Fire safety
CollectionJanisol C4 EI60
TypeObject (single object)
Date of publishing2016-02-29
Edition number5
Depth (mm)70

Links

Product urlhttps://www.jansen.com/en/building-systems-profile-systems-steel/products/detail/fire-protection-door-janisol-c4-ei60-ei90.html
Instruction videohttps://www.youtube.com/watch?v=yoRWv9nO-GM&t=130s
Technical descriptionhttps://docucenter.jansen.com/jansen/mobile/login.php?LID=en&_=970312323&fwd=true

Material mainSteel
Designed inSwitzerland
Manufactured inSwitzerland

Classification

BIMobject CategoryDoors - Swing
IFC classificationDoor
UNSPSC nameDoors
UNSPSC code301715
Uniclass 1.4 CodeL41121
Uniclass 1.4 DescriptionFiredoors
Uniclass 2.0 CodeSS-25-30-20-20
Uniclass 2.0 DescriptionDoorset Systems
Uniclass 2015 CodePr_30_59_24_52
Uniclass 2015 DescriptionMetal doorsets
NBS Reference Code25-30-20-20
NBS Reference DescriptionDoorset Systems
ProductPage.DetailedInfo.Classifications.COBIetypeCategorySs_25_30_20_25 : Doorset systems
CSI MasterFormat 2014 Code08 13 00
CSI MasterFormat 2014 TitleMetal Doors
OmniClass Number23-17 11 13 15
CSI UniFormat II CodeC1020
CSI UniFormat II TitleInterior Doors
