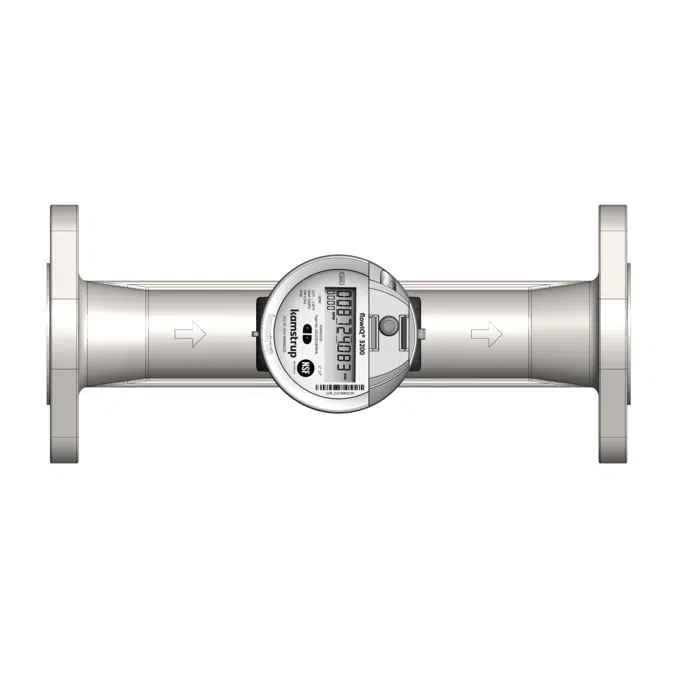

flowIQ®3200-KWM3220-US, GPM= 120, Flanged 1½" / 1½” x 13”

flowIQ®3200-KWM3220-US, GPM= 120, Flanged 1½" / 1½” x 13”

flowIQ®3200-KWM3220-US, GPM= 120, Flanged 1½" / 1½” x 13”

flowIQ®3200-KWM3220-US, GPM= 120, Flanged 1½" / 1½” x 13”

flowIQ®3200-KWM3220-US, GPM= 120, Flanged 1½" / 1½” x 13”

flowIQ®3200-KWM3220-US, GPM= 120, Flanged 1½" / 1½” x 13”

Kamstrup smart water meters.

flowIQ® 3200 is constructed with a flow part of stainless steel and is IP68 rated, meaning it can be installed and continually immersed in water without any risk of water ingress to the meter display or internal components. Industrial water meter uses a bidirectional ultrasonic measuring technique to ensure commercial and industrial water consumption is measured accurately at both high and low flow rates. With no moving parts, the meter will maintain the same accuracy as the day it was installed.

Specification

flowIQ® 3200
- Dual band radio
- AMR (Walk-by/drive-by)
- AMI (Fixed network)
- Ultrasonic measurement
- Sustainable measurement accuracy
- IP68 Vacuum sealed construction
- Lead free and certified to NSF/ANSI 61
- Flow measurement in display

Technical specification

Unique ref.02-L-YY-D-X-8F-8UB
Product familyWater Meters
Product groupflowIQ®3200
TypeObject (single object)
Date of publishing2022-10-13
Edition number1
Height (inches)8.1
Width (inches)13
Depth (inches)5.7

Links

Product urlhttps://www.kamstrup.com/en-us/water-solutions/smart-water-meters/meters/flowiq-3200-us
Installation instructionshttps://www.kamstrup.com/en-us/water-solutions/smart-water-meters/meters/flowiq-3200-us/documents
Technical descriptionhttps://www.kamstrup.com/en-us/water-solutions/smart-water-meters/meters/flowiq-3200-us/documents

Related

Material mainStainless steel
Material secondaryComposite
Designed inDenmark
Manufactured inDenmark
Weight Net (Lbs)13

Classification

BIMobject CategoryPlumbing - Other Plumbing
IFC classificationFlow Terminal
ETIM CodeEG000045
ETIM NameMeters
UNSPSC nameMetering or injection or proportioning pumps
UNSPSC code40151552
Uniclass 2015 CodePr_80_51_51_97
Uniclass 2015 DescriptionWater meters
CSI MasterFormat 2014 Code40 71 66
CSI MasterFormat 2014 TitleTransit Time Flow Meters
OmniClass Number23-39 27 00
OmniClass TitleWater Utility Equipment

Region availability

North America
United States
