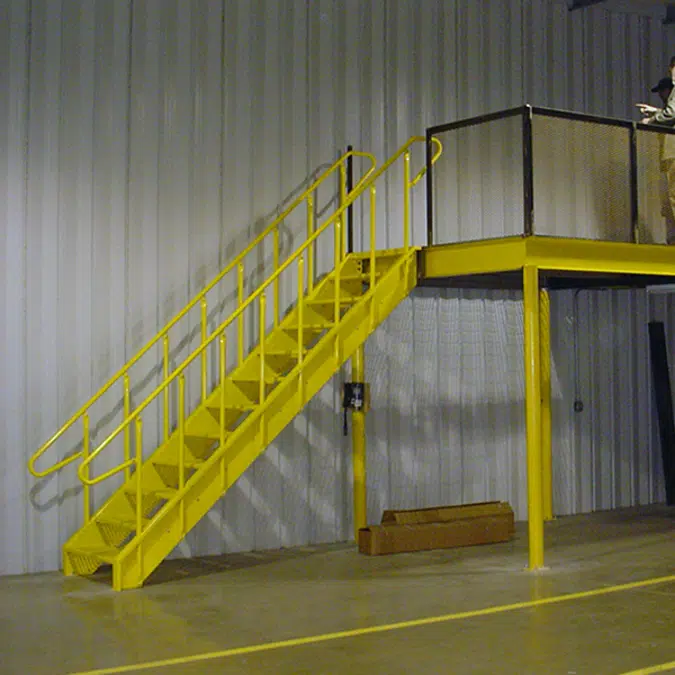

Bolted Access Stair, Models 01/02

Bolt together metal stairs: steel bolted access stair systems

Pre-engineered standard stairs with an easy-to-assemble erection bolt design.

Benefits of bolted access stairs

✔ Same business day pricing and drawings
✔ Simple assembly on-site, even in compact spaces
✔ Cost-effective solution for retrofits and renovations
✔ Knock-down design ships flat
✔ No welding or expensive equipment required for installation

Code compliance

✔ OSHA-compliant stairs
✔ IBC-compliant stairs

Stairs for structural steel construction and large-scale projects

Our commercial steel stairs are a complete outsource solution for steel welded egress stair systems that includes estimating, design, detailing, and dedicated project management.

_________________________________________________________________________________________________________________

Our bolt-together Models 01AA and 02AA are designed for the following applications:

  • Industrial egress stairs
  • Industrial equipment and mezzanine access stairs
  • Industrial secondary access stairs

Model 01AA is for stairs up to 12 feet, and Model 02AA is for stairs between 12 feet and 20 feet.



Our bolt-together systems are the simplest and most cost-effective stair solutions available.

  • Because the engineering and design capabilities are built into our computer system, we can provide you with pricing and project drawings within minutes over the phone.
  • Bolt-together stairs can be shipped completely unassembled, greatly reducing shipping costs compared to welded stair systems.
  • Bolt-together stairs require no welding or expensive installation equipment and can be assembled within compact spaces.

Specification
  • Applications
    ✔ OSHA-compliant access
    ✔ Industrial egress
    ✔ Industrial equipment access
    ✔ Crossover systems
    ✔ Industrial secondary access
    ✔ Mezzanine access
    ✔ Dock stair
    ✔ Catwalk access


    Specifications and options for OSHA-compliant bolted access stairs
    DIMENSIONS  MINIMUM/MAXIMUM
    Stair height 18"/240"
    Stair angle (stair heights up 123") 25°/ 50°
    Stair angle (stair heights 124" and up) 29°/ 50°
    Riser height 4" / 10"
    Rail height 30" / 43"
    Baluster spacing (spherical clearance) 3¾" / 36"
    Tread width (inside stair width) 24" / 48"

Technical specification
  • Unique ref.bolted-access-stairs-01-02
  • Collection setStairs
  • CollectionBolted Access Stairs
  • TypeObject (single object)
  • Date of publishing2015-05-13
  • Edition number1
Related
  • Material mainMetal
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryConstruction - Stairs
  • IFC classificationStair
  • UNSPSC nameStair parts
  • UNSPSC code30161908
  • Uniclass 1.4 CodeL4322
  • Uniclass 1.4 DescriptionStairs
  • Uniclass 2.0 CodePR-84
  • Uniclass 2.0 DescriptionStair And Ladder Products
  • Uniclass 2015 CodePr_25_30_85
  • Uniclass 2015 DescriptionStair and ladder units
  • NBS Reference Code84
  • NBS Reference DescriptionStair And Ladder Products
  • CSI MasterFormat 2014 Code05 51 00
  • CSI MasterFormat 2014 TitleMetal Stairs
  • OmniClass Number23-17 23 17
  • CSI UniFormat II CodeC2010
  • CSI UniFormat II TitleStair Construction
