SP FP FIX GEN2

SPOT FIRE RATED

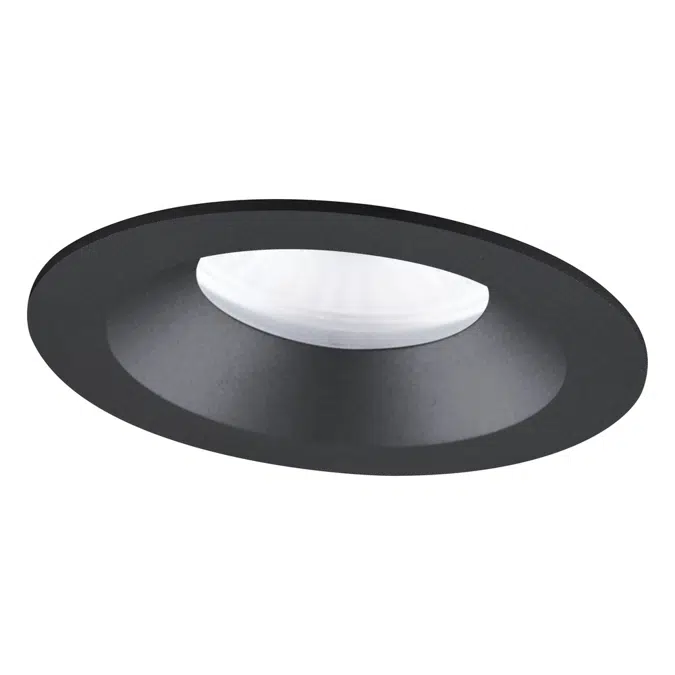

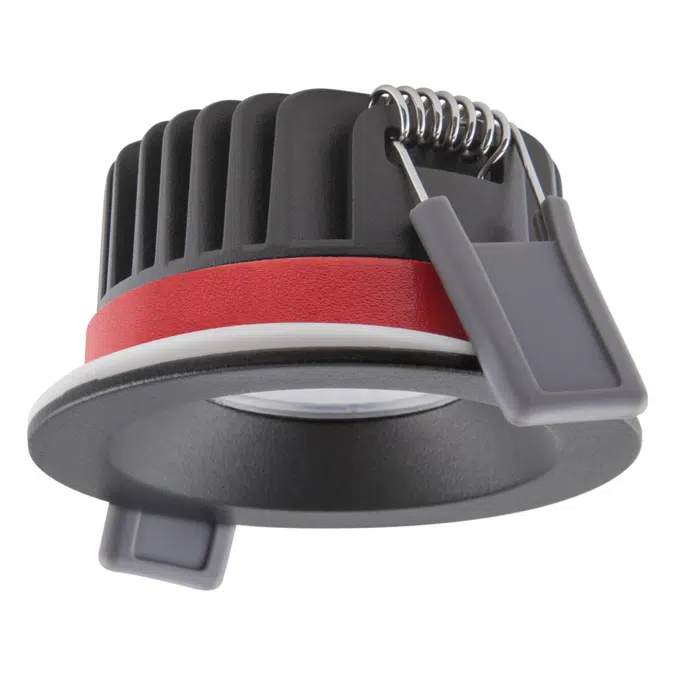

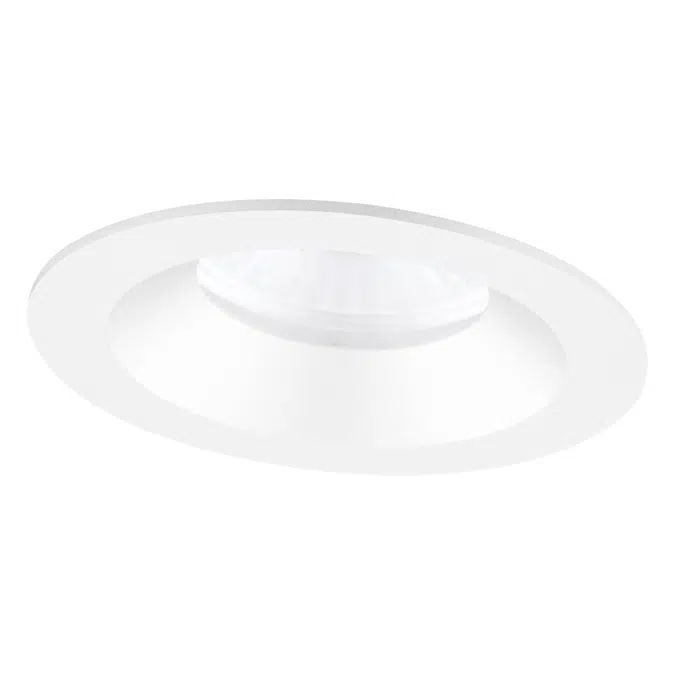

Recessed mounted spotlight for certain fire-resistant ceilings, fixed.

Product features

Color rendering index R_a= 90.

Type of protection

IP65 (room side).

Beam angle

36°.

Die-cast aluminum housing.

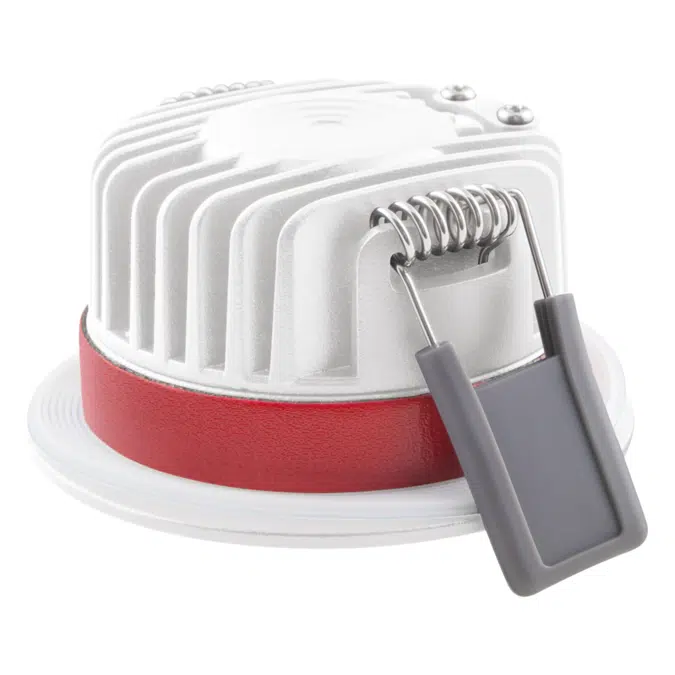

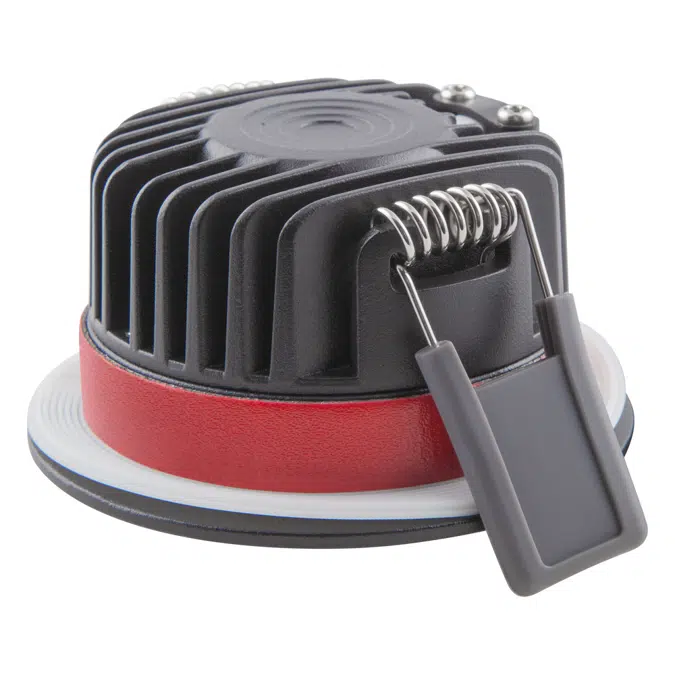

Thermal expansion ribbon already preinstalled.

Silicon-pad protected springs.

Dimmable (with many common dimmers, see also www.ledvance.com/dim).

Through-wiring possible.

Product benefits

Fire-rated

Airtight construction for reduced air-leakage and limited energy loss.

Powerselect

Brightness adjustment via dip switches on the driver.

Easy replacement of external driver thanks to plug with bayonet lock.

Easy installation and electrical connection thanks to tool-free electrical connectors.

SCALE Design – great appearance, valuable materials and small size fits into every surrounding.

5 years guarantee.

Areas of application

Direct replacement for recessed spotlights with halogen lamps.

Fire resistent ceilings.

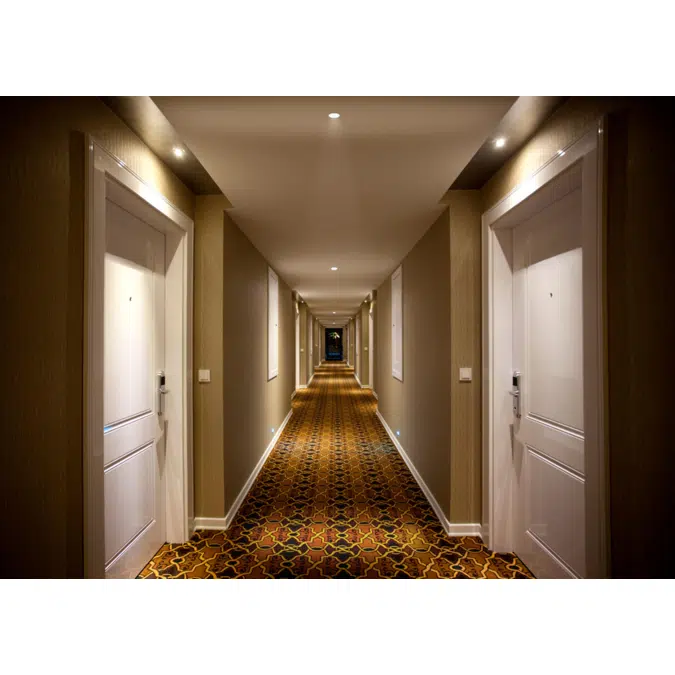

Hotel rooms and corridors.

Bars, restaurants.

Galleries, museums.

Equipment / Accessories

External control gear included with dip-switches to select power during installation.

Selected DALI 2.0 driver available as accessory.

For guarantee see www.ledvance.com/guarantee
For this product family multiple variants might exist with specific properties!
Please refer to the specification text where each product url is listed.
Contact: bim@ledvance.com

Specification

Please note that the provided Revit-file can be valid for a product family!
To access further product information, please follow the attached list of EAN-GTIN numbers.
Product EAN-GTIN list:

4058075799721 SP FP FIX P 8W 927 PS DIM IP65 WT LEDV
Catalog:

4058075799745 SP FP FIX P 8W 930 PS DIM IP65 WT LEDV
