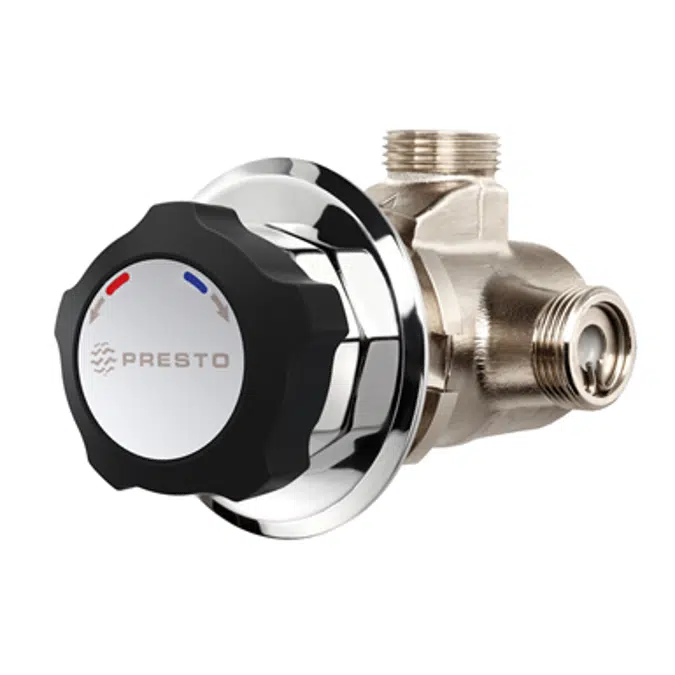

ALPA 80 Built-In exposed installation

Specification

Specification

• *Automatic closing: 30 +5s -10s. *Flow: 8 l/minute. *Male inlet and outlet 3/4. *Maximum panel thickness 11 mm. * High temperature adjustment sensitivity over 180º. *Push-button opening for selecting the water temperature and activating the tap opening. *Built-in retention valves that prevent the mixing of hot and cold water. *Chrome-plated brass body, push-button and internal parts in materials resistant to corrosion and limescale deposits. *Safety device that allows the installer to limit the temperature of the hot water to 40º C, in maximum opening position. *Built-in flow regulator. *Gross weight: 0.950 Kg. *(Models with drain valve do not contain a flow regulator). *Certified by AENOR with respect to EN816.

Technical specification

Technical specification

• Unique ref.35906
• Product familyFaucets
• Product groupBasins
• TypeObject (single object)
• Date of publishing2019-11-12
• Edition number1
• Height (mm)80
• Width (mm)90
• Depth (mm)126

Links

Links

• Product urlhttps://www.prestoiberica.com/producto/alpa-80-instalacion-panel/
• Product certificationhttps://www.prestoiberica.com/wp-content/uploads/2021/07/NF-Les-Robinets-Presto.pdf | https://www.prestoiberica.com/wp-content/uploads/2021/07/Resolucion-Generalidad-22.10.18-castella.pdf
• Technical descriptionhttps://www.prestoiberica.com/producto/Alpa-80-instalacion-panel/ficha-tecnica/

Related

Related

• Material mainChrome
• Designed inSpain
• Manufactured inSpain

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationSanitary Terminal
• UNSPSC namePlumbing fixtures
• UNSPSC code3018
• CSI MasterFormat 2014 Code22 41 00
• CSI MasterFormat 2014 TitleResidential Plumbing Fixtures
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
