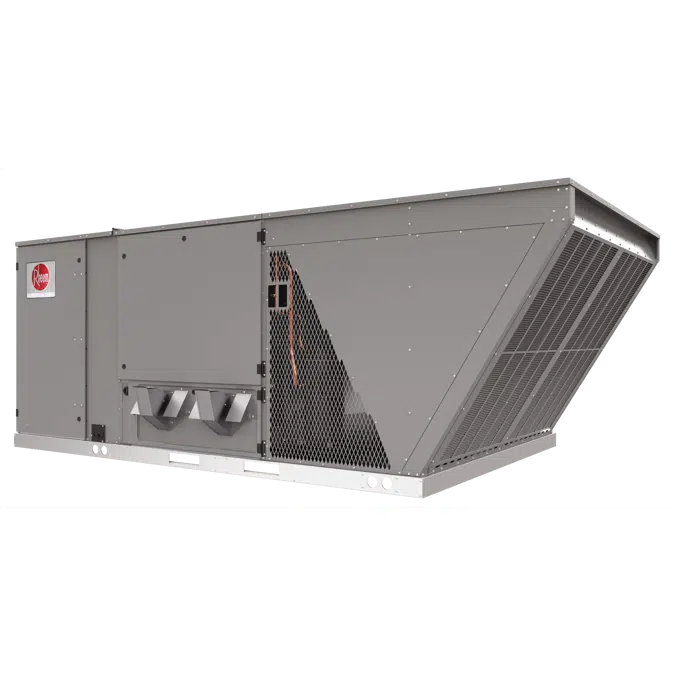

RGEHYB Resolute™ Line Classic® Series Packaged G/E

Resolute units come factory charged, wired, and run-tested, with dual-stage compressors and field-convertible airflow options for reliable performance. Noteworthy features include a slide-out indoor fan assembly, single-point electrical connections, and a 2-inch slide-out filter for added service and routine maintenance convenience. Available in nominal sizes ranging from 15 to 25 tons, Resolute is a great choice for a variety of commercial applications. Standout Features: - Hinged access panels, slide-out condensate drain pan, factory-installed economizers, and single-point wiring for faster, easier service, maintenance, and installation - Maximize humidity control without compromising the desired set point with HumidiDry®, delivering energy savings, performance, and comfort - PlusOne® Diagnostics ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet® Available power options: 208-230V / 3 phase / 60 Hz • 460V / 3 phase / 60 Hz Limited Warranty (Commercial Applications): Parts – 1 Year • Compressor – 5 Years • Standard Heat Exchanger – 10 Years • Stainless Steel Heat Exchanger – 20 Years. Additional extended warranty packages available through ProtectionPlus®. All units are factory run tested and shipped with R-454B refrigerant charge.

Specification

- Nominal sizes: 15-25 Tons
- Up to 10.8 EER / 14.0 IEER
- Two-stage cooling
- Coil Type: Fin and Tube Evaporator, MicroChannel Condenser
- Standard PlusOne® ClearControl™
- Optional PlusOne® HumidiDry®
- Refrigerant Type: R-454B with factory-installed sensor
