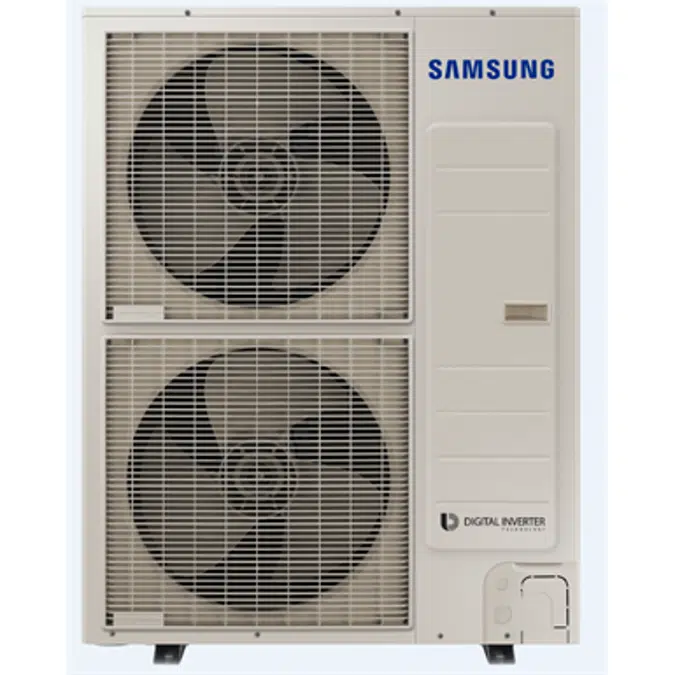

Air to Water MONO OUTDOOR (940x1420x330)

· Air-to-water heat pump for domestic hot water production and space heating/cooling · Connectable to Samsung tank integrated unit or to third party equipment thanks to the Mono control kit · Integrated plate heat exchanger · Maximum 65°C leaving water temperature by heat pump down to +10°C (max. 60°C down to -5°C) · Operation range down to -25 °C outdoor temperature · 4-Step Quiet mode · SCOP rating of A+++ · Inverter Twin Rotary outdoor unit compressor · 2-zone control, suitable for floor heating and radiators · SmartThings compatible with optional Wi-Fi Kit · Energy monitoring through touch controller · PV and Smart Grid ready

Specification

12.0 ~ 14.0 kW(C); 12.0 ~ 16.0 kW(H); R32 (GWP=675) ; (Φ, #, V, Hz) ,2,220-240,50 / 3,4,380-415,50

Technical specification

Unique ref.AE120JXYDEH-EU
Product familyOutdoor Unit
Product groupAir to Water Heating
TypeObject (single object)
Date of publishing2020-09-16
Edition number1
Height (mm)1420
Width (mm)940
Depth (mm)330

Links

Product urlhttps://www.samsung.com/uk/support/model/AE120JXYDEH/EU
Installation instructionshttps://partnerhub.samsung.com
Instruction videohttps://www.youtube.com/user/withDVM
Technical descriptionhttps://partnerhub.samsung.com

Material mainSteel
Material secondaryCopper
Designed inSouth Korea
Manufactured inSouth Korea
Weight Net (Kg)108

Classification

BIMobject CategoryHVAC - Air Conditioning
IFC classificationHeat Exchanger
ETIM CodeEC011583
ETIM NameAir-conditioning split system – single-split condensing unit, air-cooled
UNSPSC nameCondensing units
UNSPSC code40101704
Uniclass 2015 CodePr_70_65_03_02
Uniclass 2015 DescriptionAir cooled condensing units
CSI MasterFormat 2014 Code23 00 00
CSI MasterFormat 2014 TitleHeating, Ventilating, and Air Conditioning (HVAC)
OmniClass Number23-33 43 00
OmniClass TitleHVAC Condenser Units
CSI UniFormat II CodeD3090
CSI UniFormat II TitleOther HVAC Systems & Equipment
