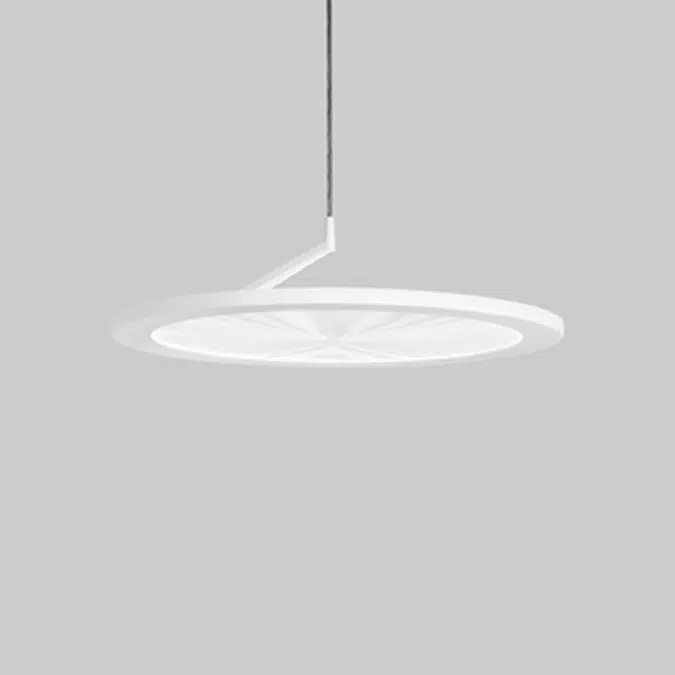

HELIOS suspended

HELIOS suspended

Archived

HELIOS suspended

Ring shaped luminaire housing in die-cast aluminium; surface powder coated in white or black; Suspended luminaire with 1500mm cable suspension, cable in a transparent feeder; electronic operating unit installed in the canopy; angled pendent with integrated cable management and adjustment mechanism for levelling; heat sink integrated into luminaire geometry for optimum thermal management and passive cooling of LEDs; direct/indirect light distribution by LGP body (Light Guiding Prism); side coupled light, directed up and down by laser engraving; optional direct light beam only, light control via highly reflective reflector material; Direct component: circular prismatic PMMA cover, completely homogeneous illumination; workplace light suitable for VDUs according to DIN EN 12464-1 (UGR < 19); energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI ≥ 80; min. 80 % of the luminous flux after 50000 hours; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP 20; PC I; DALI dimmable

Technical specification

Unique ref.HELIOS_suspended
Product familyLighting
Product groupCeiling | Suspended
TypeObject (single object)
Date of publishing2018-08-17
Edition number1
Height (mm)17
Width (mm)524
Depth (mm)524

Links

Product urlhttps://www.xal.com/en/products/detailFilter/XAL-VOL18-4;product_line__name=HELIOS%2520suspended
Installation instructionshttps://pim-api.xal.com/xalwebapi/v2/mountinginstructions/c14a3121-1b5e-4422-9936-f00182e02443
Technical descriptionhttps://www.xal.com/en/products/detailFilter/XAL-VOL18-4;product_line__name=HELIOS%2520suspended

Related

Material mainAluminium
Material secondaryAcrylic
Designed inAustria
Manufactured inAustria
Weight Net (Kg)5

Classification

BIMobject CategoryLighting - Ceiling Mounted
IFC classificationLamp
UNSPSC nameLighting Fixtures and Accessories
UNSPSC code3911
Uniclass 2015 CodePr_70_70_48
Uniclass 2015 DescriptionLuminaires, lighting track and lighting accessories
CSI MasterFormat 2014 Code26 50 00
CSI MasterFormat 2014 TitleLighting
OmniClass Number23-35 45 15
OmniClass TitleLamps
CSI UniFormat II CodeD5020
CSI UniFormat II TitleLighting & Branch Wiring
