Logis Single lever basin mixer 110 Fine CoolStart with pop-up waste set

Logis Single lever basin mixer 110 Fine CoolStart with pop-up waste set

Especificaciones

Surfaces: - 71254000 Chrome - 71254670 Matt Black Specification: • consists of: single lever basin mixer, waste set • ComfortZone 110 • projection: 121 mm • spout height: 110 mm • spray type: normal spray • maximum flow rate at 3 bar: 5 l/min • ceramic cartridge • temperature limitation adjustable • suitable for continuous flow water heaters • pop-up waste set G 1¼ • material waste set: synthetic • connection type: G ⅜ connections • connection dimension: DN15 • cold water in middle position

Especificaciones técnicas

Referencia71254000
Familia de productoBasin mixers
Grupo de productosLogis
TipoObjeto (objeto simple)
Número de edición1
Altura (mm)177
Ancho (mm)50
Profundidad (mm)146

Links

Instalación URLhttps://pro.hansgrohe.com/articledetail--71254000

Información relacionada

Material principalCromo
Material secundarioCromo
Diseñado enAlemania
Fabricado enAlemania
Peso Neto (kg)1

Clasificación

Categoría BIMobjectSanitarios - Grifos y llaves de baño
Clasificación IFC Válvula
Nombre UNSPSCSanitary ware
Código UNSPSC301815
Código Uniclass 2015Pr_60_75_08_54
Descripción Uniclass 2015Mixers
CSI MasterFormat 2014 Code41 14 33
CSI MasterFormat 2014 TítuloMixers
Número OmniClass23-31 11 00
Título OmniClass Faucets
CSI UniFormat II CódigoD2010
CSI UniFormat II TítuloPlumbing Fixtures

Productos similares

imagen para Tecturis S Single lever basin mixer for concealed installation wall-mounted with spout 22,5 cm

hansgrohe Tecturis S Single lever basin mixer for concealed installation wall-mounted with spout 22,5 cm

5.0 (7)

imagen para Talis M54 Single lever kitchen mixer 220, 1jet

hansgrohe Talis M54 Single lever kitchen mixer 220, 1jet

imagen para Tecturis S Single lever bath mixer floor-standing

hansgrohe Tecturis S Single lever bath mixer floor-standing

5.0 (6)

imagen para Tecturis E Single lever basin mixer 150 Fine CoolStart without waste set

hansgrohe Tecturis E Single lever basin mixer 150 Fine CoolStart without waste set

imagen para Tecturis E Single lever basin mixer 110 with bidette hand shower and shower hose 160 cm

hansgrohe Tecturis E Single lever basin mixer 110 with bidette hand shower and shower hose 160 cm

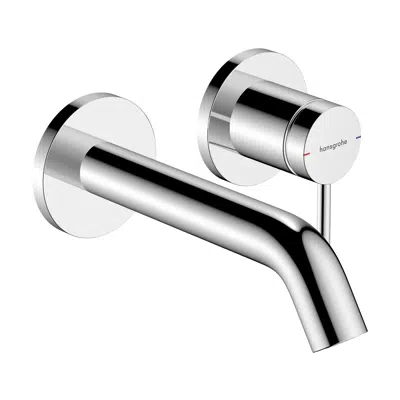

imagen para Tecturis S Single lever basin mixer for concealed installation wall-mounted with spout 16,5 cm
