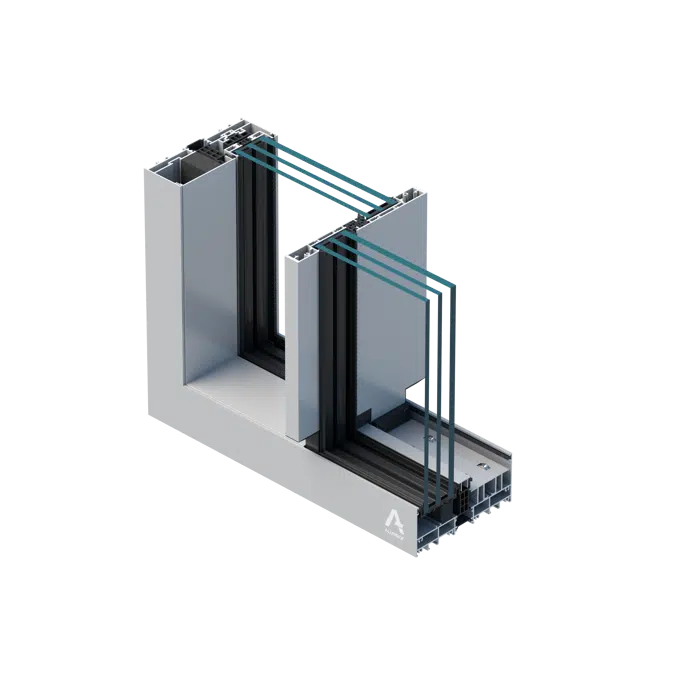

MB-Skyline Type R Sliding Door Corner 4-sash Slide - Fixed - Fixed - Fixed

The main features of the MB-SKYLINE TYPE R are the completely invisible profile of the door leaf, the slender mullion and the shallow frame, all of which will be appreciated at the very first glance. The leaves may be massive, but no great effort is required to slide them open and close and the mechanism that operates them is almost soundless. The maximum height for a structure based on the system is no less than four metres and, if the motor is fitted on the outside rather than being hidden, then the moving leaf can weigh as much as seven hundred kilos. This affords the possibility of designing spectacular glass walls. Doors created using the MB-SKYLINE TYPE R give a building an exceptional style and enhance the status of an entire development.

FEATURES AND BENEFITS:

• profiles with depths of 71 mm (leaf), 190 mm (2-rail frame)

• modern design and high aesthetics: the frame is concealed in the wall, in the floor and in the ceiling, the frame profile is fully aligned at the sides, the visible connection width of door leaves is 25 mm.

• door leaves up to 700 kg and up to 4 m high

• glazing options range from 52 to 60 mm

• 52 to 60 mm-thick triple glazing units

• door opens manually or automatically

• drives and control units are concealed in frame profiles

• can use an automatic unit mounted on the outside of the construction

• there are no restrictions to the width of the construction - doors can be connected to each other, forming a continuous glazing surface
• the system features a ‘zero mullion’, which makes it possible to use external venetian and roller blinds like the ALUPROF Skyflow and Skyroll
