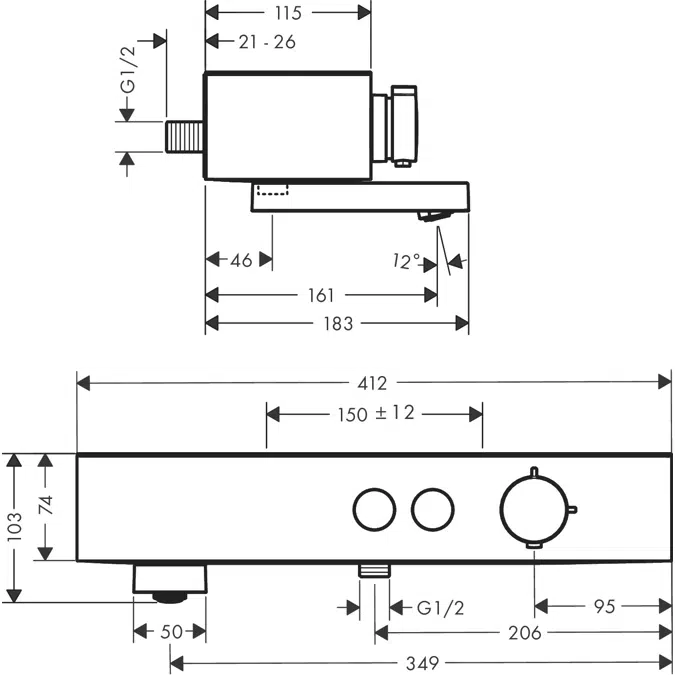

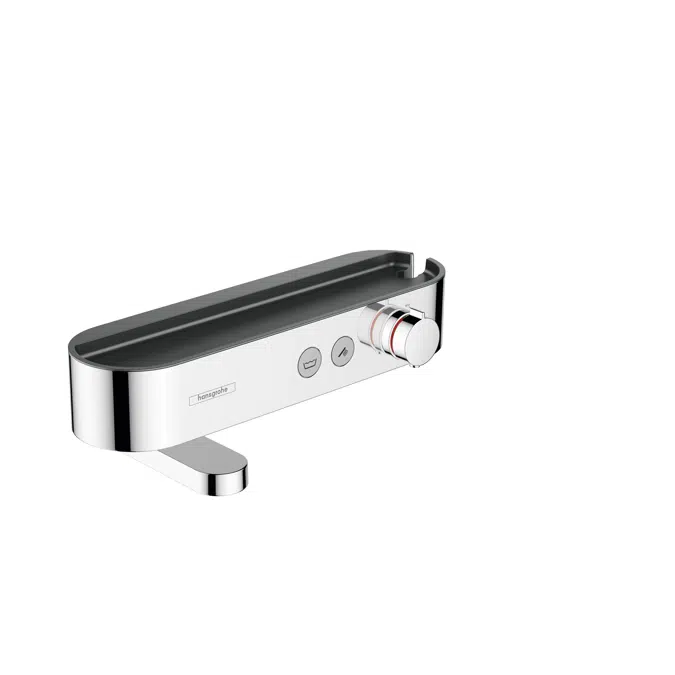

ShowerTablet Select Bath thermostat 400 for exposed installation

Tekniset tiedot

Surfaces: - 24340677 Matt Black - 24340707 Matt White - 24340007 Chrome Specification: • rotatable bath spout • the volume control regulates up to 30% of the water flow • 2 functions • simultaneous utilization of 2 functions • temperature and volume control • Select push-button on/off control for 2 outlets • centre distance: 150 ± 12 mm • CoolContact thermostat: Prevents the housing from heating up, making showering even safer • maximum flow rate at 3 bar: 18,5 l/min • flow rate for bath spout at 3 bar: 18,5 l/min • flow rate of hand shower at 3 bar: 16 l/min • safety lock at 40 °C • temperature limitation adjustable • with isolated water conduction • non-return valve • protected against backflow, according to DIN EN 1717 • with silencer • suitable for continous flow water heaters • shelf made of plastic • shelf finish: graphite • connection type: G ½ • connection dimension: DN15 • dirt filter included • Thermostat is delivered with buttons hand shower and bath tub
