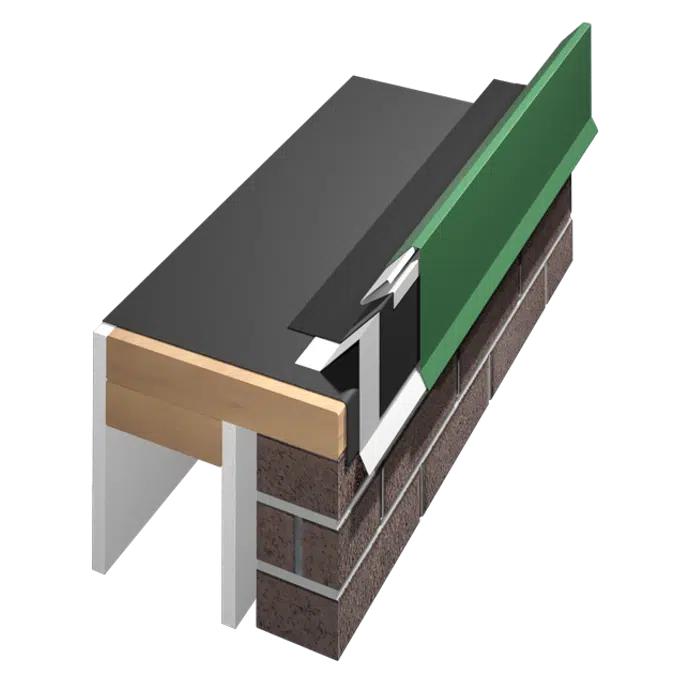

Perma-Tite System 200 Fascia (Single-Ply, Snap-On)

Testing

• Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code.
• Factory Mutual approved for wind uplift protection.
• Miami-Dade Approved (No. 23-0912.08 12/11/28) to comply with the “High Velocity Hurricane Zone of the Florida Building Code.”

Wind Warranty

• The 20-Year, 120 MPH Perma-Tite Wind Warranty is available on orders to meet a project's specification. It provides a maximum of 20 years, 120 MPH coverage for the repair or replacement of any portion of the roof edge system that has failed due to a defect in Metal-Era supplied materials.

Finish Warranty

• 30-Year Kynar 500® Finish Warranty is included on coil-coated standard colors.
• Custom post-coated Kynar 500® colors are available with an included 10-Year Kynar 500® Finish Warranty or a 20-Year Kynar 500® Finish Warranty is available upon request.
• Anodized finishes come with a 5-year warranty (no warranty available for coil anodized finishing; Post-coat/Class 1 Batch Anodized is available with a 5-year warranty with an option to increase to a 10-year warranty for an upcharge).
• Please email Technical Services regarding pricing for Anodized finishes

Standard Sizes

• 5 ¼"
• 6 ¾"
• 8 ¼"
• 9 ¾"
• 11 ¼"
• 12 ¾"

Cover Materials

• 24 ga steel
• 22 ga steel
• .040" aluminum
• .050" aluminum
• .063" aluminum

Colors

Choose from a wide range of standard colors and finishes that meet your job requirements.

Efficient Design

• snap-on design is provided in 12'-0" lengths for quicker installation and lower labor costs.
• The waterdam is provided with pre-punched, slotted holes to allow for proper thermal movement of the materials and ensure correct fastener placement and spacing.
• Factory fabricated miters, scuppers and drainage accessories provide a cleaner, more aesthetically pleasing appearance. This eliminates the need for field fabrication, providing time and labor savings.
• 4" long, 24 ga. spring clips are placed 4' o.c. to provide for more positive attachment ensuring extra stability for the system. All splice plates and fasteners are also included and will arrive to the job site with the product.
• The concealed splice plate design features a raised stop that prevents splice plate migration under the fascia panels. This design creates a more aesthetically pleasing design compared to traditional cover plates or lap joints at the seams.
• Radius and specially fabricated products are available to meet the unique needs of each project.

Competitively Priced

The installed cost rivals even light gauge roof edge systems fabricated locally or in a roofer’s shop.
