Itaca KB
| No d'article: | itaca_kb |
|---|---|
| Fabricant: | Fondital |
| Famille de produits: | Boilers |
| Groupe de produits: | Wall Mounted Condensing Boilers |
| Largeur (mm): | 580 |
| Hauteur (mm): | 861 |
| Profondeur (mm): | 402 |
| Date de publication: | 2019-09-17 |
| Numéro d'édition: | 1 |
| Type: | Objet (objet simple) |
Téléchargements
ITACA KB

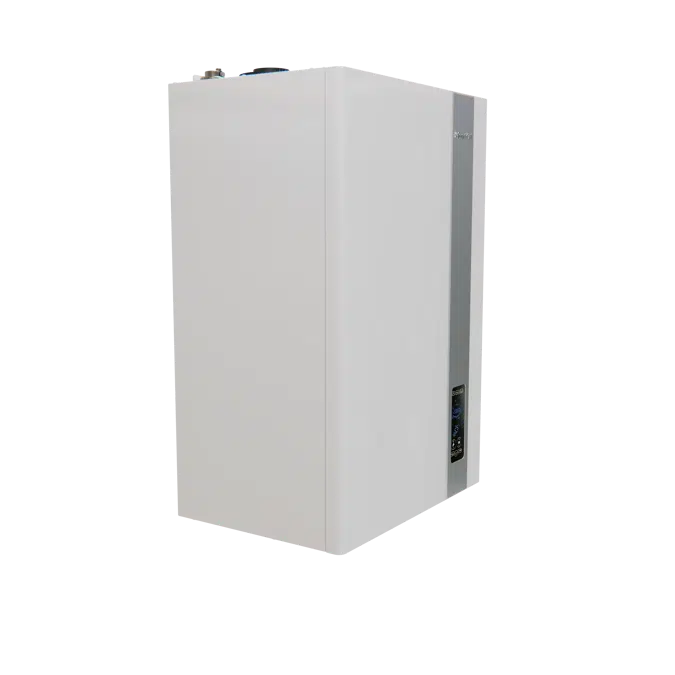

Itaca KB is a wall-hung condensing boiler for heating only, with storage tank and 45-litre stainless steel water heater for domestic hot water. The boiler uses condensing technology, which allows it to lower consumptions, boost performance, and reduce emissions of pollutants.
PLUS
- Modulation ratio 1:9

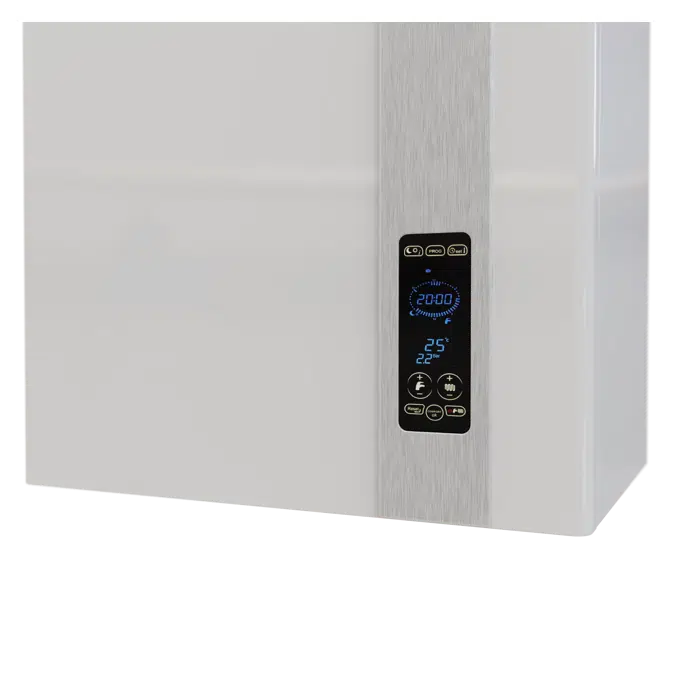

- Touch screen user interface
- Control of 2 heating zones fitted as standard via temperature probes
- Time control of water heater heating
- 45-litre stainless steel water heater
- Ready to be connected to a recirculation system
FEATURES

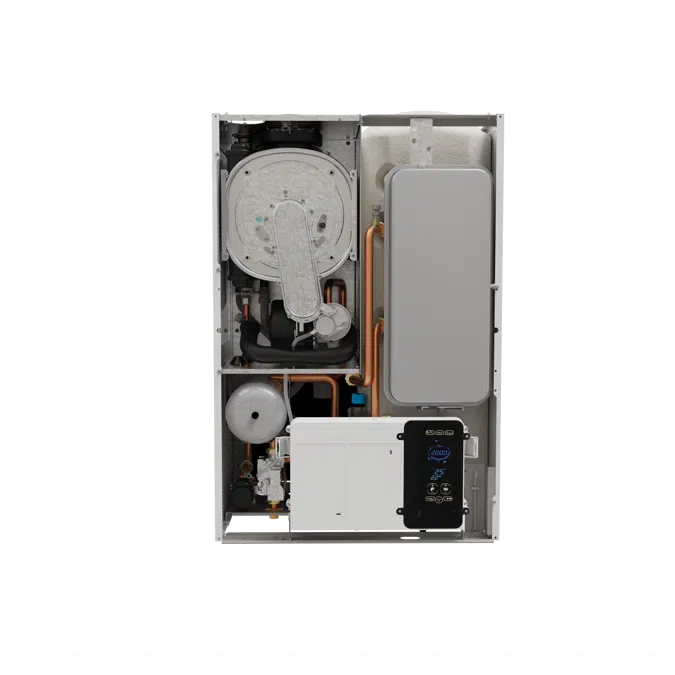

- Thermopolymer-covered stainless steel heat exchanger
- Fully pre-mixed burner
- Modulating gas valve with constant air-to-gas ratio
- Variable-speed combustion fan
- Modulating pump with air-purging device
- 10-litre heating expansion vessel
- Installation flexibility thanks to IPX5D electrical protection degree
- Efficiency rating according to 92/42/EEC: ★★★★
- NOx emission class (EN 297):5
- 45-litre stainless steel water heater with thermal insulation
- Ready for connection to a GSM modem for remote switching on and off and malfunction alarm (optional equipment)
- Multifunctional relay for connection to systems with zone valves or to solar systems or to remote boiler shutdown alarms
- DHW “Comfort” function: ★★★
PREPARED FOR CONNECTION TO
- External probe
- Open Therm Remote Control
- Zone management board for high and low temperature heating
- 2 ambient probes
| URL des données produits: | https://www.fondital.com/ww/en/itaca_kb_high_efficiency |
|---|---|
| Instructions d'installation: | https://www.fondital.com/media/files/attachments/4438_IST_ITACA_KB_ERP_GAR... |
| COBie Product Data Sheet: | |
| Certification / label du produit: | |
| Description technique: | https://www.fondital.com/media/files/attachments/4438_IST_ITACA_KB_ERP_GAR... |
| Vidéo du produit: | |
| Code GTIN: |
Le code QR contient l'adresse URL ci-dessous et vous conduira à cette page si vous le scannez avec un smartphone
https://www.bimobject.com/fr/fondital/product/itaca_kb
| Materiau principal: | Aluminium |
|---|---|
| Materiau secondaire: | |
| Créé en: | Italy |
| Fabriqué en: | Italy |
| Catégorie de BIMobject: | CVC - Chaudières |
|---|---|
| Classification IFC: | Boiler |
| Nom UNSPSC: | Boilers |
| Code UNSPSC: | 401020 |
| Uniclass 1.4 Code: | L7521 |
| Uniclass 1.4 la description: | Boilers, central heat generators |
| Uniclass 2.0 Code: | PR-60-08-36 |
| Uniclass 2.0 la description: | Condensing Boilers |
| Uniclass 2015 Code: | Pr_60_60_08 |
| Uniclass 2015 la description: | Boilers |
| NBS Reference Code: | 60-08-36 |
| NBS Reference la description: | Condensing Boilers |
| CSI MasterFormat 2014 Code: | 23 52 16 |
| CSI MasterFormat 2014 Title: | Condensing Boilers |
| Numéro OmniClass: | 23-33 11 13 |
| Titre OmniClass: | Condensing Boilers |
| CSI UniFormat II Code: | D3020 |
| CSI UniFormat II Title: | Heat Generating Systems |
Ce produit est disponible en:
Africa
- Algeria
- Libya
- Morocco
- Reunion
- South Africa
- Tunisia
Asia
- Armenia
- Azerbaijan
- China
- Georgia
- Hong Kong
- Kazakhstan
- Kyrgyzstan
- Mongolia
- Pakistan
- Turkmenistan
- Uzbekistan
Europe
- Åland Islands
- Albania
- Andorra
- Austria
- Belarus
- Belgium
- Bosnia and Herzegovina
- Bulgaria
- Croatia
- Cyprus
- Czech Republic
- Denmark
- Estonia
- Faroe Islands
- Finland
- France
- Germany
- Gibraltar
- Greece
- Guernsey
- Hungary
- Iceland
- Ireland
- Isle of Man
- Italy
- Jersey
- Latvia
- Liechtenstein
- Lithuania
- Luxembourg
- Macedonia (FYROM)
- Malta
- Moldova
- Monaco
- Montenegro
- Netherlands
- Norway
- Poland
- Portugal
- Romania
- San Marino
- Serbia
- Slovakia
- Slovenia
- Spain
- Svalbard and Jan Mayen
- Sweden
- Switzerland
- Ukraine
- United Kingdom
- Vatican City
Middle East
- Egypt
- Iran
- Iraq
- Israel
- Jordan
- Lebanon
- Palestine
- Saudi Arabia
- Syria
- Turkey
- United Arab Emirates
North America
- British Virgin Islands
- Mexico
- Panama
- Saint Pierre and Miquelon
- United States
Oceania
- Australia
- New Zealand
South America
- Argentina
- Bolivia
- Brazil
- Chile
- Colombia
- Ecuador
- Paraguay
- Peru
- Uruguay
- Venezuela
BIMobject SEEK Properties
HVAC - Boilers
| Nom | Valeur |
|---|---|
| Heat Flow Rate | 24 ; 32 kW |
| Installation Method | Wall |
| Material | Aluminium |
COBie UK
UK.COBie.Type
This property set allows objects to be COBie UK BIM Level 2 classified
| Nom | Valeur |
|---|---|
| Material | Aluminium |
