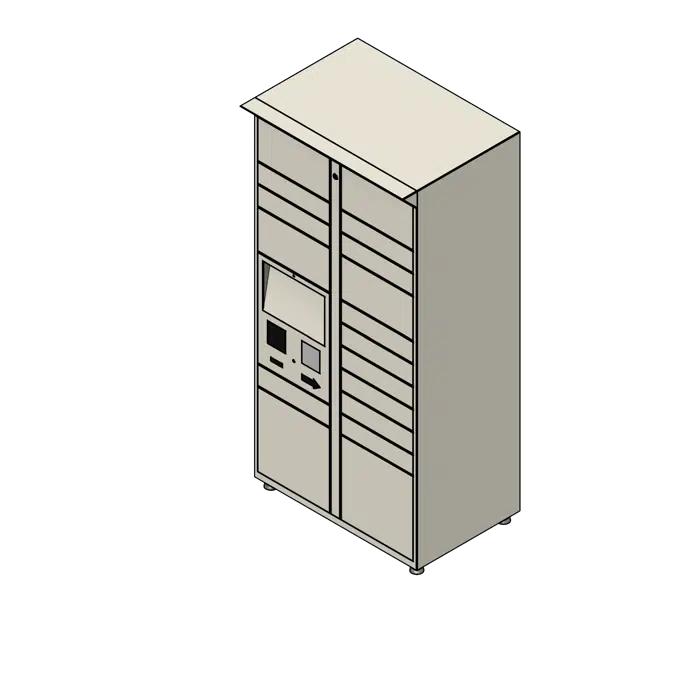

Smart Parcel Metal Locker

Smart Parcel Locker

Intelligent lockers are incredibly useful solutions for distributing mail and packages, providing a secure location for customers to retrieve orders, secure and check out IT assets, or as shared-use lockers. Lockers can be easily accessed by entering a code on the touchscreen or scanning a phone or other RFID device, guaranteeing that the items inside are picked up by the intended user.

Standard sizes
Widths: 550 mm, 1000 mm
Depths: 635 mm
Heights: 2024 mm

Software-controlled lockers notify users with a text message or app notification that their package is ready for pick up. The user then uses the app or enters the supplied code on the touchscreen, and the locker assigned to them opens automatically
Use a controller unit and a mix of adder units to add lockers of various sizes to your system
Expand your systems versatility by adding temperature controlled locker units

To use this family, insert the model from the Fetch app and then use the type selector to choose the desired configuration. The catalog name details the number of doors, whether the unit is a control unit (with console) or adder (without console), and the number of small, medium, and large doors.

Specifikáció

Construction
- 1.5 mm, cold rolled, fully welded steel construction
- 550 pounds empty weight
- Auto-open doors controlled by console
- Locking mechanism automatically activates when the door is manually closed
- Contactless operation with included smartphone app
- Each locker includes a weight sensor to verify the movement of packages
- Weather shelter and night lamp available by selecting Outdoor Unit
- Anti-corrosive powder coating inside and out
- Standard finish: RAL 7040 - "Window Grey"
- Custom colors available
- Opaque or transparent doors available on request
Electrical
- 110 V @15 amps Standard Supply (US)
- Additional units connected with RS 485A
- Internet connectivity required, ethernet reccomended
- AMOLED tablet console with IR sensors and bar code scanner
- Compatible with 1D and 2D bar codes, and QR codes
Software Integrations
- Yardi
- SFTP
- ResMan
- SC Logic
- Polaris
- SCP
- BOPIS
- Servicen W
- Help Now+
- Brynka
- LDAP
- Others with integrations and API

Műszaki specifikáció

Egyedi azonosítóSSG_Locker_Smart_Parcel_PCS
TermékcsaládEducation
TermékcsoportFlex Space, Classroom, Lockers, Casework
TípusObjektum (egy termék)
Megjelenés dátuma2023-10-21
Verziószám1

Linkek

Termékadatlaphttps://fetchbim.com/product/791/ssg-locker-smart-parcel-pcs
Műszaki leíráshttps://app.fetchbim.com/Family/fb9c2b84-bd3c-45b1-9ecd-926bcebed50e/File/PDF-SpecManual

Kapcsolódó adatok

Elsődleges anyagPorral bevont acél

Besorolások

BIMobject kategóriaBútor - Polcok és tárolóelemek
IFC besorolásBútor
CSI MasterFormat 2014 kód10 55 26
CSI MasterFormat 2014 névParcel Lockers
