Envisor Unit Attached HVAC Enclosure

Architectural HVAC Screening & Enclosure Panels

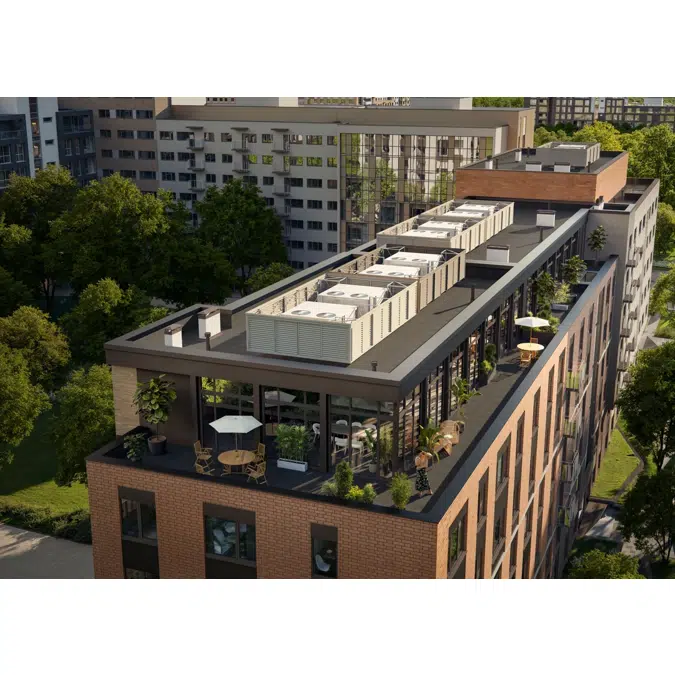

Transform unsightly rooftop and ground-level mechanical equipment with Acrylicap® ABS—a high-durability architectural screening system engineered by CityScapes. Designed to conceal outdoor HVAC units, ductwork, and mechanical utilities, Acrylicap® ABS screens combine lightweight structural integrity with long-term weather resistance.

Built on a color-matched ABS core with a dual-sided acrylic lamination, these non-corrosive enclosure panels deliver maximum UV protection and superior color retention without fading or degrading over time.

Key Performance Features

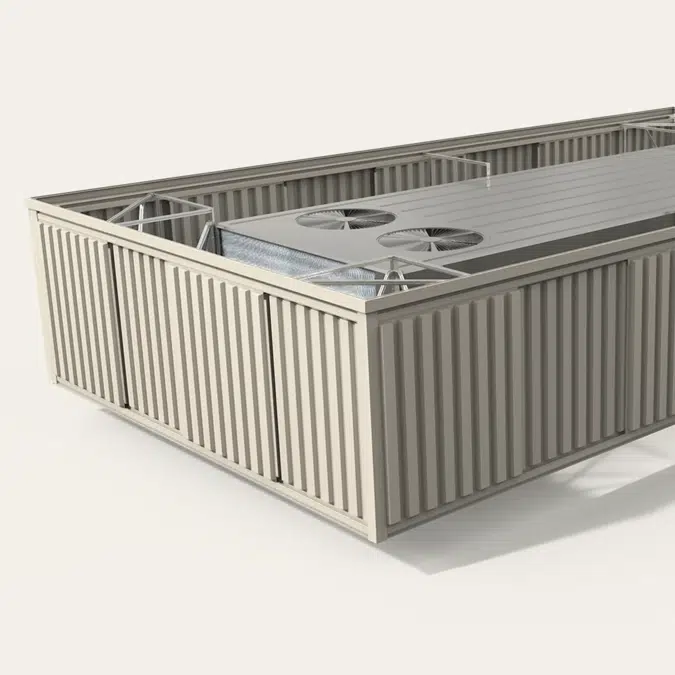

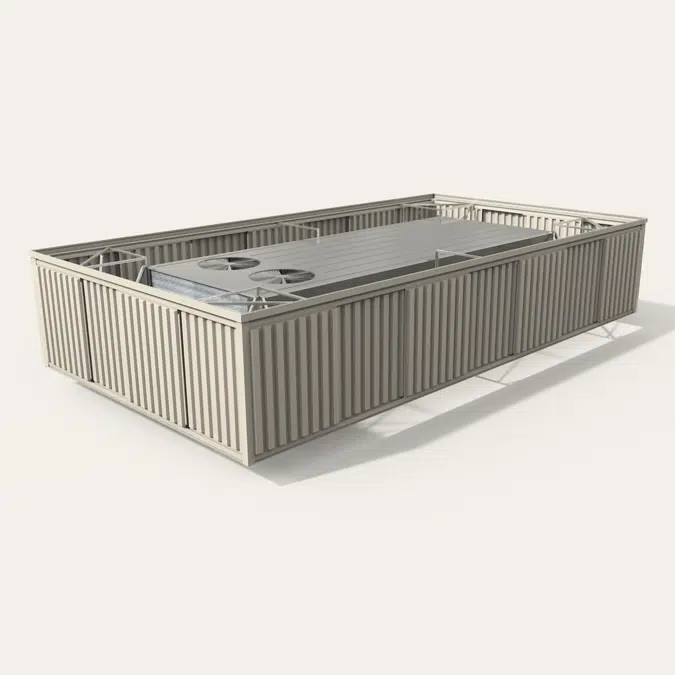

• Zero Rooftop Penetration: Unit-attached HVAC enclosure screens connect directly to the equipment or frame, eliminating the need to penetrate roof membranes, preserving factory warranties, and preventing potential leak paths.
• UV & Weather Shield: Dual-laminated .187" acrylic-capped ABS sheet provides a heavy-duty barrier for rooftop screens against UV degradation, cracking, and severe weather exposure.

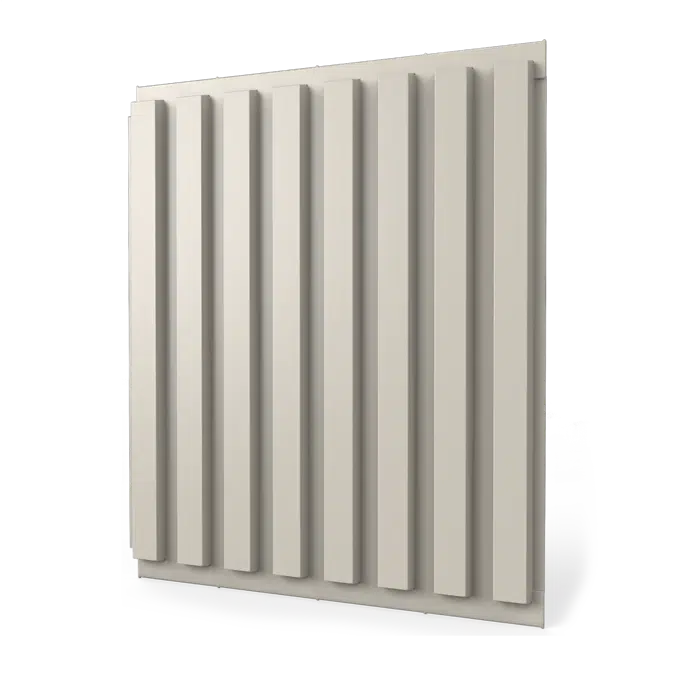

• Modular Architectural Coverage: Standard screen panel widths of 45" with heights of 35", 52", and 70". Interlocking modular construction allows vertical stacking to achieve custom equipment screen heights.
• Structural Reinforcement: Heavy-duty aluminum support rails are mechanically riveted to 52" and 70" screening panels for elevated wind-load performance and structural rigidity.
• Lightweight Efficiency: Weighing approximately 1.1 lbs/sq ft, screen panels minimize dead load on rooftops and ground structures while easing site handling and installation.
• Seamless BIM Integration: Specifiable modular screening components designed for fast placement in Revit, ArchiCAD, and 3D architectural models.
• BABAA Certified: Fully compliant with Build America, Buy America Act requirements for federal and public project specifications.
